Description

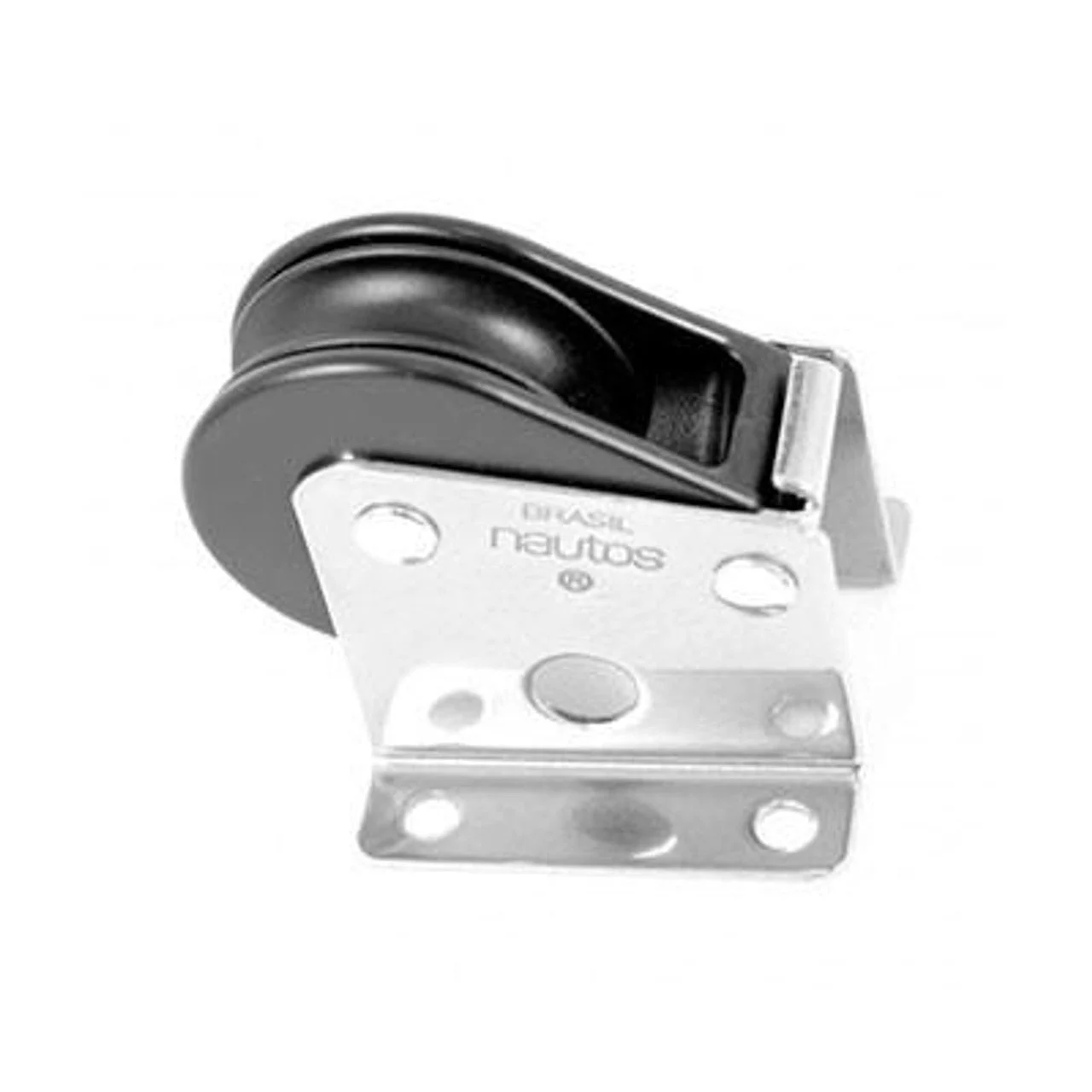

Single Vertical Lead

Conventional ball bearing design with long lasting characteristics

Optional with aluminum sheave on roller bearings for higher loads.

Technical Description Features Metric American Height 2.17 in 55 mm Length 2.09 in 53 mm CC Holes 1.57×1.38 in 40X35 mm Width 2.17 in 55 mm Line Up To 0.39 in 10 mm Sheave Diameter 1.54 in 39 mm Working Load 330 lb 149.69 Kg Breaking Load 2000 lb 907.18 Kg Weight 0.13 lb 59.53 g
