Description

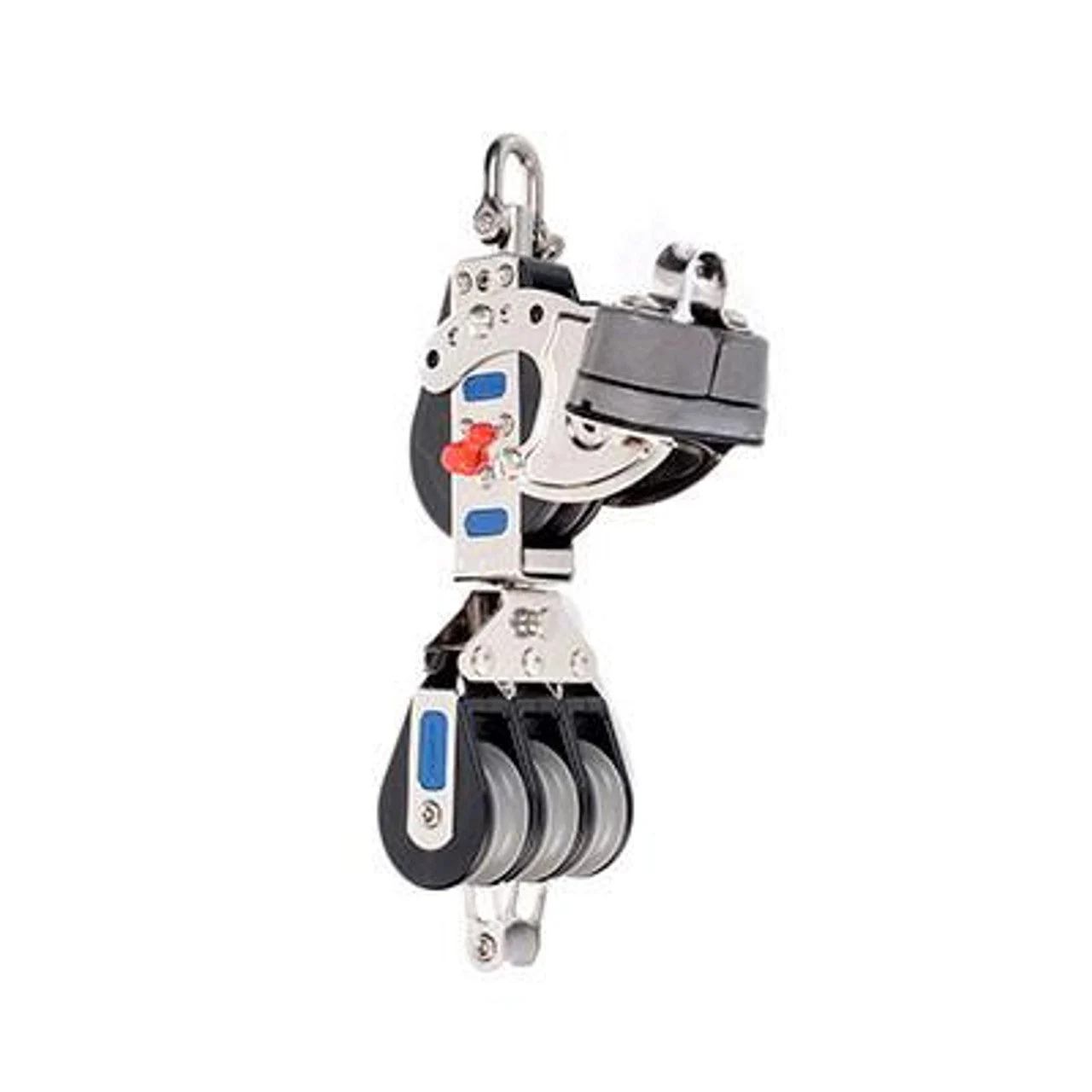

Base ratchet block with triplE 39 mm with becket block

Conventional ball bearing design with long lasting characteristics.

Optional aluminum sheave on roller bearings for higher loads.

Composite sheave and stainless steel 316

Technical Description Features Metric American Length 9.25 in 235 mm Width 3.74 in 95 mm Max . Rope Diameter 0.39 in 10 mm Sheave Diameter 2.24 – 1.54 in 57 – 39 mm Working Load 900 lb 408.23 Kg Breaking Load 2420 lb 1097.69 Kg Weight 1 lb 453.59 g
