Description

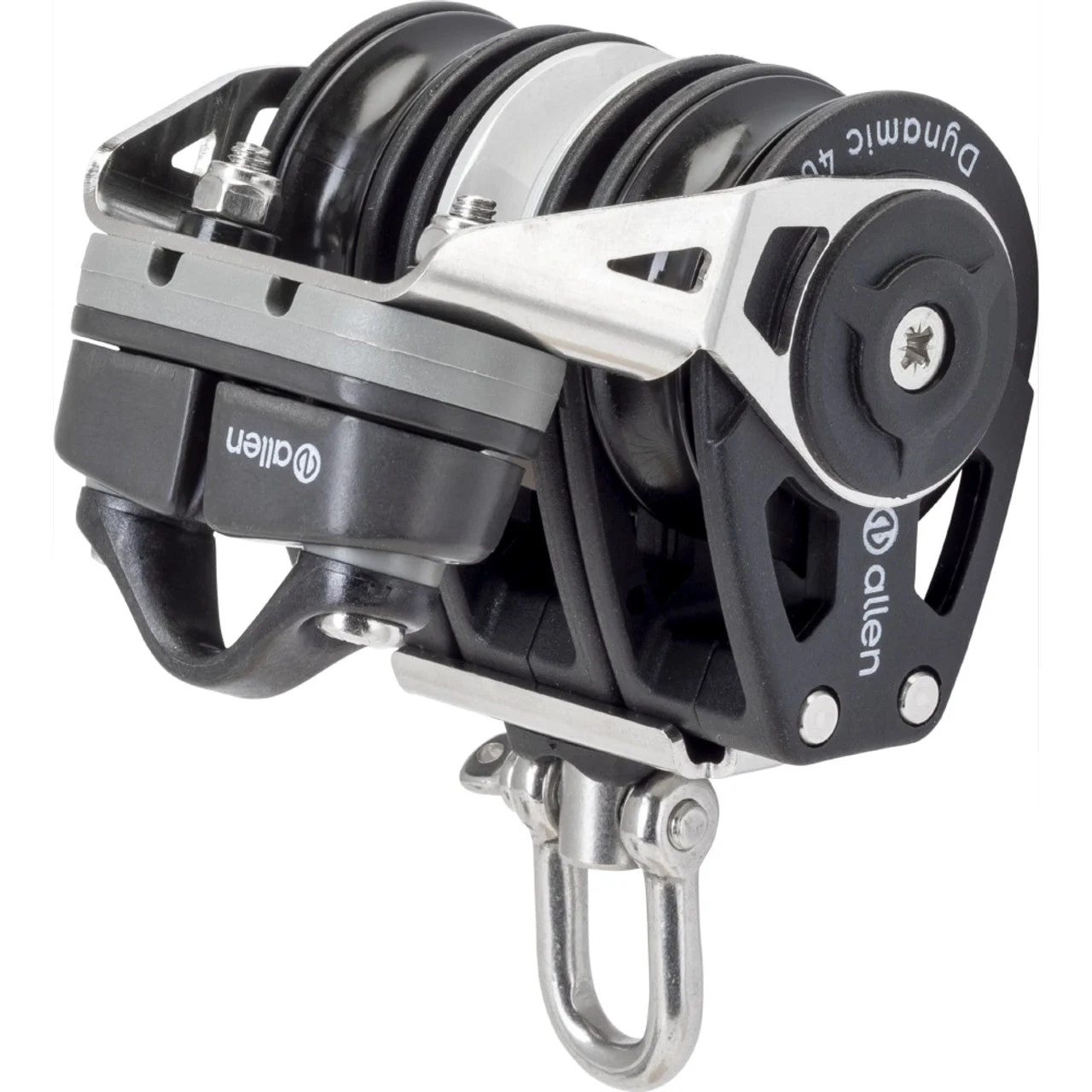

40mm Triple Block with Ratchet and Adjustable Cam Cleat.

Made from high-strength, lightweight glass-loaded nylon and featuring Allen??s dynamic bearing technology for a high-performance block suitable for keelboats and dinghies.

This 40mm triple block is a great choice for catamaran mainsheets or keelboat backstay systems.

Bearings: Dynamic blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. The ball bearings are caged for further friction reduction. These features provide a superior load-carrying ability and longevity when compared to other bearing systems.

Swivel Head: Featuring a 360-degree swivel head with a 5mm shackle. The shackle is load rated higher than the block, so although it might look small, it??s plenty strong enough!

Swivel Lock: This block comes with a swivel lock moulding. The moulding allows the shackle to be locked in 90-degree orientations. It can be removed by undoing the shackle and removing it from the swivel pin.

Ratchet: Featuring the sheave and mechanism from the Pro-Ratchet 40 for additional line-holding power. This ratchet is not switchable so it is always on.

Adjustable Cam Cleat: The angle of the cam cleat arm can be adjusted by simply undoing the plastic plates on either side of the block.

Cam Cleat: This block comes with the small A..77 cam cleat.

Technical Description Features Metric American Sheave Diameter 1.57 in 40 mm Shackle Pin 0.20 in 5 mm Lenght 3.63 in 92.2 mm Max Line Diameter 0.24 in 6 mm Breaking Load 3086.47 lb 1400 kg MWL 396.83 lb 180 kg Weight 0.53 lb 241 g
