Description

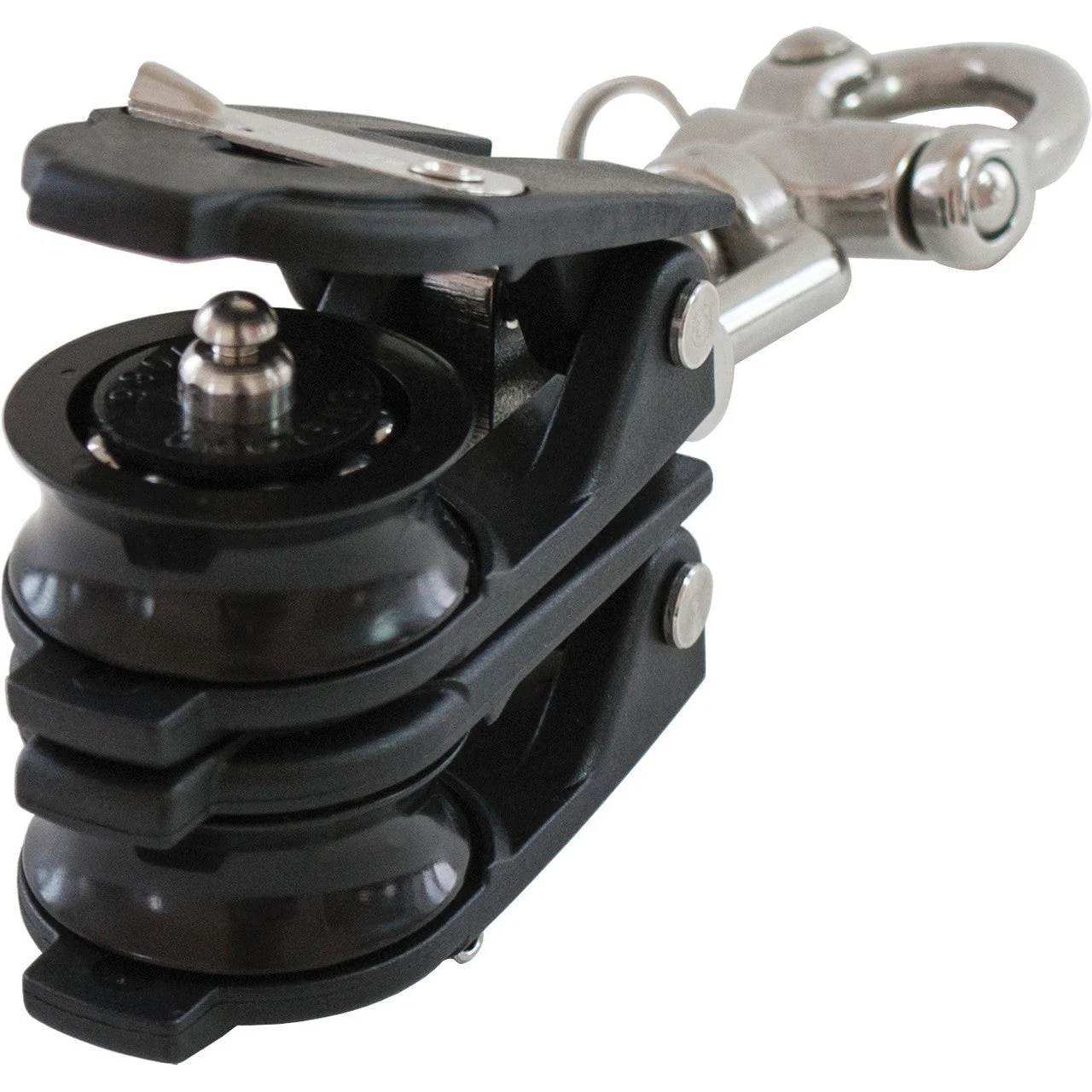

Back To Back Snatch Blocks With Swivel

A snatch block is a type of pulley commonly used to redirect the path of a line or increase the purchase system. It??s designed to be easily attached to a line without having to reeve (thread) the line through the pulley. This is achieved with the opening side cheeks.

Snatch blocks are super versatile and easy to use. Making them a great addition to the tool kit so you can quickly and easily rig up a new system without having to re-thread lines.

Dynamic Bearings Twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.

Locking Mechanism (keeper) The spring-loaded metal slider locks onto the central axle of the block. It can be unlocked with one hand, allowing you to open the side cheek and install onto a line. Both snatch blocks feature this mechanism.

Snap Shackle This snatch block features a high-load swivelling snap shackle.

Technical Description Features Metric American Sheave DIameter 1.57 in 40 mm Length 2.99 in 76 mm Line Diameter 0.24 – 0.39 6 – 10 mm Breaking Load 1543.24 lb 700 kg Max Working Load 440.92 lb 200 kg Weight 0.82 lb 373 g
