Description

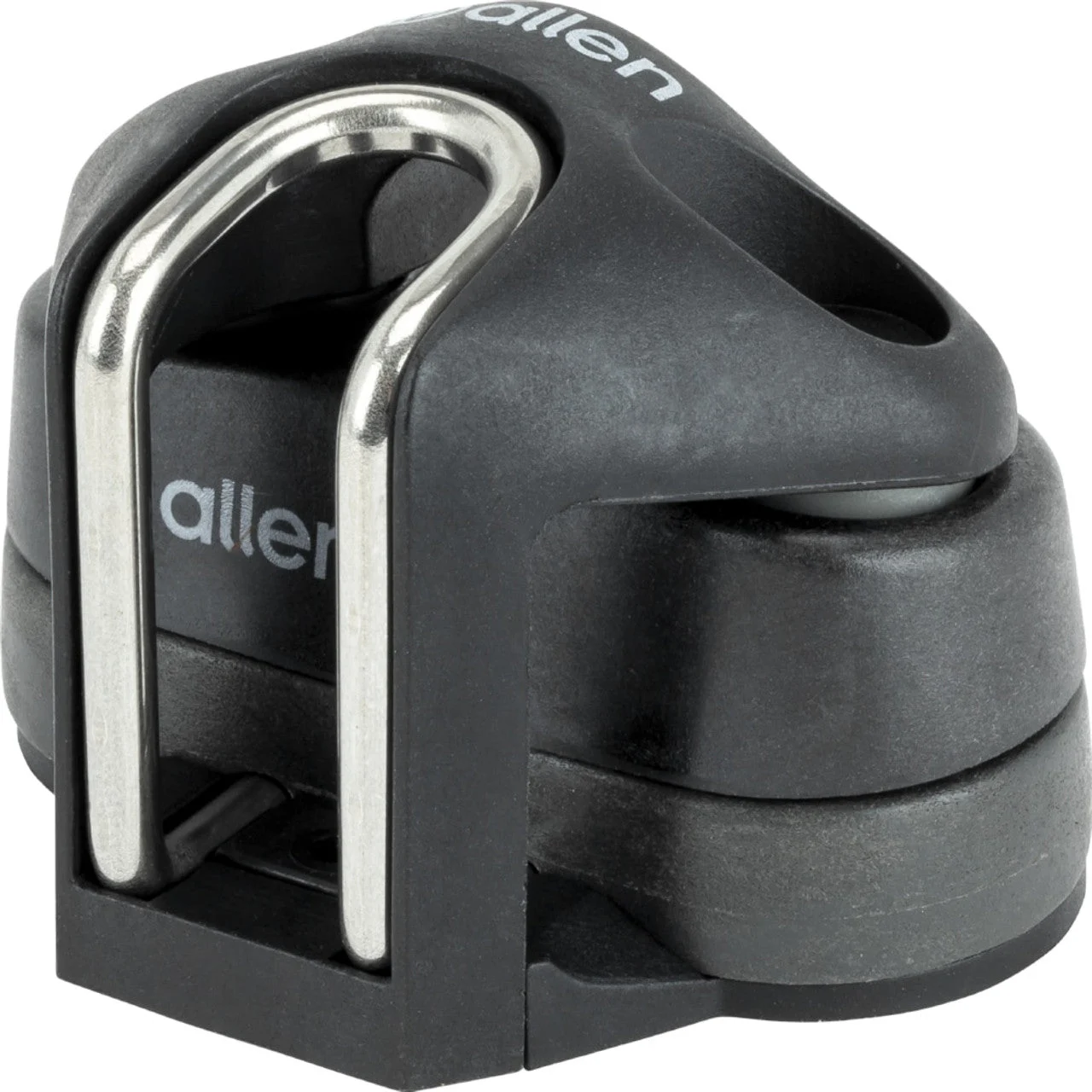

Small Allenite Cam Cleat With Mega Pro-Lead.

Allenite Plain Bearing Cam Cleats feature the same jaw profile as the aluminium version, but the jaws and base are moulded from a proprietary material developed specifically for low weight and good heat dissipation to increase wear resistance when compared to standard acetals. The removal of ball bearings offers a further weight reduction.

The Allenite cam cleat offers a good weight saving over the aluminium version.

Allenite cam cleats are designed as a cheaper alternative for low load applications.

The Mega Pro-lead is an acetal cage with an additional wire frame that fits around the exit side of the cam cleat. Designed to keep the rope running centrally through the cam cleat whilst allowing for adjustment of the rope at any angle.

Technical DescriptionFeaturesMetricAmericanFixing Hole Centres1.10 in28 mmFixing Hole Diameter0.15 in4 mmHeight1.53 in39 mmMaximum Line Diameter0.07-0.23 in2-6 mmMaximum Working Load176.37 lb80 KgWeight0.10 lb45 g
