Description

Ancor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.

Ancor 312603 Attributes

• Type: 3/8 Inch Ring Terminal
• Gauge Wire: 12-10 Gauge
• Color: Silver End With Yellow Boot
• Material: Copper
• Quantity: Pack Of 3

Ancor 312603 Features & Benefits

• Tinned For Corrosion Resistance
• Pure Copper For Maximum Current Flow
• Brazed Seam For Maximum Strength
• Heat Activated Adhesive Built Into The Sleeve Of The Heat Shrink Tubing
• Shrinks To Form A Water Tight Seal And Ultimate Vibration And Strain Relief
• No Supplier Warranty

Ancor 312603 Technical Bulletins

• 313938-9193.pdf

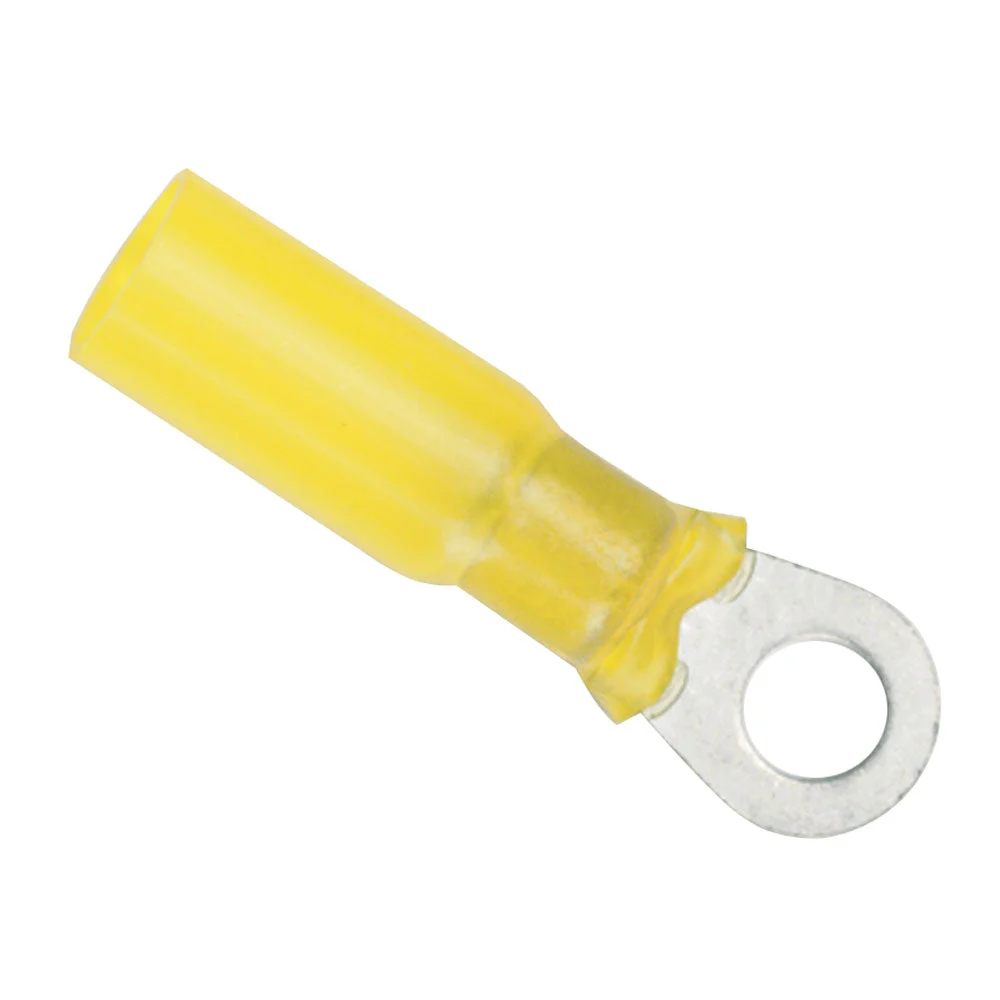

12-10 Gauge – 3/8″ Heat Shrink Ring Terminal – 3-Pack
Gauge Size: 12-10
Screw Size: 3/8″
Quantity: 3
Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
• Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
• UL Listed and CSA Recognized
• Highest shrink ratio – shrinks to 1/3 original size
• Shrinks at 257° F/125° C
• Operating temperature range 40° C to 110° C
• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
• Shrinks to form a water tight seal and the ultimate vibration and strain relief
• Tinned for corrosion resistance
• Pure copper for maximum current flow
• Brazed seam for maximum strength

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor heat shrinkable ring terminal has a heat activated adhesive built into the heat shrinkable sleeve. When heated to 275°F (135°C), the connector shrinks to…
SKU: NVN-55438
MPN: 312603
UPC: 091887316209
