Description

Ancor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.

Ancor 311299 Attributes

• Type: #8 Ring Terminal
• Gauge Wire: 16-14 Gauge
• Color: Blue/ Silver
• Material: Tinned Copper Connector/ Heat Shrink Insulation
• Quantity: Pack Of 100

Ancor 311299 Features & Benefits

• Tinned For Corrosion Resistance
• Pure Copper For Maximum Current Flow
• Brazed Seam For Maximum Strength
• UL Listed And CSA Recognized
• No Supplier Warranty

Ancor 311299 Technical Bulletins

• ANC_NPA_001.pdf
• TCHDAT_CEAncorHeatShrinkTerminals.pdf

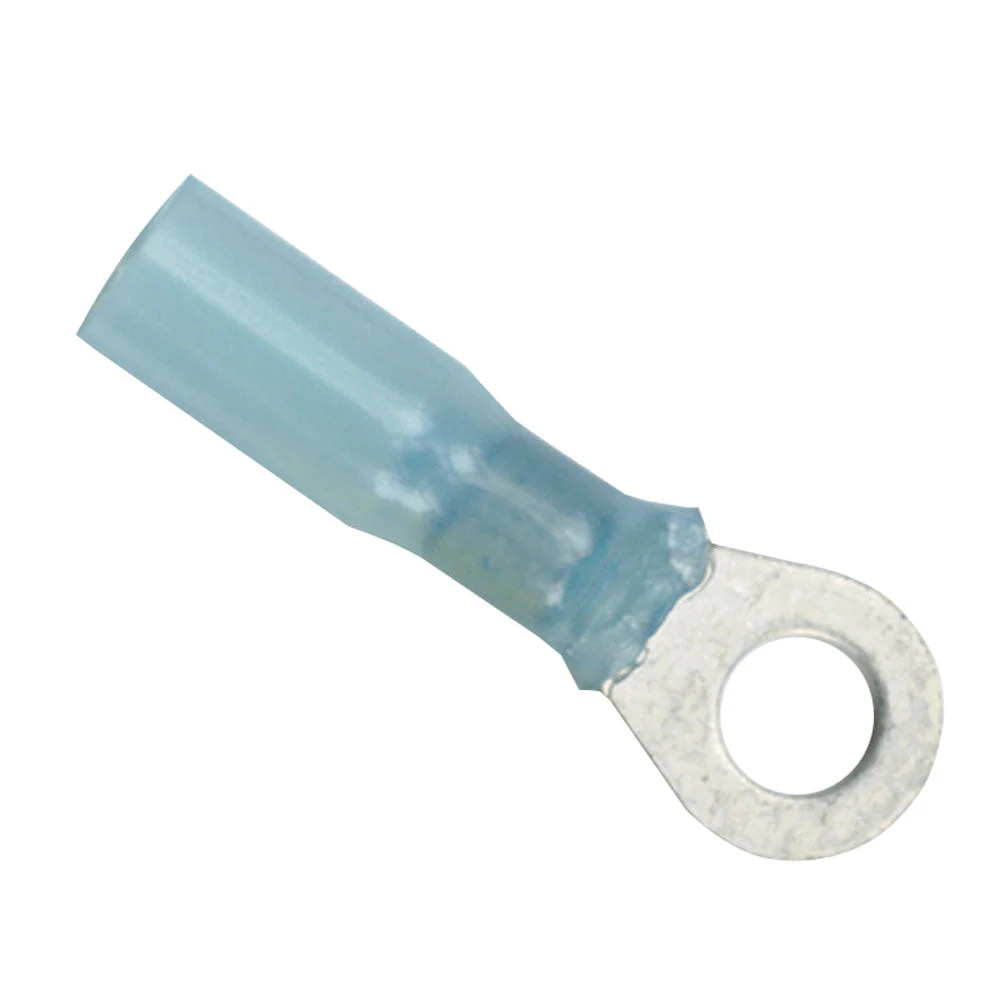

16-14 Gauge – #8 Heat Shrink Ring Terminal – 100-Pack
Gauge Size: 16-14
Screw Size: #8
Quantity: 100
Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
• UL Listed and CSA Recognized
• Highest shrink ratio – shrinks to 1/3 original size.
• Shrinks at 257 deg. F/125 deg. C.
• Operating temperature range 40 deg. C to 110 deg. C.
• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
• Shrinks to form a water tight seal and the ultimate vibration and strain relief.
• Tinned for corrosion resistance.
• Pure copper for maximum current flow.
• Brazed seam for maximum strength.
• Wire Range: 16-14
• mm: 1-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

16-14 gauge-8 heat shrinkable ring terminals-100 installed gauge: 16-14 Screw size: 8 Quantity: 100 Function: Cross-linked polyolefin pipe is stronger than PVC pipe, and…
SKU: NVN-42093
MPN: 311299
UPC: 091887313062
