Description

Ancor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.

Ancor 309102 Attributes

• Type: Butt
• Gauge Wire: 16 To 14 Gauge
• Color: Clear
• Material: Copper
• Quantity: Pack Of 500

Ancor 309102 Features & Benefits

• Tinned For Corrosion Resistance
• Pure Copper For Maximum Current Flow
• Brazed Seam For Maximum Strength
• UL Listed And CSA Recognized
• No Supplier Warranty

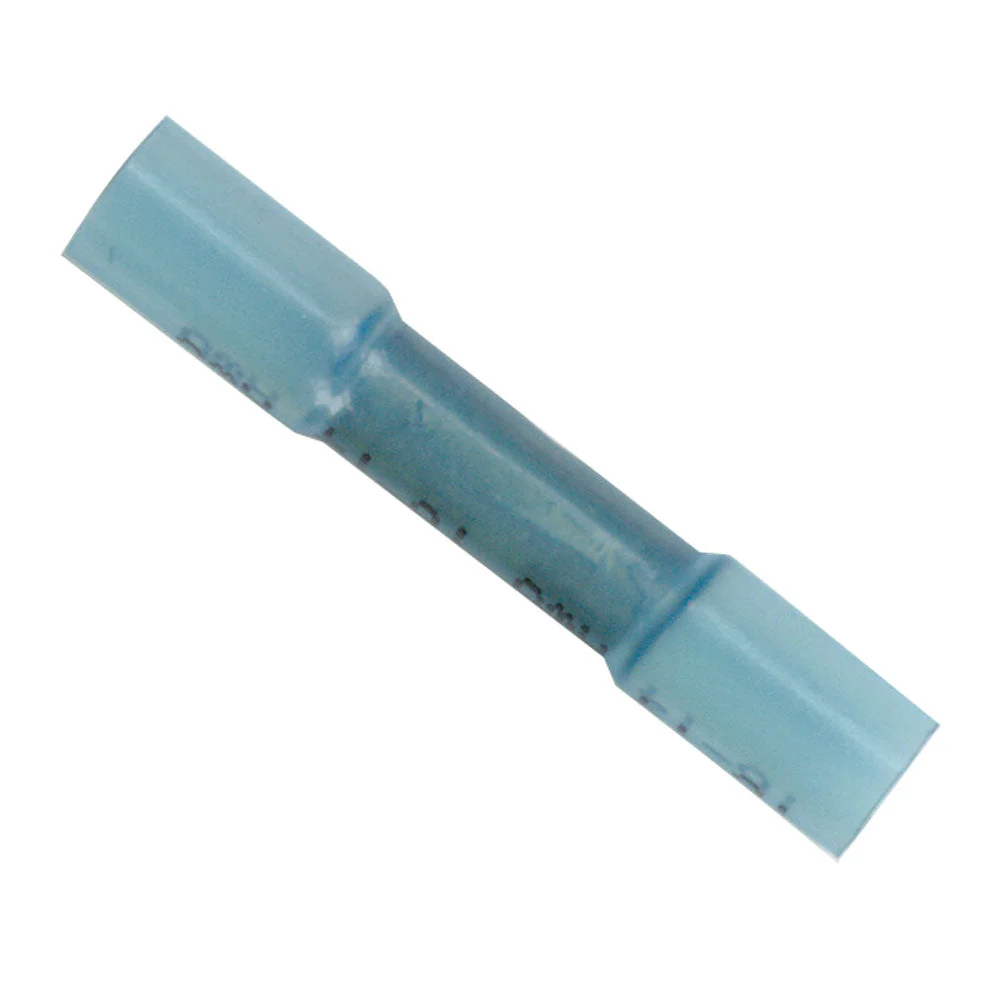

16-14 Heatshrink Butt Connectors – 500-Pack
Guage Size: 16-14
Quantity: 500
Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
• UL Listed and CSA Recognized
• Highest shrink ratio – shrinks to 1/3 original size.
• Shrinks at 257 deg. F/125 deg. C.
• Operating temperature range 40 deg. C to 110 deg. C.
• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
• Shrinks to form a water tight seal and the ultimate vibration and strain relief.
• Tinned for corrosion resistance.
• Pure copper for maximum current flow.
• Brazed seam for maximum strength.
• Wire range: 16-14
• mm: 1-2

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The heat-activated adhesive lining can seal salt water, oil, acid and sunlight, and relieve stress. Nylon insulators, the expert’s first choice, used for…
SKU: NVN-55428
MPN: 309102
UPC: 091887308242
