Description

Ancor has been the market leader in Marine Grade ® wire and wire management tools. All of our products are built for the harsh marine environment and conform to industry standards. From wire, to connectors and terminals, to a comprehensive line of tools and testers, Ancor is your source for all of your marine and mobile electrical projects.

Ancor 305106 Attributes

Ancor 305106 Features & Benefits

• Cross Linked Polyolefin Tubing Is Much Stronger Than PVC Tubing And Will Not Burn Like PVC
• Heat Activated Adhesive Lining Provides Impervious Seal To Salt Water, Oil, Acids, And Sunlight As Well As Providing Strain Relief
• Highest Shrink Ratio – Shrinks To 1/3 Original Size
• Operating Temperature Range Of -40 Degree Celsius To 110 Degree Celsius
• UL 224 Certified
• No Supplier Warranty

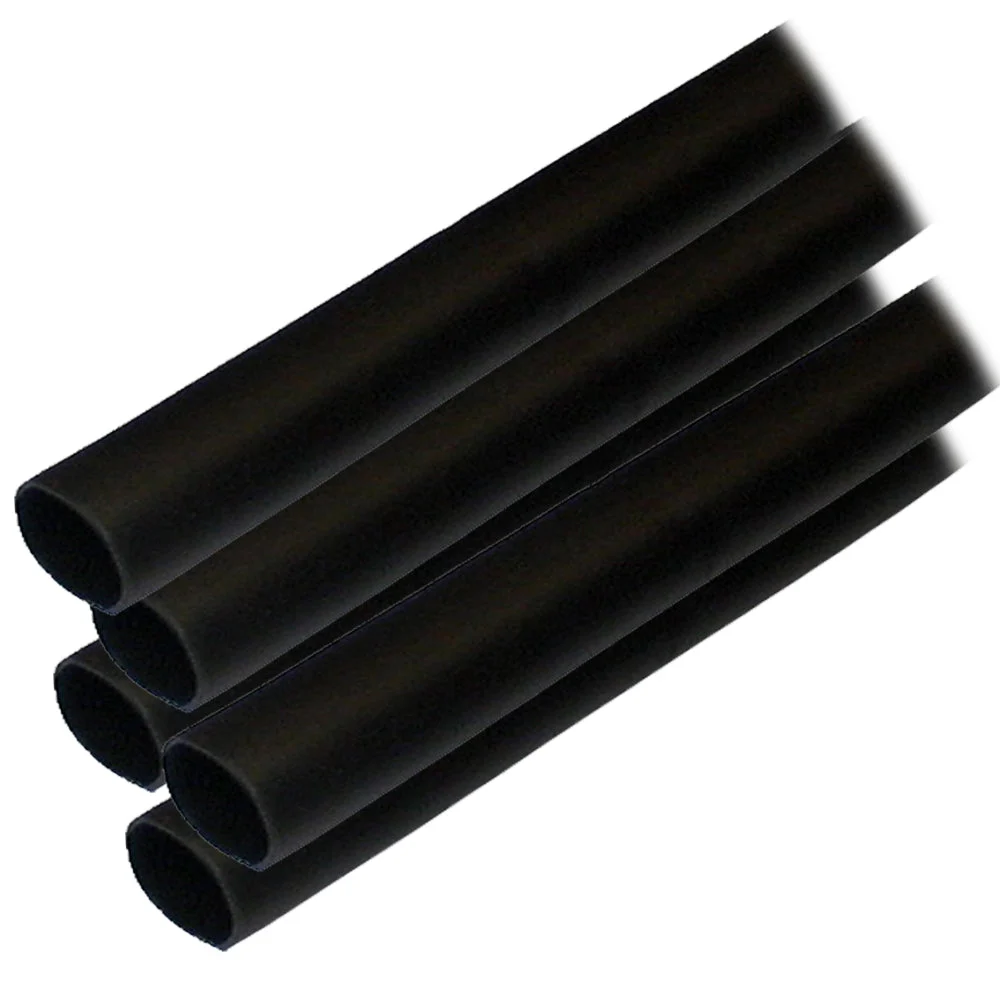

Adhesive Lined Heat Shrink Tubing (ALT) – 1/2″ x 6″ – 5-Pack – Black
Package of 5 Black 6″(15.2cm) long sections with a 1/2″(12.7mm) diameter that shrinks to 5/32″(4mm)
Wire Range: 8-4 AWG
Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC
• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief
• Highest shrink ratio – shrinks to 1/3 original size
• Shrinks at 257°F / 125°C
• Operating temperature range of -40°C to 110°C
• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Ancor’s cross-linked polyolefin pipe is significantly stronger than PVC pipe and will not burn like PVC. The heat activated adhesive liner shrinks to…
SKU: NVN-60066
MPN: 305106
UPC: 091887304527
