Description

As the first major supplier of UL listed products designed for the harsh marine environment, Ancor Marine Grade® Products have earned a reputation for being the toughest and most reliable electrical components on the market.

Ancor 304648 Attributes

Ancor 304648 Features & Benefits

• Cross Linked Polyolefin Tubing Is Much Stronger Than PVC Tubing And Will Not Burn Like PVC
• Heat Activated Adhesive Lining Provides Impervious Seal To Salt Water, Oil, Acids, And Sunlight As Well As Providing Strain Relief
• Highest Shrink Ratio – Shrinks To 1/3 Original Size
• Operating Temperature Range Of -40 Degrees Celsius To 110 Degrees Celsius
• No Supplier Warranty

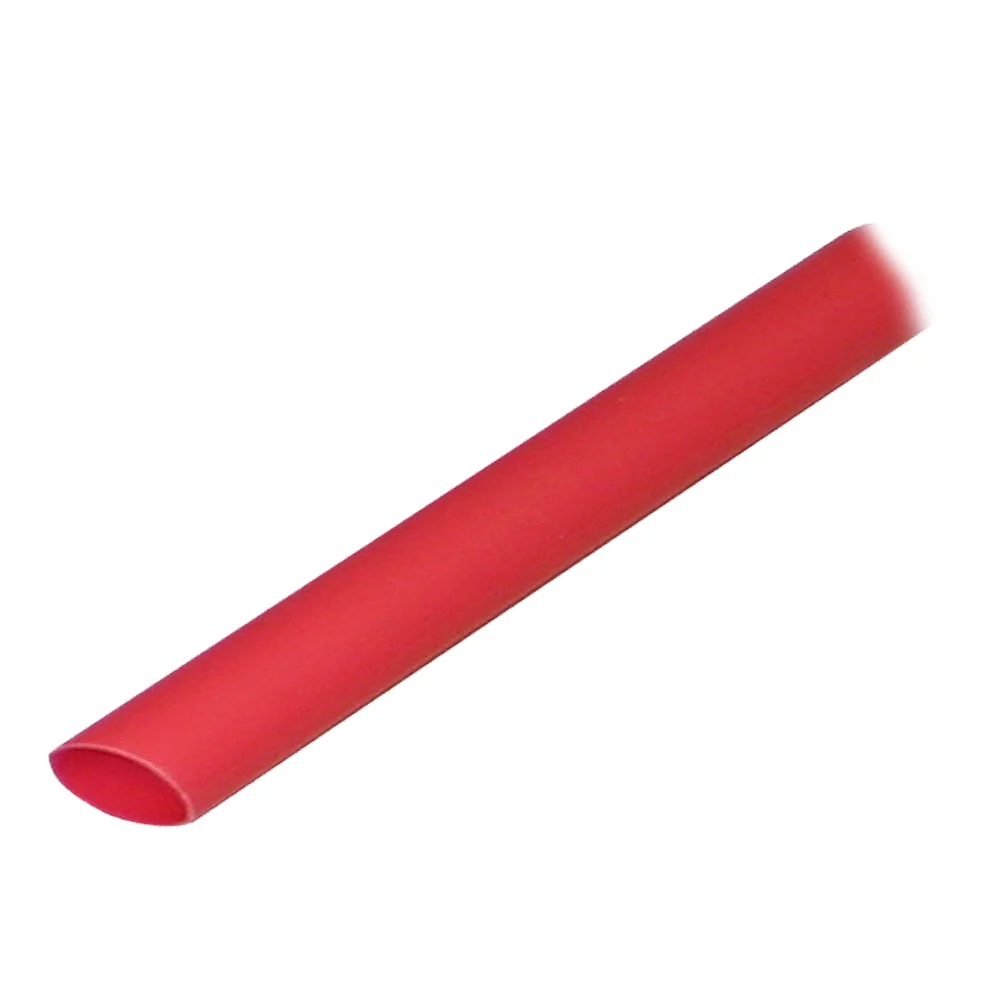

Adhesive Lined Heat Shrink Tubing (ALT) – 3/8″ x 48″ – 1-Pack – Red
Package of 1 Red 48″(122cm) long sections with a 3/8″(9.5mm) diameter that shrinks to 1/8″(3.2mm)
Wire Range: 12-8 AWG
Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC
• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief
• Highest shrink ratio – shrinks to 1/3 original size
• Shrinks at 257°F / 125°C
• Operating temperature range of -40°C to 110°C
• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Insulate and protect the connection from mechanical abuse, pulling and abrasion. The heat-activated adhesive lining can seal salt water, oil, acid and…
SKU: NVN-60063
MPN: 304648
UPC: 091887808674
