Description

Introducing LightArmor ™ Underwater Lights from Attwood, a new line of premium surface-mount LED lights that are engineered to be the brightest and most durable lights in the industry. Like all LightArmorTM products, they’re technically advanced, built to perform in the harshest marine environments.

Attwood Marine 66UW12B7 Attributes

• Bulb Type: LED
• Mounting Type: Surface Mount
• Light Output: 5000 Lumens
• Voltage Rating: 12 Volt/ 24 Volt
• Lens Color: Clear
• Ampere Rating: 1.30 Milliampere At 24 Volt/ 2.59 Milliampere At 13.6 Volt
• Shape: Oval
• Size: 6 Inch Length X 2.35 Inch Width X 0.59 Inch Height
• Housing Color: Silver
• Housing Material: Stainless Steel
• Quantity: Single

Attwood Marine 66UW12B7 Features & Benefits

• Intelligently Engineered For Strength And Durability
• Exclusive Heat-Sync Cooling System With Active Overheat Protection
• Resistant To Corrosion, Chemicals, And UV Damage
• Extreme Impact-Resistant Lens
• Reverse Polarity Protection
• Fully-Sealed Waterproof Electronics
• Simple Installation With Minimal Mounting Hardware
• Low Profile Design
• Electro-Polished 316 Stainless Steel Cover
• Limited 5 Year Warranty

Attwood Marine 66UW12B7 Installation Instructions

• 69564-lightarmor-underwater-instr-ra-actual-size.pdf

Attwood Marine 66UW12B7 Warranties

• Attwood Warranty 2009.pdf

Attwood Marine 66UW12B7 Technical Bulletins

• 69540-litarm-underwater-light-oem-eng-only-instr-rc-actual-size.pdf

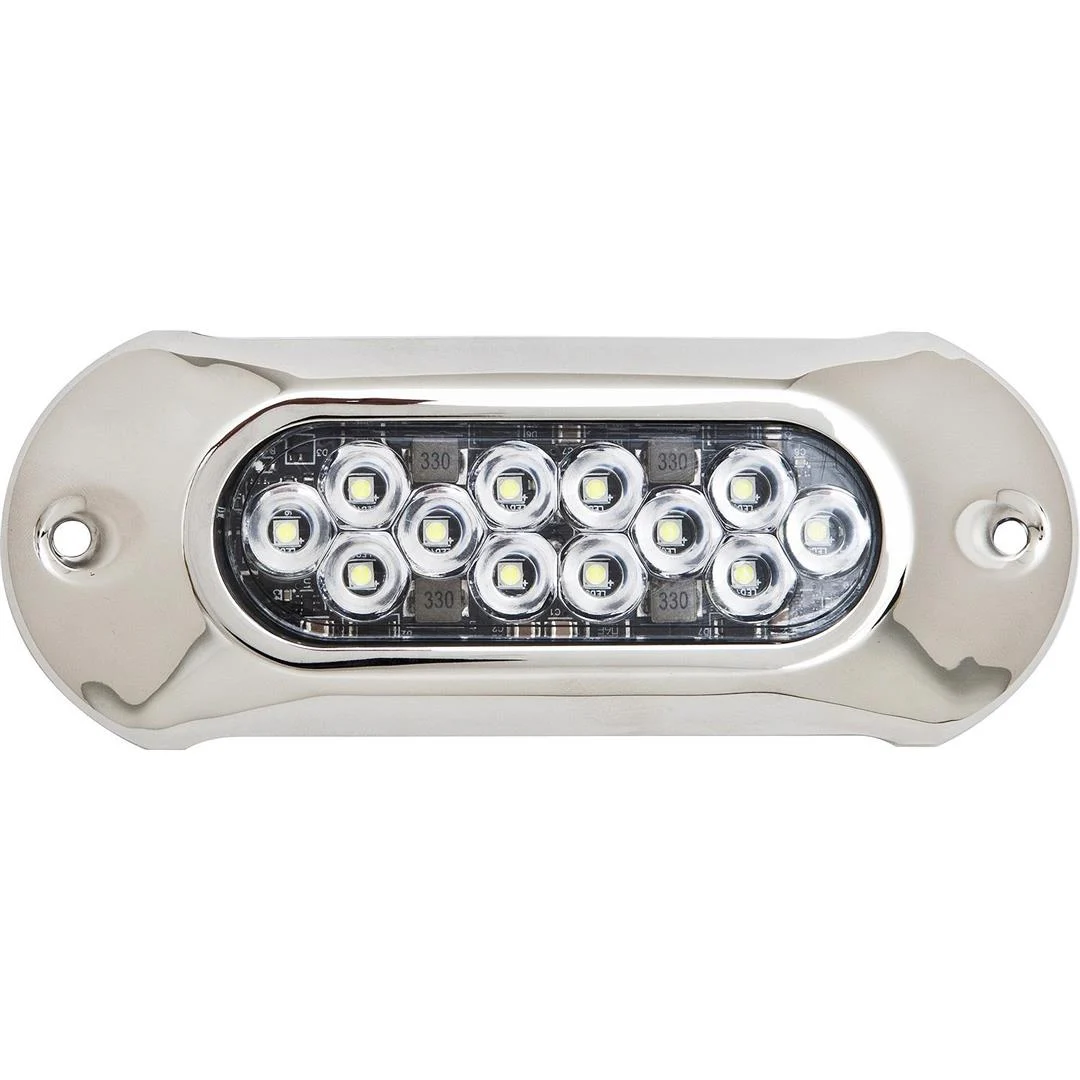

LightArmor Extreme High Performance (HPX) Underwater Light – 12 LED & Blue

Ensuring the highest quality performance, this 6-inch Light Armor surface mount underwater LED incorporates the very latest technology to provide maximum life cycles, minimal heat exposure, and incredible brightness. The sleek housing with a low profile design requires minimal mounting hardware. Unique heat sink cooling system with active overheat protection, reverse polarity protection, fully-sealed waterproof electronics, and impact-resistant lens further enhance unsurpassed durability.

Features:

• 12V and 24V DC systems
• Intelligently engineered for strength and durability
• Exclusive Heat-Sync Cooling System with Active Overheat Protection
• Resistant to corrosion, chemicals, and UV damage
• Extreme impact-resistant lens
• 3 ft. sheathed wire
• Reverse polarity protection
• Fully sealed waterproof electronics
• Simple installation with minimal mounting hardware
• Low-profile design
• Electro-polished 316 stainless steel cover (Optional for OEM)
• CE certified

Specifications:

• Fixture Lumens: 5,000
• Current Draw at 13.6V: 2.59
• Current Draw at 24V: 1.30

*All Light Armor Underwater lights must be mounted under water line. Only works underwater.

SKU: NVN-98175
MPN: 66UW12B-7
UPC: 022697662125
