Description

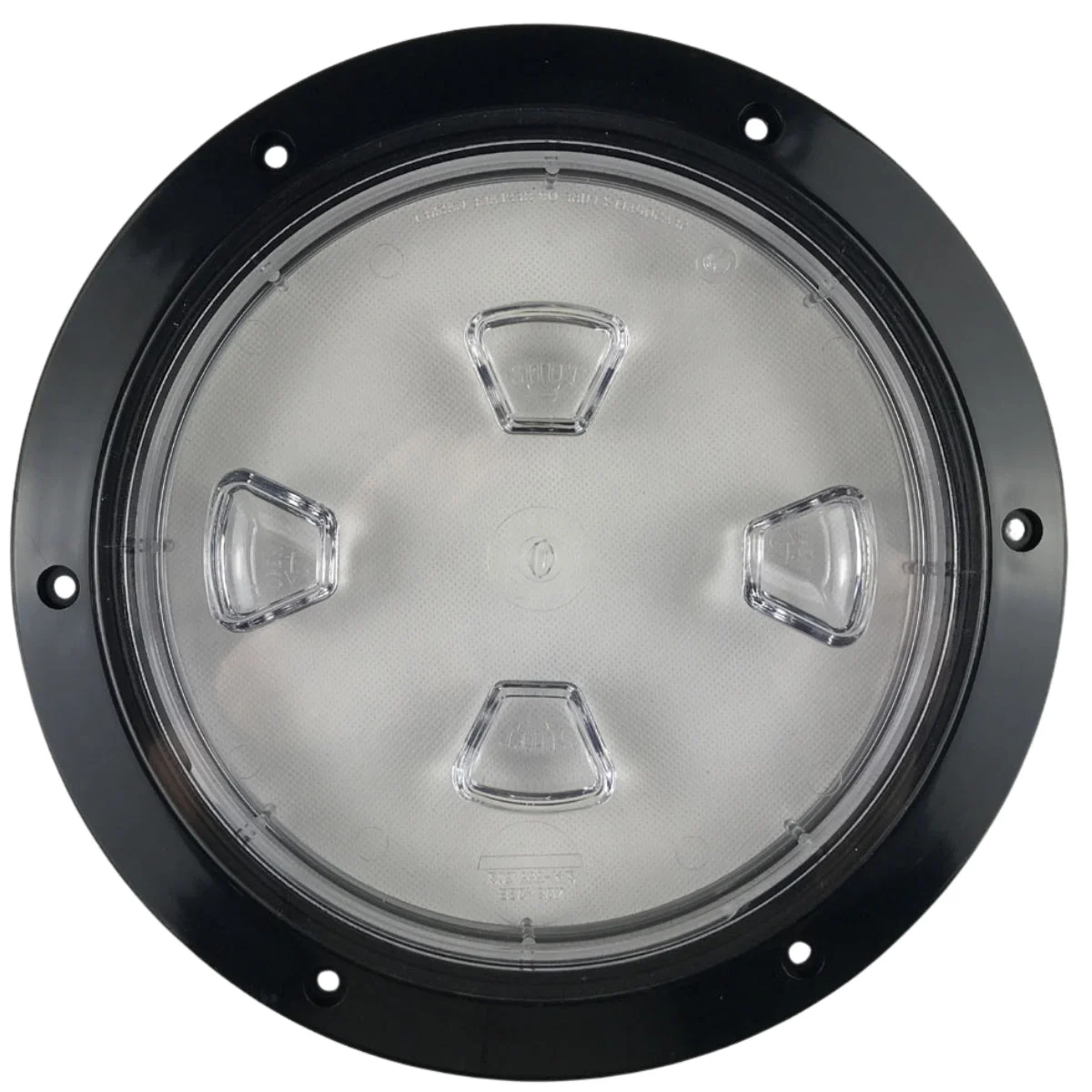

Beckson Screw-Out 8″ Deck Plate Black/Clear

Though deck plates are no new invention, Beckson was the first to conquer all three safety features. First, a cover that would not open unexpectedly. Second, maximum water tightness. Third, prevent jamming closed or cross- threading that would prevent a cover from being closed.

The Beckson Screw-Out Plate was designed to provide access without the use of tools, with a single start, non-jamming (no cross-thread), extra strong, self-cleaning buttress thread. They incorporate a self-aligning center and an innovative gasket to assure a watertight seal. A unique back-up sealing wall leaves the plate water resistant, even if the gasket is removed.

A screw-out plate should be used in compartments where a change in air pressure due to temperature or oil canning can occur. Deck plates also are used for access, inspection, and clean out for tanks and compartments, or just as a general access for shut-off valves or back- fastenings. Our clear center plates permit observation of controls or gauges and visual inspection without the necessity of removing the plate.

Specifications:

• 8″ Deck Plate with Standard Trim Ring
• OD: 10″ (25.4 cm)
• Hole Cut: 8-1/2″ (21.6 cm)
• Passage: 7-5/8″ (19.4 cm)
• Additional gasket = D8S-G
• No Thin Rim is available for 8″ deck plates
• Dimensions: 11 × 11 × .5 in
