Description

Quality Products engineered for the harsh marine environment and built to last. Over 1,000 electrical products are designed to work together as a fully integrated system.

Blue Sea 1214BSS Attributes

• Recommended Use: AC Main Circuit Breaker Panel
• Voltage Rating: 120 Volt
• Power Rating: 30 Ampere
• Receptacle Type: Single Pole 15 Amps (Branch)/ A-Series Flat Rocker Circuit Breaker – Double Pole 30 Amps (Main)
• Number Of Connections: 2
• GFCI/ Overload Protection: No
• Length (IN): 3 Inch
• Width (IN): 4.88 Inch
• Height (IN): 4-3/4 Inch
• Color: Black
• UL Listed: No
• With Flip Cover: No

Blue Sea 1214BSS Features & Benefits

• All Circuit Label Positions Are Backlit
• ON Indicating LEDs Installed In All Circuit Positions
• Features 4206—Square Format Label Set
• 360 Panel System
• No Supplier Warranty

Blue Sea 1214BSS Technical Bulletins

• 990343760.pdf

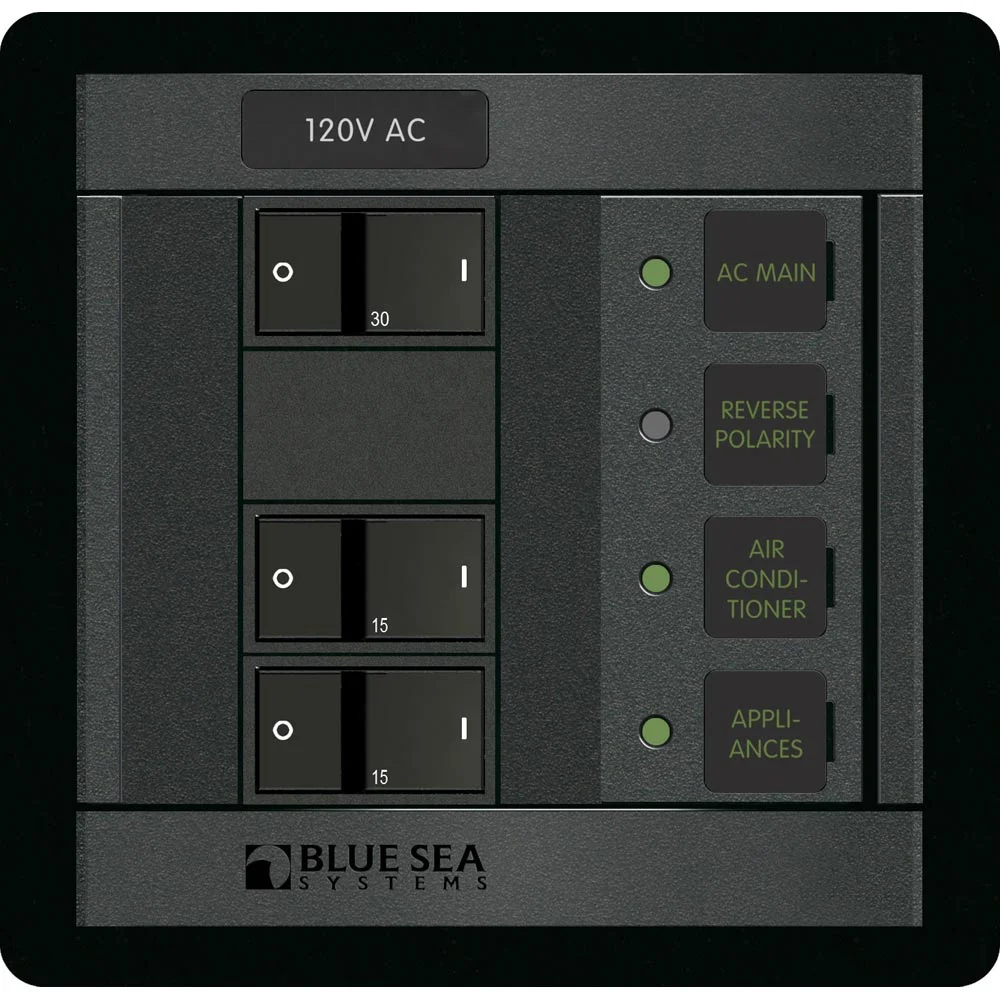

120 Volt AC Main + 2 Positions
Features:

• All circuit label positions are backlit
• “ON” indicating LEDs installed in all circuit positions
• Includes 4206-Square Format Label Set

Specifications:

• Positions:2
• Nominal Voltage:120V AC
• Height:4.75″ (120.65mm)
• Width:4.88″ (123.95mm)
• Depth:3.00″ (76.2mm)
• Weight:1.58lb (0.72kg)

Includes:
(2) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A
(1) – 4206 – Basic AC Label Kit – 30 Black Square Labels [LABEL]
(1) – 7414 – A-Series Flat Rocker Circuit Breaker – Double Pole 30A (Main)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The 360 ​​series AC power distribution panel MFG 1214 120 VAC consists of a 30 Amp main power supply and two 15 A branch flat door rocker switch circuit breakers, with available power-on power and reverse power.
SKU: NVN-57234
MPN: 1214
UPC: 632085012144
