Description

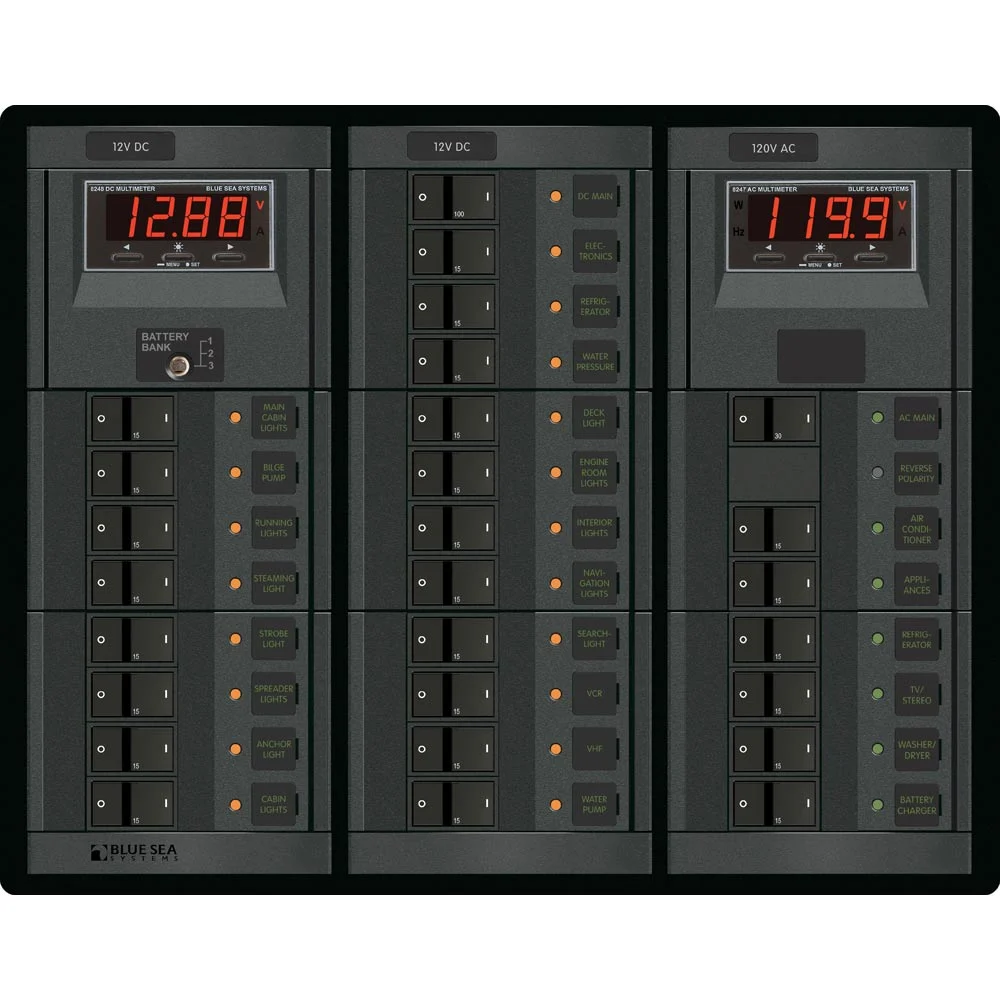

12 Volt DC Main + 19 Positions/120 Volt AC Main + 6 Positions
Features:

• 360 AC Panels may be equipped with main breakers up to 100A per pole to suit the application
• AC and DC panel amperage determined by AC Main and DC Main circuit breakers
• Modular manufacturing design reduces manufacturing time
• Interchangeable modular design eliminates custom engineering and metal fabrication
• Flexible modifications
• Flexible panel orientation (panels without meters)

Specifications:

• Positions:6-AC / 19-DC
• Nominal Voltage:120V AC / 12V DC
• Height:10.75″ (273.05mm)
• Width:13.63″ (346.2mm)
• Depth:4.00″ (101.6mm)
• Weight:12.80lb (5.81kg)

Includes:
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]
(1) – 4206 – Basic AC Label Kit – 30 Black Square Labels [LABEL]
(6) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A (AC Branch)
(1) – 7414 – A-Series Flat Rocker Circuit Breaker – Double Pole 30A (AC Main)
(1) – 8247 – AC Digital Multi-Function Meter with Alarm (AC Meter)
(19) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A (DC Branch)
(1) – 7549 – C-Series Flat Rocker Circuit Breaker – Single Pole 100A (DC Main)
(1) – 8248 – DC Digital Multi-Function Meter with Alarm (DC Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems 19-bit 12V DC main power supply / 6-bit 120V AC main power supply. Modular electrical panels can meet the changing needs of your ship, and Blue Sea Systems 360 panels can meet your various needs.
SKU: NVN-57245
MPN: 1218
