Description

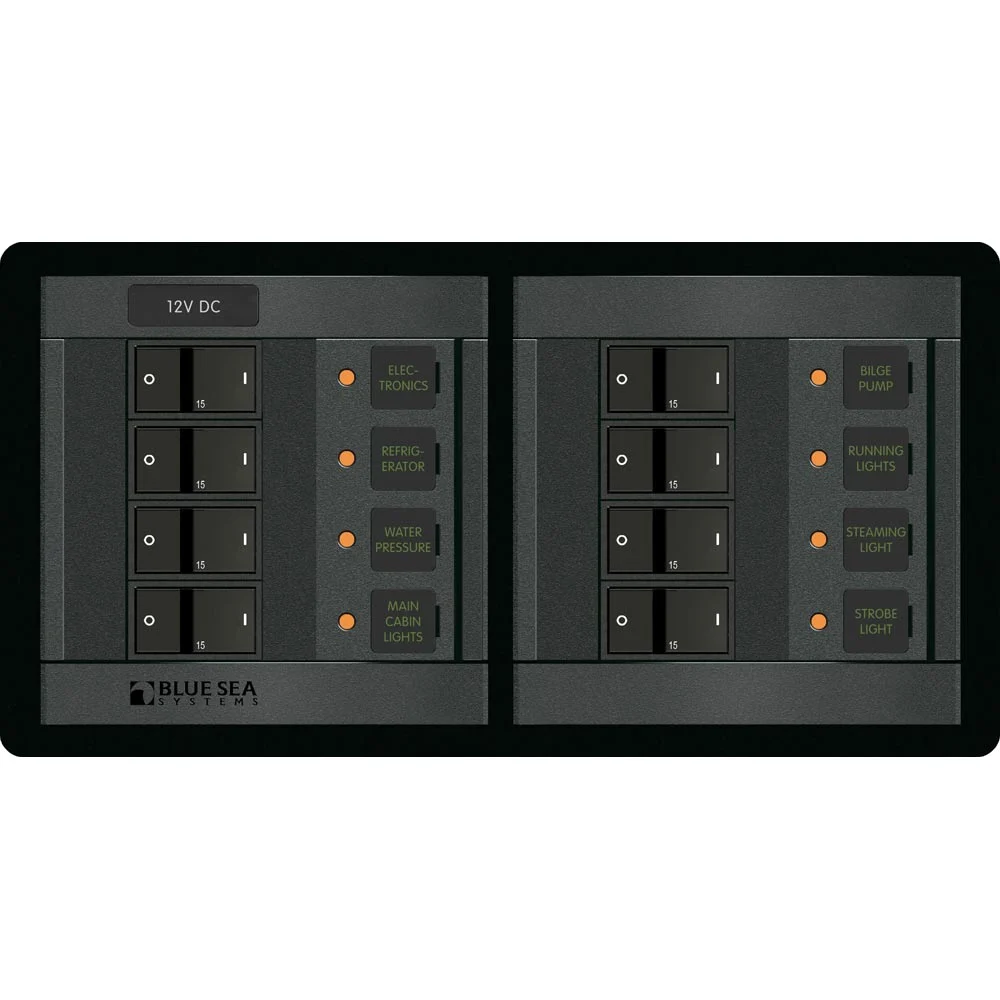

12 Volt DC 8 Position – Horizontal
Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers
• Available with voltmeters, ammeters, and digital multimeters
• Includes 4205-Square Format Label Set

Specifications:

• Positions:8
• Nominal Voltage:12V DC
• Maximum Amperage*:100A per bus
• Height:4.75″ (120.65mm)
• Width:9.25″ (234.95mm)
• Depth:3.00″ (76.2mm)
• Weight:3.84lb (1.74kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) – 7403 – A-Series Flat Rocker Circuit Breaker – Single Pole 15A
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems 8-bit 12V DC panel. Modular electrical panels will adapt to the changing needs of your ship, Blue Sea Systems 360 panels because of its…
SKU: NVN-57223
MPN: 1225
UPC: 632085012250
