Description

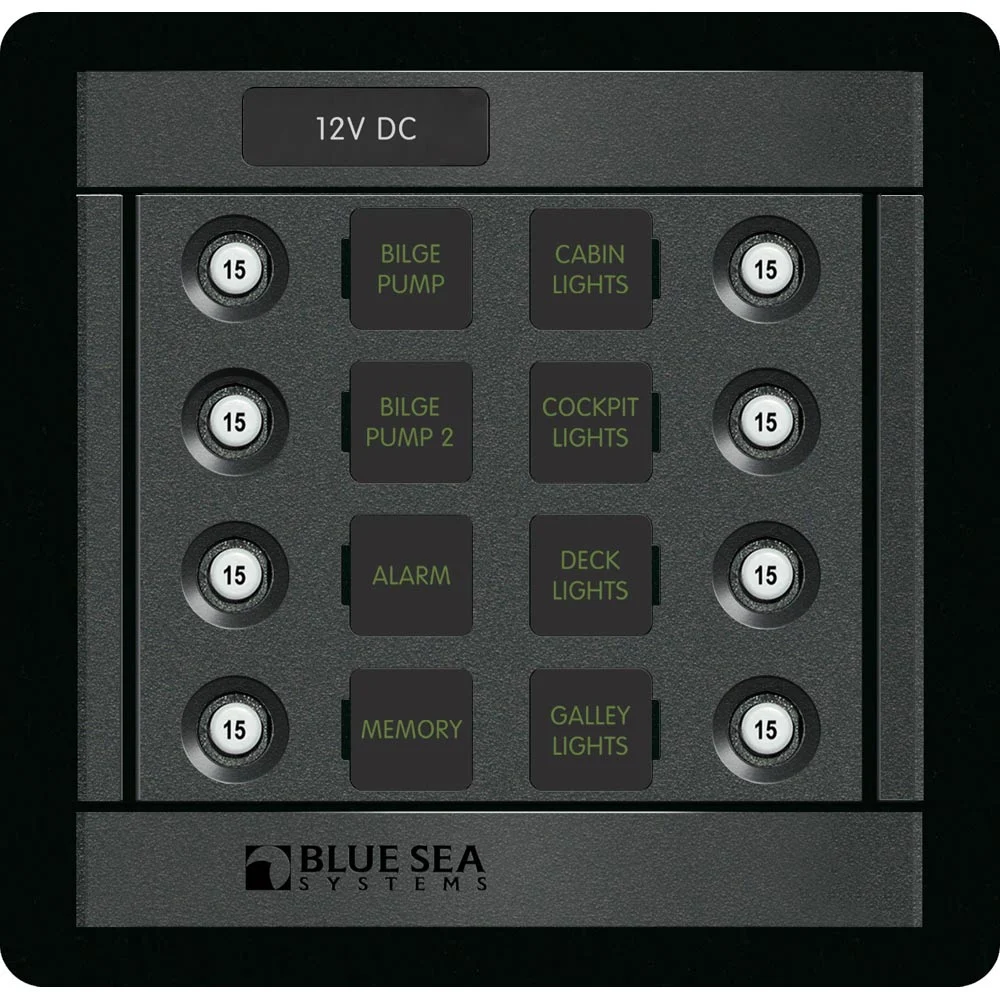

DC 8 Position CLB Square
Features:

• High-density circuit protection
• Includes 4205-Square Format Label Set

Specifications:

• Positions:8
• Nominal Voltage:12V DC / 24V DC
• Maximum Amperage*:90A
• Height:4.75″ (120.65mm)
• Width:4.88″ (123.95mm)
• Depth:3.50″ (88.9mm)
• Weight:1.25lb (0.57kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) – 7056 – Push Button Reset Only Quick Connect Circuit Breaker – 15 Amps
(1) – 4205 – Basic DC Label Kit – 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems 8-bit 12/24V DC CLB button panel, 8/15A circuit. Modular switchboards that can adapt to the changing needs of your ship Blue Sea Systems 360…
SKU: NVN-57219
MPN: 1450
UPC: 632085014506
