Description

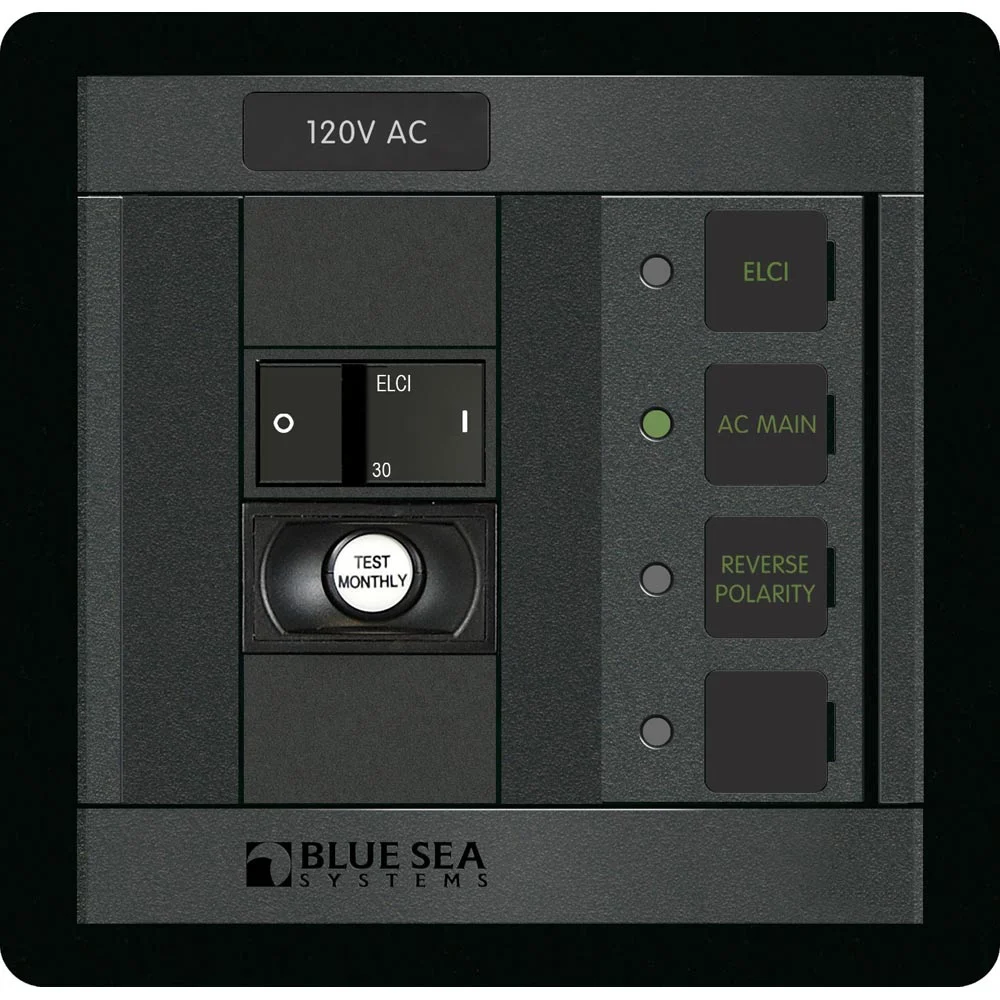

ELCI Main 30A Double Pole Panel
Features:

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate – 30 mA
• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
• Red ” Reverse Polarity” LED
• All circuit label positions are backlit
• “ON” indicating LEDs

Specifications:

• Positions:1
• Nominal Voltage:120V AC
• Height:4.75″ (120.65mm)
• Width:4.88″ (123.95mm)
• Depth:3.00″ (76.2mm)
• Weight:1.10lb (0.5kg)

Includes:
(1) – 3102100 – A-Series ELCI Main Circuit Breaker – Double Pole 120V AC 30A

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Features: high quality, made to order, semi-custom cover. Using advanced technology, durable, UV-treated 6.25 oz marine grade acrylic coated woven polyester material…
SKU: NVN-57240
MPN: 1502
UPC: 632085015022
