Description

BusBars distribute positive wires or collect negative returns. BusBars range in capacity from 100 Ampere to 600 Ampere.

Blue Sea 2315BSS Attributes

• Type: Flat Strip
• Number Of Terminals: 4
• Voltage Rating: 300 Volt/ 48 Volt
• Ampere: 100 Amp
• Length (IN): 4.2 Inch
• Width (IN): 0.9 Inch
• Material: Reinforced Polycarbonate Base With Tin-Plated Copper Bus
• With Insulated Cover: Yes

Blue Sea 2315BSS Features & Benefits

• Provides Busing For Limited Space Applications
• One Piece Serrated Flange Nut Ensures Correct And Secure Connection
• 4 Stud Terminal
• Great For Limited Space Applications
• Reinforced Polycarbonate Base With Tin-Plated Copper Bus
• No Supplier Warranty

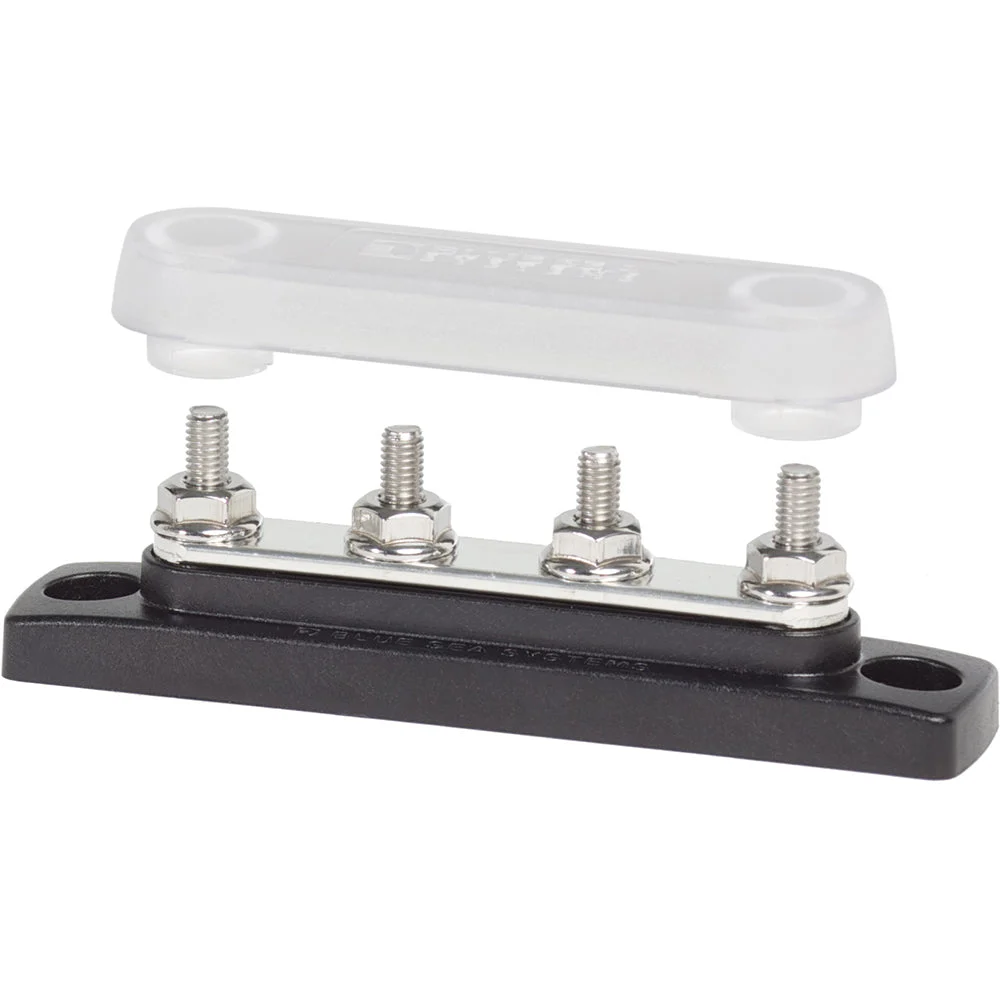

MiniBus 100 Ampere Common BusBar 4 x 10-32 Stud Terminal with Cover
PN:  2315

• Great for limited space applications in electronics cabinets and under dashboards
• Snap on insulating cover attaches to studs and allows unobstructed wire access
• Raised bus provides easy access to multiple wires on a single screw
• Pressed on busbar eliminates the need for a securing nut
• Stainless steel studs allow high torquing for excellent electrical contact
• Tin-plated copper bus for maximum conductivity and corrosion resistance
• Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
• Captive star type lock washers meet CE requirements for anti-rotation and eliminate handling of small, easily dropped parts
  =
• Stainless steel Phillips screws for easier installation and resistance to stripping
• UL 94-VO rated base material resists high heat

Continuous Amperage	100 Amperes AC/DC
Maximum Voltage Rating	300 Volts AC/48 Volts DC
Bus Material	Tin-Plated Copper CDA 110/UNS11000
Base Material	Reinforced Polycarbonate
Cover Material	Clear Polycarbonate
Weight	0.17 Lb

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

“Great for limited space applications in electronics cabinets and under dashboards. Snap on insulating cover attaches to studs and allows unobstructed wire access. Raised bus provides easy access to multiple wires on a single screw. Pressed on busbar eliminates the need for a securing nut Stainless steel studs allow high torquing for excellent electrical contact.”
SKU: NVN-28236
MPN: 2315-BSS
UPC: 632085023157
