Description

Over 1,000 electrical products are designed to work together as a fully integrated system. Just in time manufacturing has made Blue Sea Systems rank among the top 5 Percent of marine manufacturers for rapid order fulfillment.

Blue Sea 2340BSS Attributes

• Type: Flat Strip
• Number Of Terminals: 4
• Voltage Rating: 32 Volt
• Ampere: 100 Amp
• Length (IN): 2.85 Inch
• Width (IN): 1.84 Inch
• Material: Tin Plated Copper Bus
• With Insulated Cover: Yes

Blue Sea 2340BSS Features & Benefits

• Tin-Plated Pure Electrical Copper For Maximum Conductivity
• Easily Add Positive And Negative Busbars Directly To A Threaded-Post Battery Terminal
• Insulating Covers Meet ABYC And USCG Insulation Requirements
• Screw Terminals For Securing Wires
• No Supplier Warranty

Blue Sea 2340BSS Technical Bulletins

• 2340.pdf

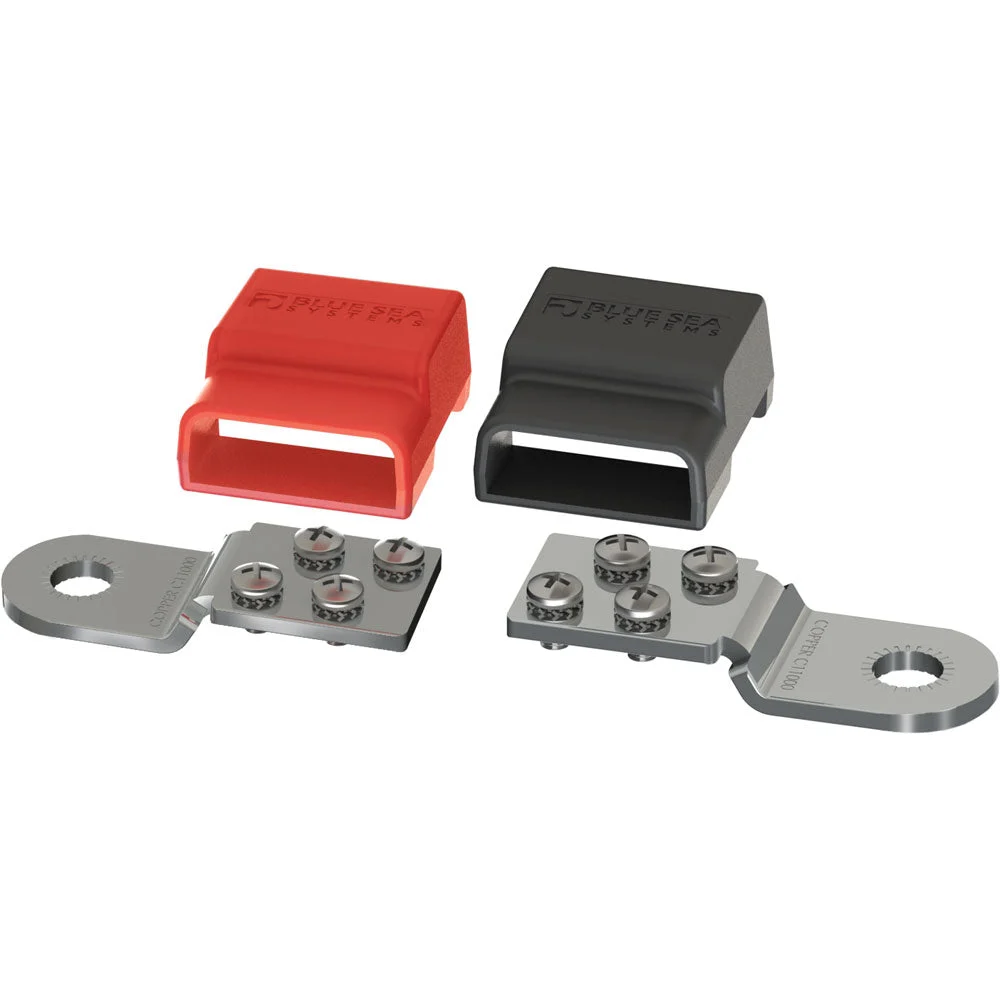

Battery Terminal Mount BusBars
Easy to install.
Specifications:

• Maximum Voltage: 32V DC
• Continuous Rating: 100A DC
• Bus Material: Tin-Plated Copper C11000
• Mounting Hole: Clearance for 3/8 [M10] stud
• Screw Terminal Type: #8-32 Screws with Captive Star Lock washer

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Add accessories and clean up the wires directly connected to the battery Now, there is an easy way to manage and organize the wires connected to the battery terminals. Blue Ocean System has developed a…
SKU: NVN-54773
MPN: 2340-BSS
UPC: 632085023409
