Description

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 3116BSS Attributes

• Length: 7.4 Inch
• Width: 7.6 Inch
• Depth: 4.7 Inch
• Material: Polycarbonate
• Mounting Type: Surface Mount
• With Mounting Hardware: Yes

Blue Sea 3116BSS Features & Benefits

• Blank Apertures For Custom Breaker Loading
• Glass Filled Polycarbonate Mounting Box
• Clear Cover Allows Easy View Of Circuit Breaker Status
• Overlapping Cover For Strength And Increased Gasket Protection
• Oversized, Formed In Place Seamless PUR Gasket
• Stainless Steel Latch Secures Cover Without Penetrating The Enclosure
• Blank Circuit Positions Accommodate Carling Technologies™ A- And C- Series Flat Rocker And ELCI Main Circuit Breakers
• Easily Removable Stainless Steel Hinge Pin For Unobstructed Installation
• No Supplier Warranty

Blue Sea 3116BSS Installation Instructions

• 980009910_006-SMS.pdf

Blue Sea 3116BSS Technical Bulletins

• 980009840.pdf

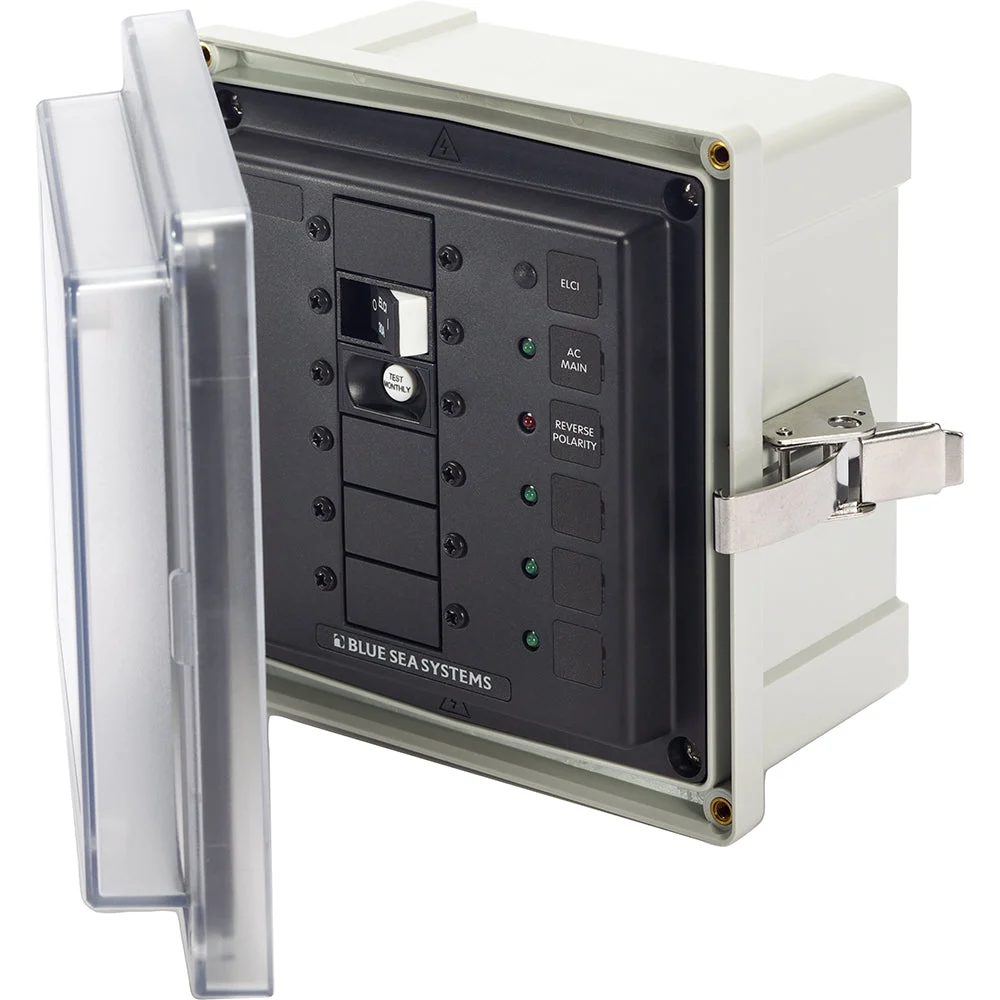

SMS Surface Mount System Panel Enclosure – 120V AC / 30A ELCI Main – 3 Blank Circuit Positions

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Features:

• Includes one 120V AC / 30A ELCI Main and three blank positions
• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication

Specifications:

• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Cover Screws and Hardware: 10-32 Stainless Steel
• Enclosure Size: 6.0″ x 6.0″ x 4.0″ (152mm x 152mm x 102mm)
• Exterior Overall Dimensions: 7.6″ x 7.4″ x 4.7″ (192mm x 188mm x 120mm)
• Mounting Hardware: 1/4″ Diameter, #12 (6 mm)
• Weight: 4.15lb (1.88 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems’ surface mount system panel cabinet with 120V AC 30A ELCI main power supply and 3 blank positions (3116). Panel housings for ELCI main circuit breakers and other large circuit breakers
SKU: NVN-65548
MPN: 3116-BSS
UPC: 632085031169
