Description

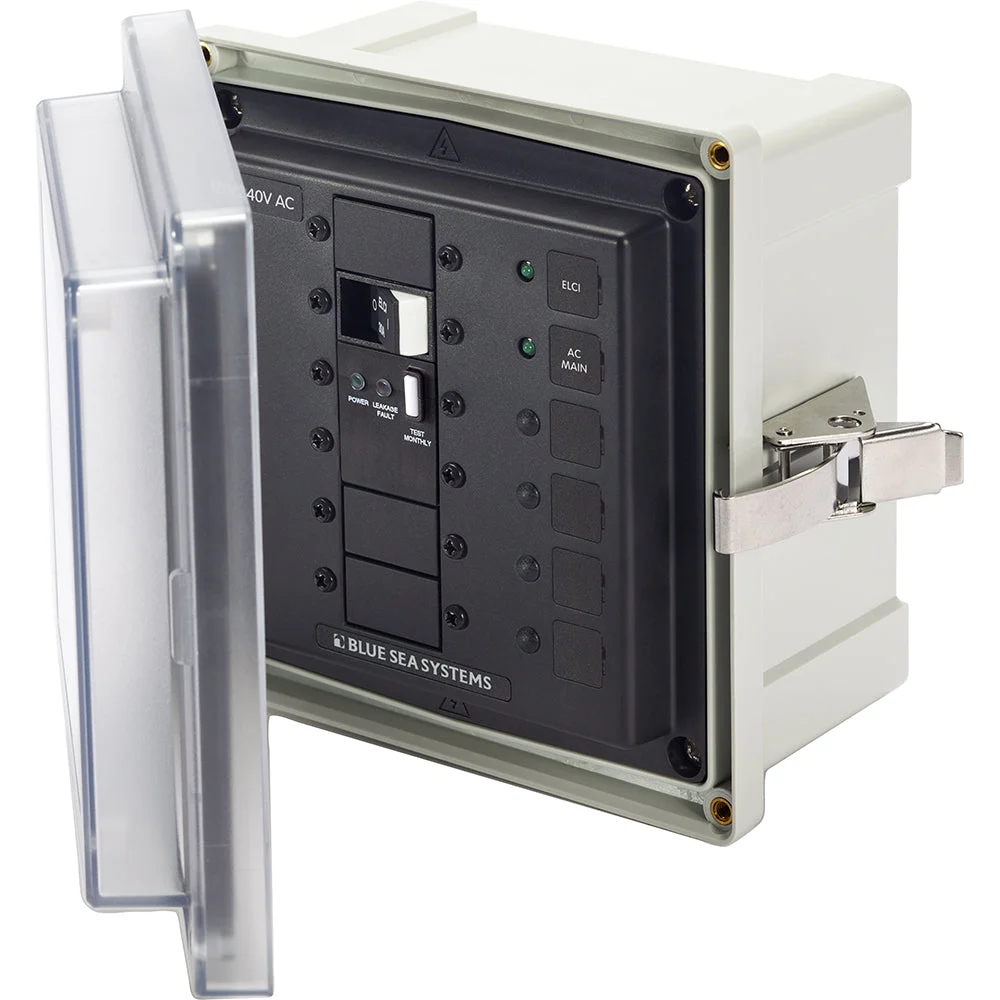

3120 SMS Surface Mount System Panel Enclosure – 240V AC/50A ELCI Main for Isolation Transformer

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet.

Features:

• Blank apertures for custom breaker loading
• Glass filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• Green LEDs for backlighting and ON indication

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

3120 SMS surface mount system panel cabinet-240V AC / 50A ELCI main panel of the isolation transformer is used for the panel cabinet of ELCI main circuit breaker and other large frame equipment. When meeting the requirements of ABYC E-11…
SKU: NVN-85132
MPN: 3120
UPC: 632085031206
