Description

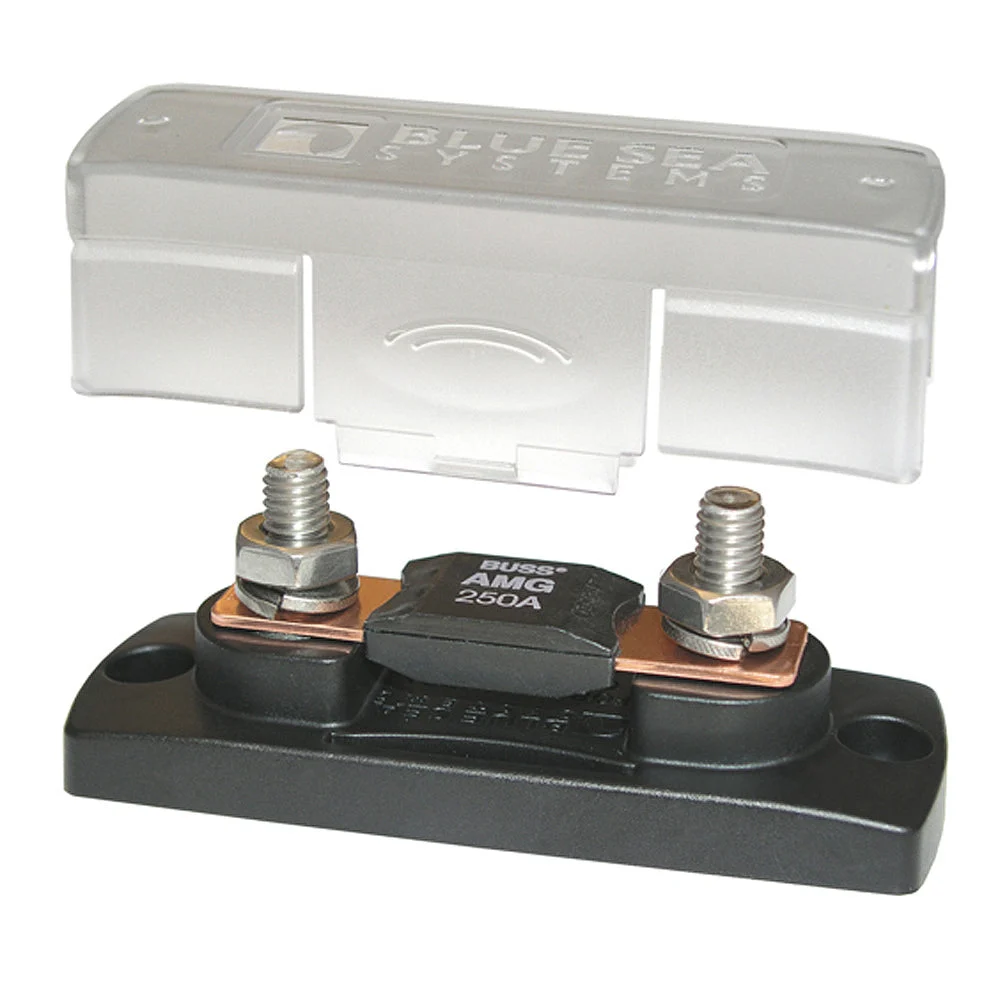

MEGA / AMG Fuse Block – 100-300A with Cover

All of the company’s products are designed to easily integrate into simple or comprehensive electrical systems. The world’s leading RV manufacturers are recognizing the requirement for quality electrical systems and are specifying our products as original equipment.

Blue Sea 5001BSS Attributes

• Power Rating: 32 Volt/ 300 Ampere
• Circuit Type: 2 Circuit Positions
• Fuse Type: MEGA/ AMG
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: Yes

Blue Sea 5001BSS Features & Benefits

• Accepts 5/16 Inch Ring Terminals
• Insulating Cover Satisfies ABYC And USCG Insulation Requirements And Breakouts Allow Wire Access In Three Directions
• Stainless Steel Studs Provide Resistance To Corrosion And High Torque For Excellent Electrical Contact
• UL 94-V0 Base Resists High Heat
• No Supplier Warranty

5001 Fuse Block MEGA 100-300A with Cover

Features:

• The most economical system for 100-300 Ampere fusing
• Insulating cover satisfies ABYC/USCG requirements and cover breakouts allow wire access in any direction
• For use on systems up to 32V DC
• 5/16″ stud terminals accept 5/16″ (M8) Ring Terminals, 14AWG to 2/0 AWG Wire
• Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
• UL 94-V0 base resists high heat
• Insert molded studs ensure secure fuse mounting

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The most economical system with 100-300 ampere fuses. The insulation layer can meet the requirements of ABYC/USCG, and the opening of the cover layer allows wires to enter from any direction. Used for…
SKU: NVN-19000
MPN: 5001-BSS
UPC: 632085050016
