Description

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 5005BSS Attributes

• Power Rating: 32 Volt/ 300 Ampere
• Type: Electrical Contact
• Fuse Type: ANL
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: Yes

Blue Sea 5005BSS Features & Benefits

• Stainless Steel Studs Provide Resistance To Corrosion And High Torqueing For Excellent Electrical Contact
• Cover Breakouts Allow Wire Access In Any Direction
• UL 94-V0 Base Resists High Heat
• Swing Out Design Allows Replacement Of The Fuse Without Removing Fasteners
• For Use On Systems Up To 32 Volts DC
• Accepts 5/16 Inch Ring Terminals
• No Supplier Warranty

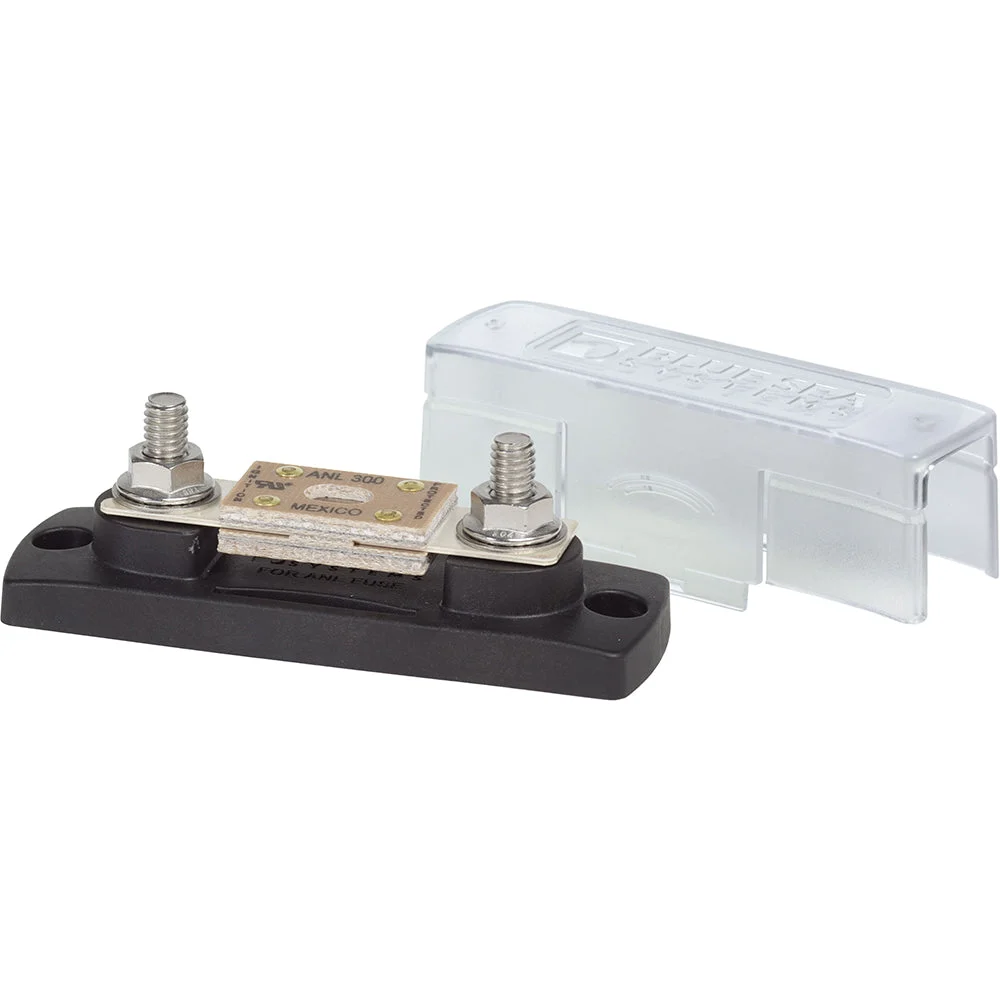

5005 ANL 35-300AMP Fuse Block with Cover

Features:

• Insulating cover satisfies ABYC/USCG requirements and cover breakouts allow access in any direction
• For use on systems up to 32V DC
• Large 5/16″ – 18 studs accept 5/16″ (M8) ring terminals, 14 AWG to 2/0 AWG wire

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems’ ANL 35-300A fuse box with insulating cover (5005). This product is very suitable for use in all marine applications. It will meet the needs of both parties…
SKU: NVN-13969
MPN: 5005-BSS
UPC: 632085050054
