Description

Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirementsCover breakouts allow wires from sides or bottomTerminal screws compress fuse blades within blocks for low resistance connectionsIgnition ProtectedLabel recess accepts large format labelFuses sold separately

Fuse blocks loaded with fuses protect the wire in electrical circuits. Blue Sea Systems broad selection of fuse blocks include single and consolidated fuse blocks.

Blue Sea 5006100BSS Attributes

• Power Rating: 32 Volt/ 80 Amp
• Circuit Type: 2 Circuit Positions
• Fuse Type: Blade
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: Yes

Blue Sea 5006100BSS Features & Benefits

• Cover Breakouts Allow Wires From Sides Or Bottom
• Ignition Protected
• Label Recess Accepts Large Format Label
• Terminal Screws Compress Fuse Blades Within Blocks For Low Resistance Connections
• No Supplier Warranty

Blue Sea 5006100BSS Installation Instructions

• 5006100.pdf

Blue Sea 5006100BSS Technical Bulletins

• 5006100-1_20FuseBlock_20MAXI_20Ign_20Protected_2080A.pdf

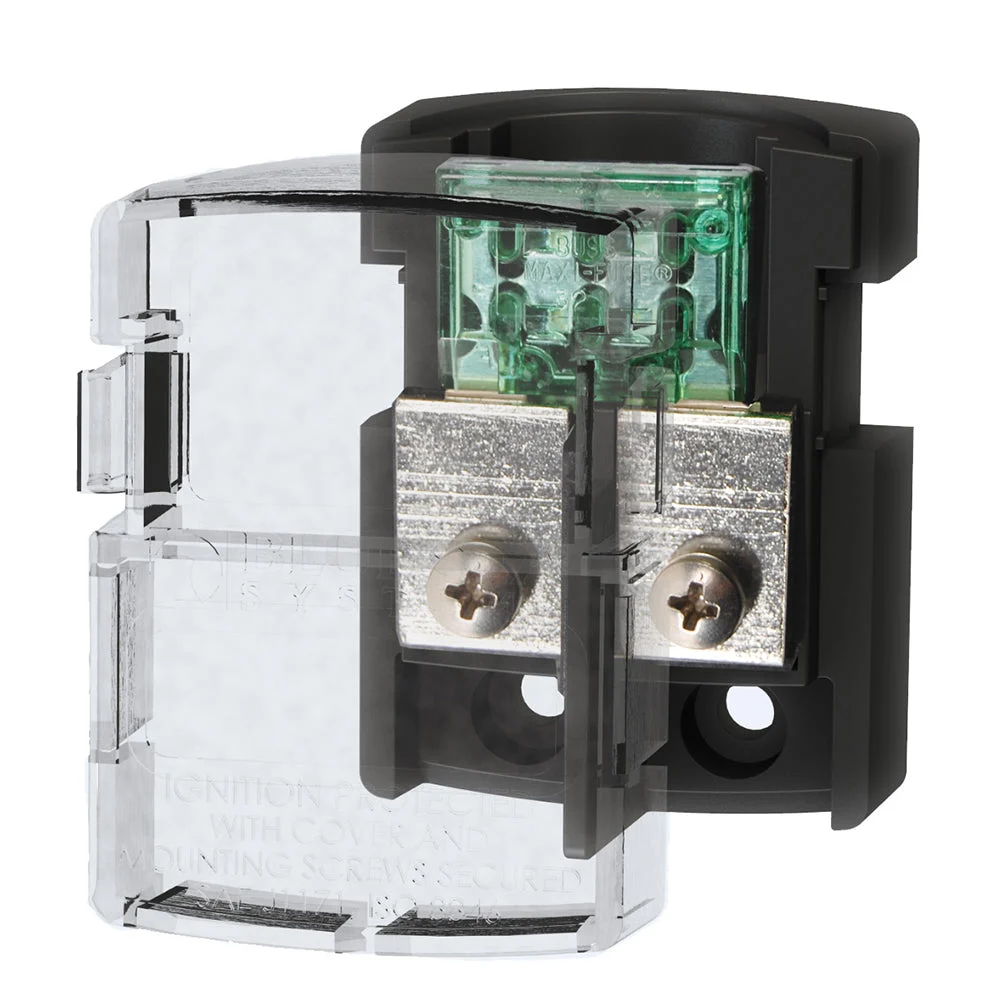

MAXI Fuse Block – 30-80A
Ignition Protected

• Replaces Part Number 5006
• MAXI Range 30-80A
• Accepts wire 18-4 AWG
• Versatile wiring orientations
• Label Recess

Specifications:

• Maximum Amperage: 80A
• Maximum Voltage: 32V DC
• Mounting: #10 Screws
• Wire Size:18-4 AWG

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

“We strive to provide new innovative products to meet the need of the rapidly changing world we live in. Our goal is to provide products made with the finest material and consistent and high quality processes. Features MAXI Fuse Block Replaces Part Number 5006 Maxi Range 30-80A Accepts wire 18-4 AWG Versatile wiring orientations Label Recess. Specifications Maximum Amperage: 80A. Maximum Voltage: 32V DC. Mounting: #10 Screws Wire. Size: 18-4 AWG. Weight: 0.3 lbs.”
SKU: NVN-64446
MPN: 5006100-BSS
UPC: 632085500610
