Description

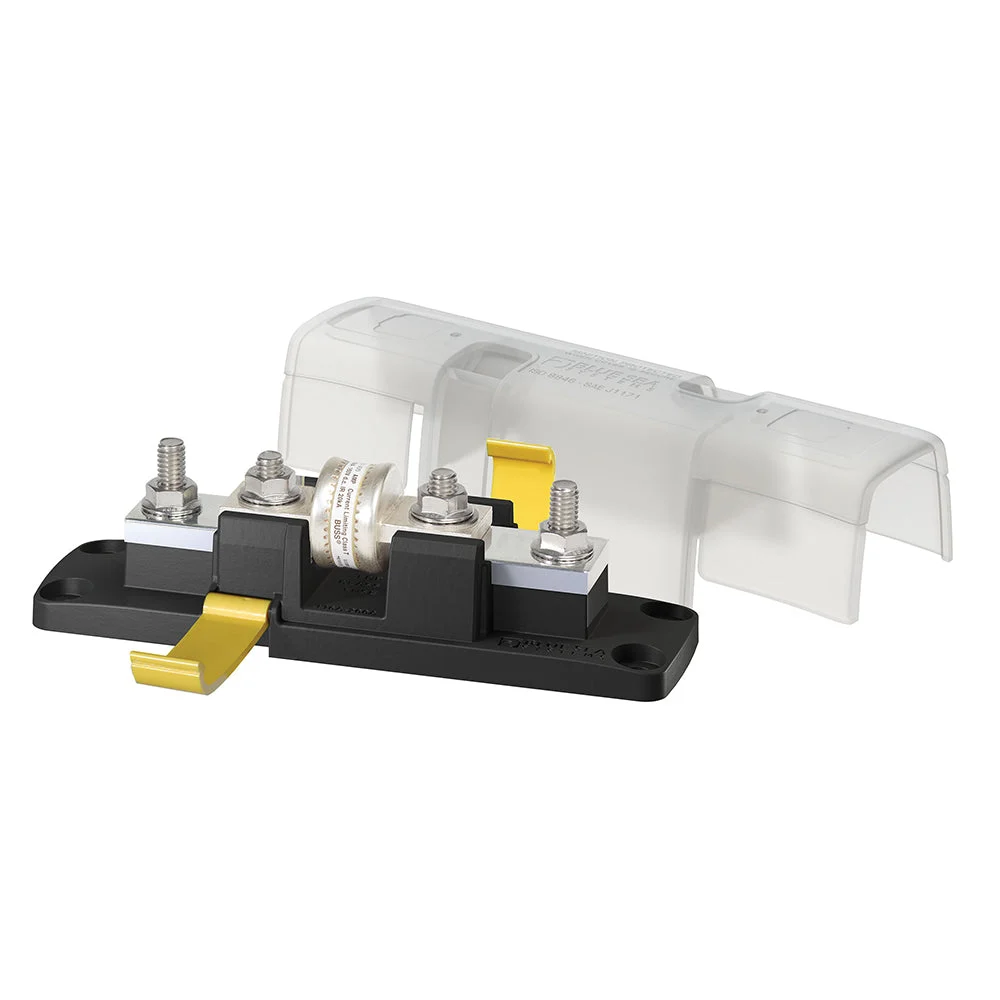

Class T Fuse Block with Insulating Cover – 110 to 200A
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics

• Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• Stud design ensures secure fuse mounting even with high heat
• Stainless steel studs provide resistance to corrosion and high torque
• One-piece stainless flange nuts ensure safe and secure connections
• UL 94-V0 base resists high heat

Specifications:

• Cable Size: Up to 4/0 AWG
• Ignition Protected: Yes
• Maximum Amperage: 200A
• Maximum Voltage: 160V DC
• Fuse Mounting Block: Tin-Plated Copper
• Terminal Stud Size: 5/16″-18 (M8)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

It is allowed to use class T fuses to provide fast-acting circuit protection for inverters and other electronic equipment. The four studs are designed to provide enough space around the connecting studs for installation…
SKU: NVN-64351
MPN: 5007100
UPC: 00632085500719
