Description

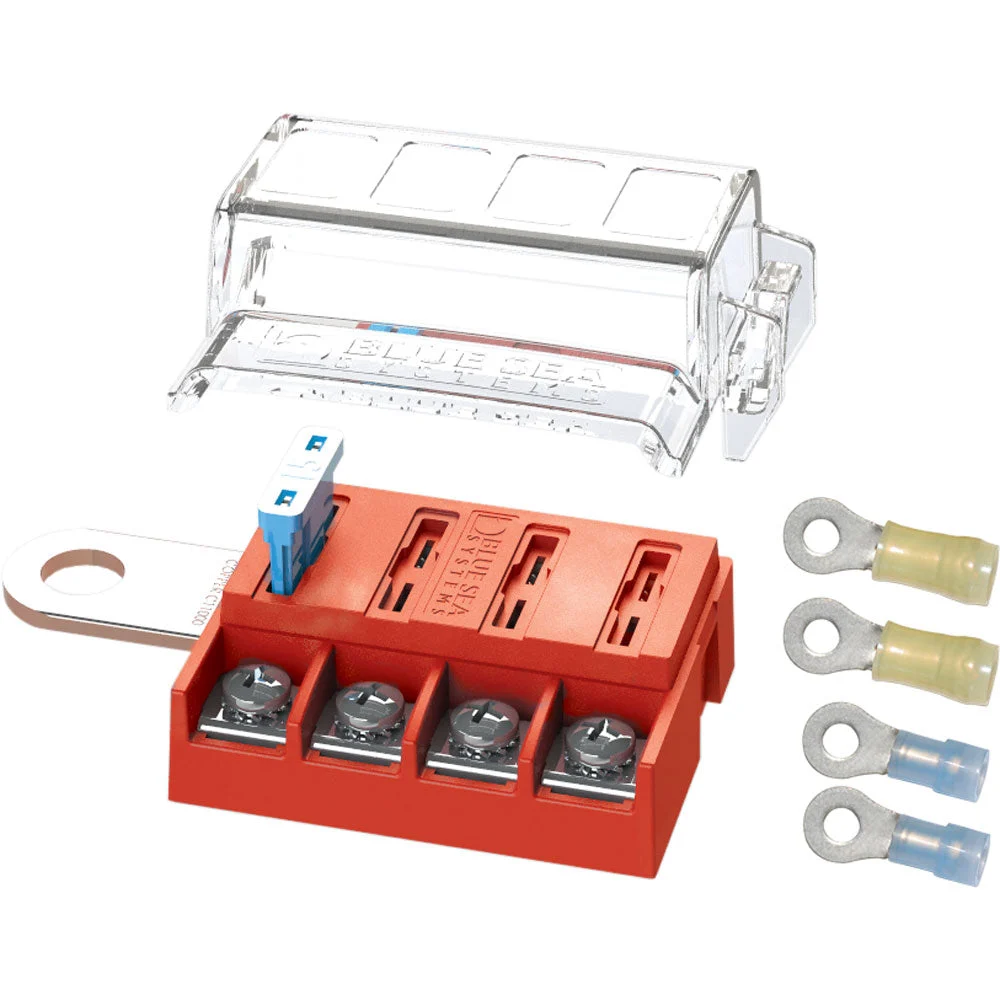

ST-Blade Battery Terminal Mount Fuse Block
Features:

• Easy to install 4 ATO/ATC fused circuits
• Mounts on the battery terminal stud
• Screw terminals for securing wires
• Four Nylon insulated ring terminals included
• Insulating cover included
• Accepts Small Format Circuit Labels
• Includes 1 fuse

Specifications:

• Circuits: 4
• Maximum Amperage: 100A per block, 30A per circuit
• Maximum Voltage: 32V DC
• Mounting:Clearance for 3/8″ [M10] stud
• Screw Terminal Type: #8-32 Screws with captive star lock washer

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems ST Blade 4-circuit battery terminal installation fuse box (5023). This product is very suitable for use in all marine applications. It will meet the needs of both parties…
SKU: NVN-54775
MPN: 5023-BSS
UPC: 632085050238
