Description

Provides surface mount circuit protection for ATO ® and ATC ® Fuses in a compact footprint. Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment. Insulating cover meets ABYC/USCG insulation requirements.

Blue Sea 5046BSS Attributes

• Power Rating: 32 Volt/ 100 Ampere Per Block/ 30 Ampere Per Circuit
• Type: Water Resistant
• Circuit Type: 8 Circuit Positions
• Fuse Type: ATO/ ATC Blade
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: Yes

Blue Sea 5046BSS Features & Benefits

• Tin-Plated Copper Buses And Fuse Clips
• Single Side Design Allows Wire Entry From One Side To Minimize Footprint
• Accepts Ring Or Snap Fork Type Terminals
• Provides Surface Mount Circuit Protection
• No Supplier Warranty

Blue Sea 5046BSS Technical Bulletins

• 5046.pdf
• 5046.pdf

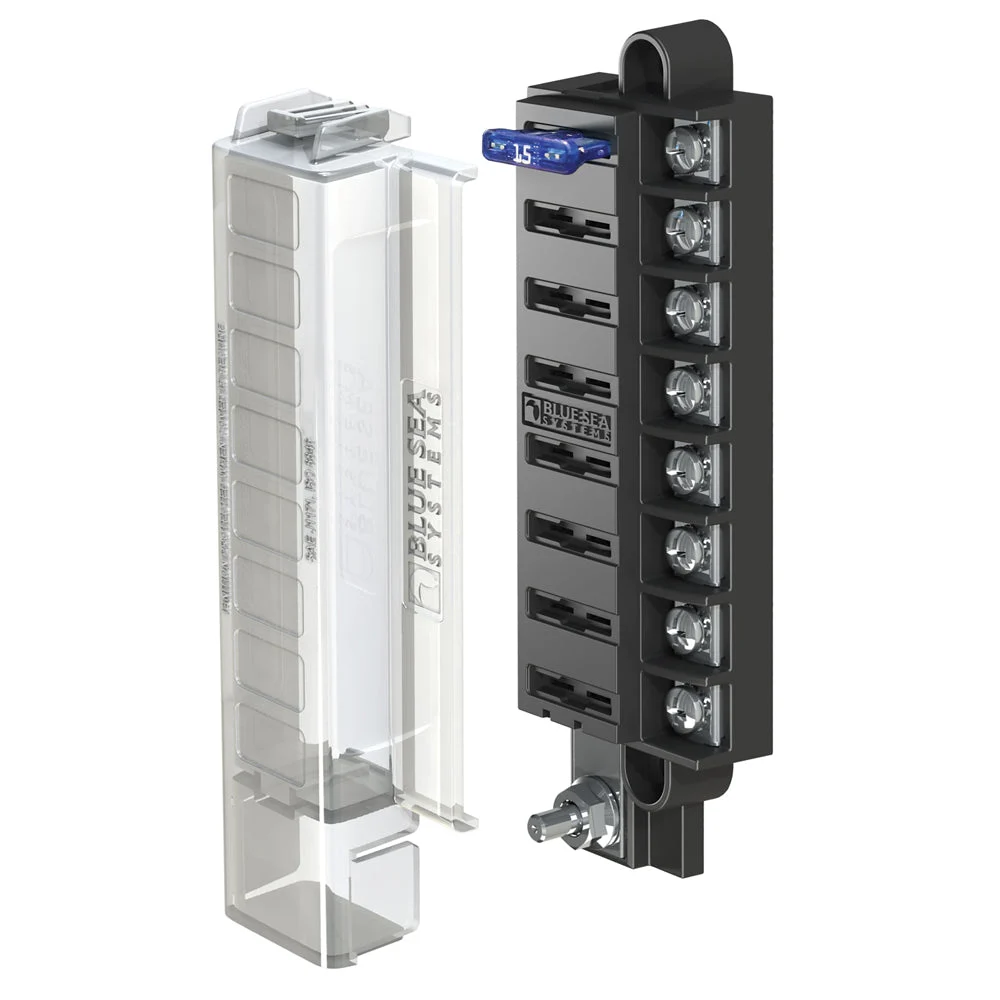

ST Blade Compact Fuse Blocks – 8 Circuits w/Cover
Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

• Compact common source fuse block
• Accepts ATO® and ATC® fast acting blade fuses
• Single side entry wiring
• Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
• Insulating cover meets ABYC/USCG insulation requirements
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Small format standard and custom labels available

Specifications

• Circuits:8
• Maximum Amperage: 100A per block / 30A per circuit
• Maximum Voltage:32V DC
• Mounting:#8 Screw (M4)
• Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems ST Blade compact 8-circuit fuse box. The eight-circuit fuse box can be installed almost anywhere. It is an effective protection method for the fuse box to prevent…
SKU: NVN-58586
MPN: 5046-BSS
UPC: 632085050467
