Description

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 5131BSS Attributes

• Type: Bolt-On
• Industry Classification: ANL
• Ampere Rating (A): 250 Amp
• Quantity: Single
• Slow Blow: No

Blue Sea 5131BSS Features & Benefits

• Silver-Plated Connector Blades For Corrosion Resistance
• Visible Indication Of Blown Condition
• 6,000 Ampere Interrupt Capacity (AIC) Satisfies ABYC Requirements For Main DC Circuit Protection On Large Battery Banks
• For Use With Blue Sea Systems’ ANL Fuse Blocks
• Ignition Protected (Conforming To SAE J1171)- Safe For Installation Aboard Gasoline Powered Boats (35 To 500 Amp Only)
• Clear Insulating Cover, Satisfies ABYC/USCG Requirements
• Large Heat Dissipating Tin-Plated Copper Mounting Blocks
• No Supplier Warranty

Blue Sea 5131BSS Technical Bulletins

• ANL_Fuse.pdf

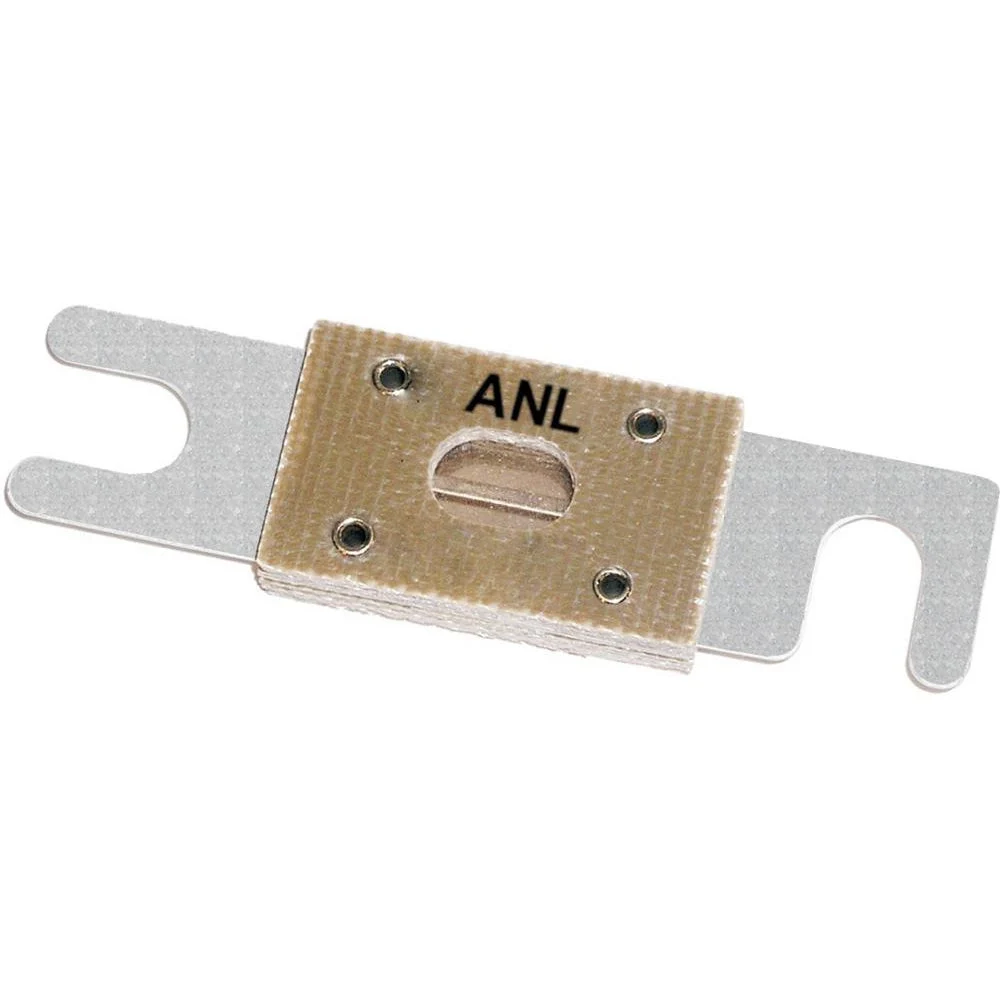

5131
ANL Fuse
250A

• Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats
• Silver-plated connector blades for corrosion resistance
• Visible indication of blown condition
• 6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks
• For use with Blue Sea Systems’ ANL Fuse Blocks

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea Systems fuse ANL Stud Mnt 250A5131. These are designed by Blue Sea Systems’ professional product professionals to work in a heavy-duty and reliable environment.
SKU: NVN-20445
MPN: 5131-BSS
UPC: 632085051310
