Description

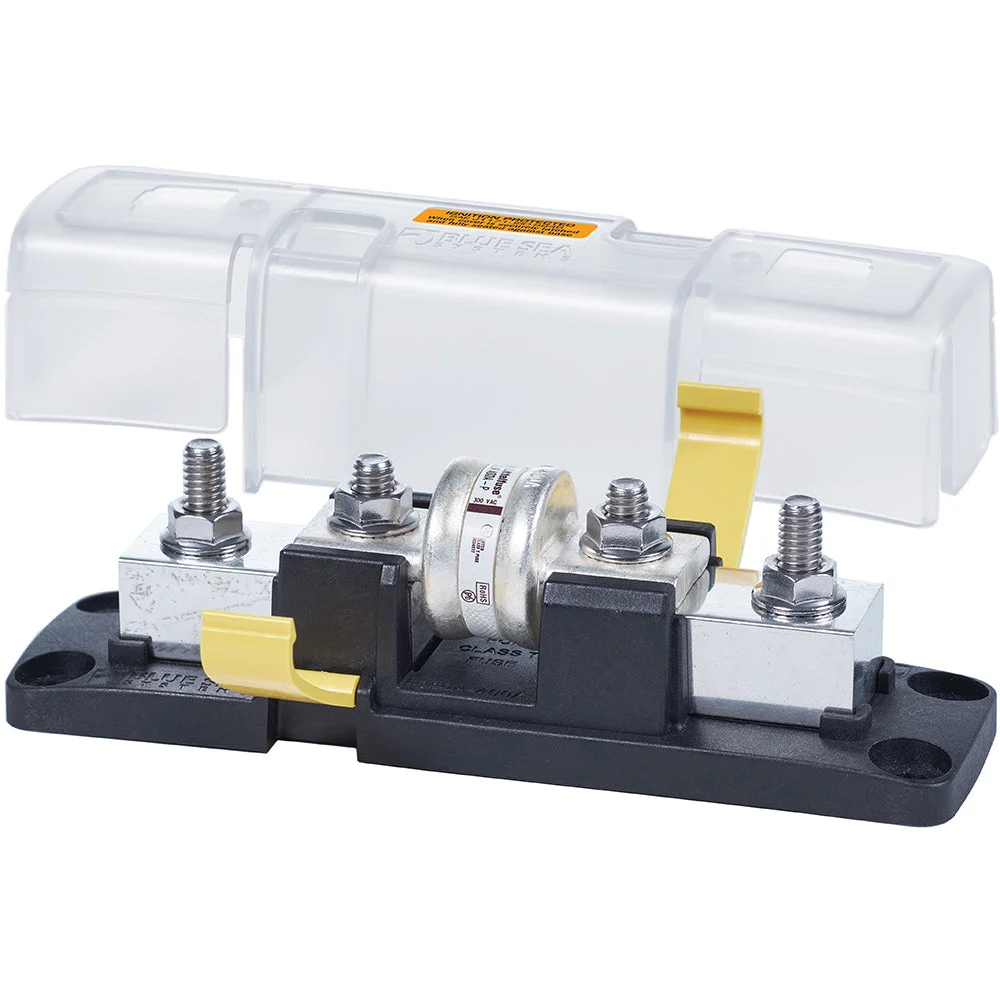

Class T Fuse Block with Insulating Cover – 225 to 400A
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics

• Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• Stud design ensures secure fuse mounting even with high heat
• Stainless steel studs provide resistance to corrosion and high torque
• One-piece stainless flange nuts ensure safe and secure connections
• UL 94-V0 base resists high heat

Specifications:

• Cable Size: Up to 4/0 AWG
• Ignition Protected: Yes
• Maximum Amperage: 400A
• Maximum Voltage: 160V DC
• Fuse Mounting Blocks: Tin-Plated Copper
• Terminal Stud Size: 3/8″-16 (M10)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Allows the use of Class T fuses to provide fast-acting circuit protection for inverters and other electronic equipment. The four stud design provides enough space around the connection stud to install…
SKU: NVN-64355
MPN: 5502100-BSS
UPC: 632085550219
