Description

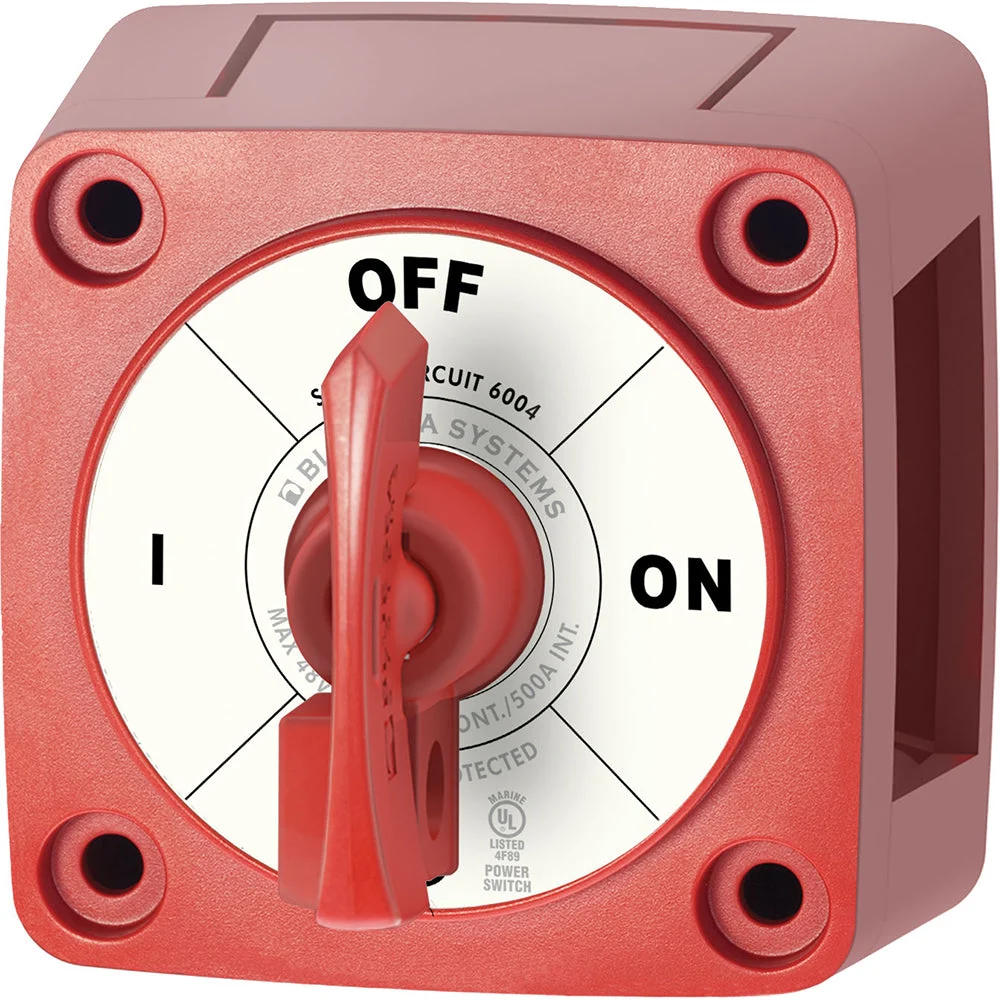

Single Circuit ON-OFF with Locking Key – Red
300 Amps continuous rating for outboards and small gasoline or diesel engines

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8″ (M10) ring terminals
• 7/8″ (22 mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• One-piece stainless flange nuts ensure safe and secure connections
• Isolating cover protects rear contacts
• Breakout tabs allow wire access in any direction

Specifications:

• Switch Type: Single Circuit ON-OFF
• Color: Red
• Maximum Voltage: 48V DC
• Continuous Rating: 300A
• Intermittent Rating: 500A
• Cranking Rating 30 sec: 900A

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Small battery switch, MFG#6004, red, continuous 300A, internal 500A, 48VDC. Location: Single circuit switch. 2.83 high x 2.83 watts x 3.1 inches tab with padlock.
SKU: NVN-64357
MPN: 6004-BSS
UPC: 632085060046
