Description

Commonly used on small boats or vehicles where the batteries are located near the operator. Blue Sea create innovative, high quality electrical products to improve the safety, simplicity, and reliability of boating.

Blue Sea 6007200BSS Attributes

• Used To: Switch Isolated Battery Banks To All Loads/ To Combine Battery Banks To All Loads
• Number Of Position: 4
• Battery Input: 2 Batteries
• Voltage Rating: 32 Volt
• Ampere Rating: 500 Amp Intermittent Rating And 300 Amp Continuous Rating
• Color: Black
• With Alternator Field Disconnect: No
• With Ignition Protection: No

Blue Sea 6007200BSS Features & Benefits

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Terminal Stud Design Never Loosens Over Time
• One Piece Stainless Flange Nut Ensure Safe And Secure Connections
• Isolating Cover Protects Rear Contacts
• Breakout Tabs Allow Wire Access In Any Direction
• No Supplier Warranty

Blue Sea 6007200BSS Installation Instructions

• 6007_web_version.pdf

Blue Sea 6007200BSS Technical Bulletins

• 6007_web_version.pdf
• M_Switch_Knob.pdf

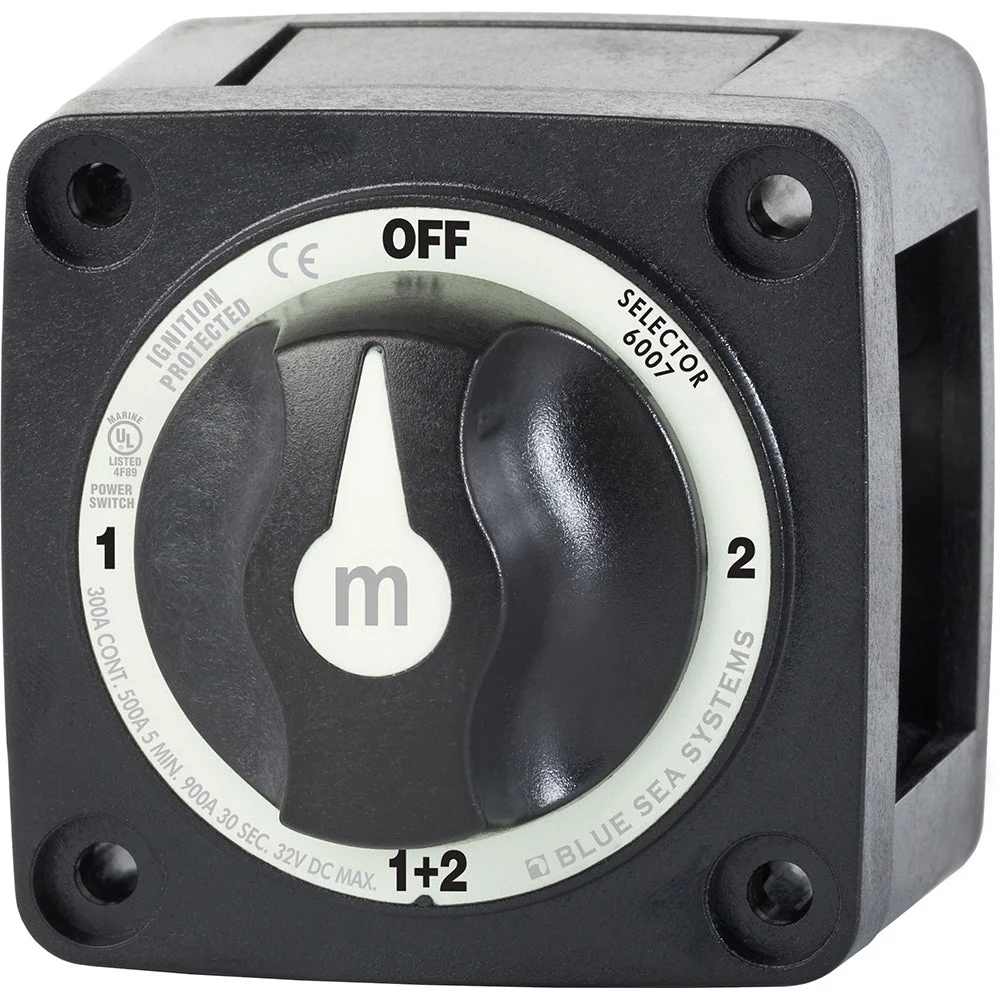

6007200 – Black
m-Series (Mini) Battery Switch Selector
Make before break contact design allows switching between battery banks without power interruption
Selector

• Switches battery bank 1 or battery bank 2 or both to a single load using one switch

Features:

• Ignition protected – Safe for installation aboard gasoline powered boats
• Case design allows surface, front panel, or rear panel mounting
• Isolating cover with snap-on sections protects rear contacts
• 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
• 7/8″ (22.22mm) stud length to accept multiple cable terminals
• Ideal for marine or RV applications
• All non-corrosive marine grade metals
• Molded in durable reinforced polycarbonate
• Tactile textures indicate knob position by feel only
• Label with international ON/OFF legends
• Removable key or knob remains positively retained
• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Selector 4 position. Switch the isolated battery pack to all loads, or combine the battery pack to all loads, IP66 waterproof, ISO 8846 and comply with ABYC requirements.
SKU: NVN-44191
MPN: 6007200-BSS
UPC: 632085600723
