Description

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 6008BSS Attributes

• Used To: Switch Single Battery To Single Load Group
• Number Of Position: 3
• Battery Input: 2 Batteries
• Voltage Rating: 32 Volt
• Ampere Rating: 500 Amp Intermittent Rating And 300 Amp Continuous Rating
• Color: Red
• With Alternator Field Disconnect: No
• With Ignition Protection: No

Blue Sea 6008BSS Features & Benefits

• Switches Isolated Battery Banks To All Loads Or Combines Battery Banks To All Loads
• No Supplier Warranty

Blue Sea 6008BSS Installation Instructions

• 6008_web_version.pdf

Blue Sea 6008BSS Technical Bulletins

• M_Switch_Knob.pdf

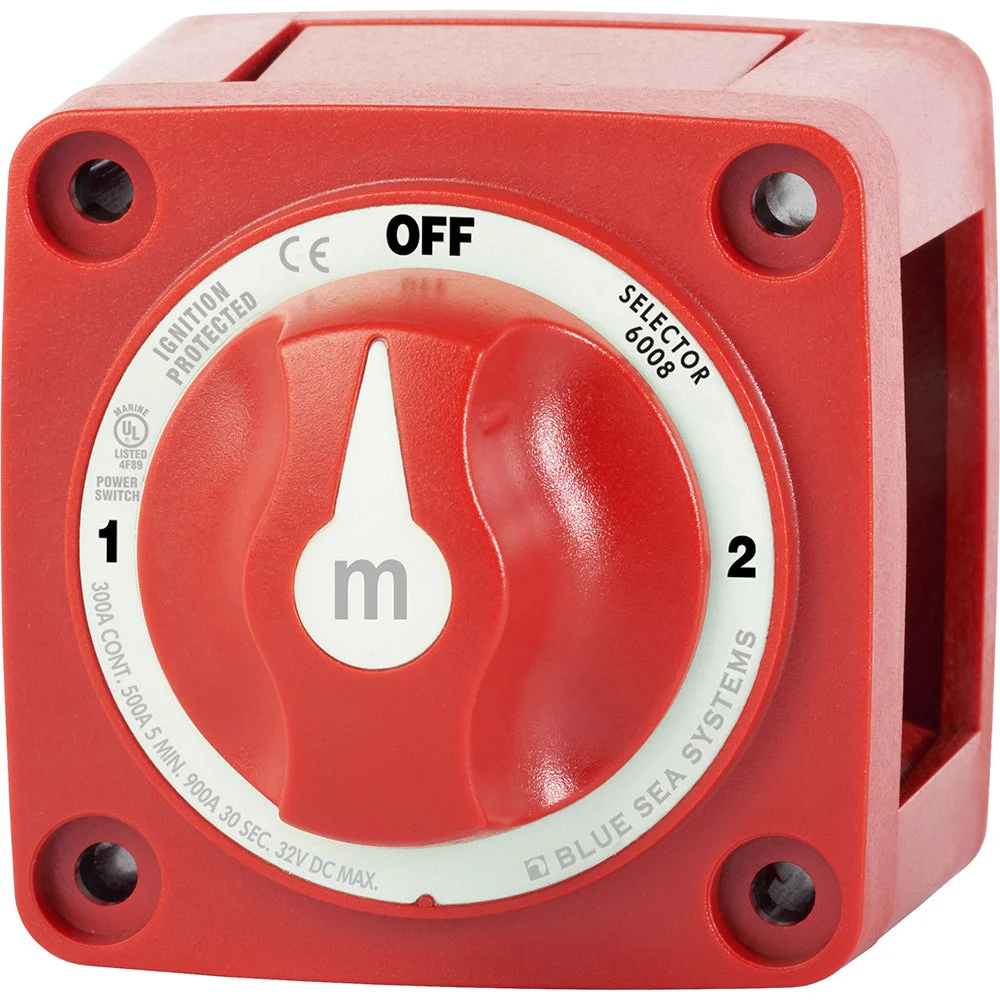

6008 M-Series Battery Switch 3 Position – Red

Switches a single battery to a single load group.

Features:

• Ignition protected—safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting

Specifications:

• Switch Type: Selector 3 Position
• Color: Red
• Battery Combine: No
• Switch Positions: 3
• Maximum Voltage: 32V DC

Selector 3 position. Switch a single battery to IP66 waterproof IP 8846 single load group, and meet ABYC requirements.
SKU: NVN-75116
MPN: 6008-BSS
UPC: 632085060084
