Description

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 6008200BSS Attributes

• Used To: Switch Isolated Battery Banks To All Loads/ To Combine Battery Banks To All Loads
• Number Of Position: 3
• Battery Input: 2 Batteries
• Voltage Rating: 32 Volt
• Ampere Rating: 500 Amp Intermittent Rating And 300 Amp Continuous Rating
• Color: Black
• With Alternator Field Disconnect: No
• With Ignition Protection: No

Blue Sea 6008200BSS Features & Benefits

• Switches Isolated Battery Banks To All Loads Or Combines Battery Banks To All Loads
• No Supplier Warranty

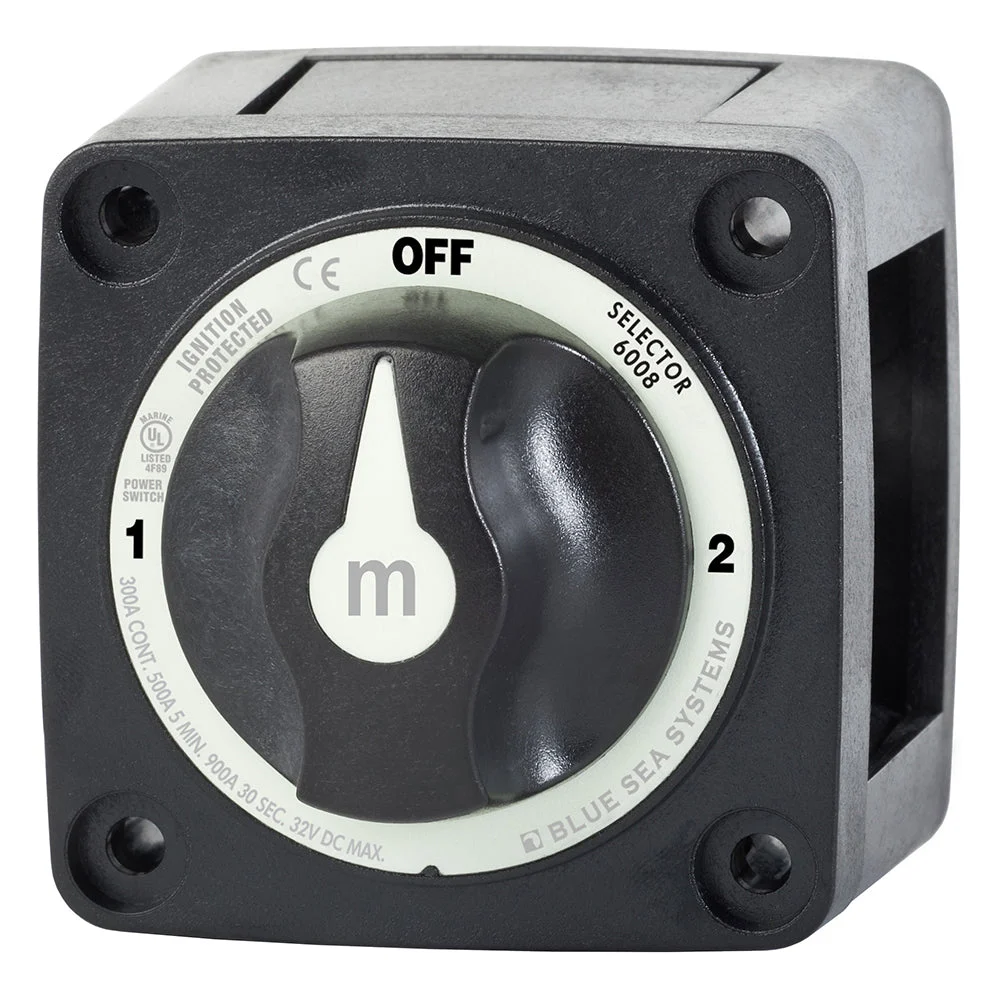

6008200 m-Series Selector 3 Position Battery Switch – Black

Switches isolated battery banks to all loads or combines battery banks to all loads.

Specifications:

• Switch Type: Selector 3 Position
• Color: Black
• Switch Positions: 3
• Battery Combine: No
• Alternator Field Disconnect: No
• Maximum Voltage: 32V DC
• Continuous Rating: 300A
• Battery Inputs: 2

The position of selector 3. Switch a single battery to IP66 waterproof IP 8846 single load group, and meet ABYC requirements.
SKU: NVN-75117
MPN: 6008200
UPC: 632085600822
