Description

Commonly used on small boats or vehicles where the batteries are located near the operator. Blue Sea create innovative, high quality electrical products to improve the safety, simplicity, and reliability of boating.

Blue Sea 6010BSS Attributes

• Used To: Simultaneously Switch Two Isolated Battery Banks
• Number Of Position: 2
• Battery Input: 2 Batteries
• Voltage Rating: 32 Volt
• Ampere Rating: 450 Amp Intermittent Rating And 300 Amp Continuous Rating
• Color: Red
• With Alternator Field Disconnect: No
• With Ignition Protection: No

Blue Sea 6010BSS Features & Benefits

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Terminal Stud Design Never Loosens Over Time
• One Piece Stainless Flange Nut Ensure Safe And Secure Connections
• Isolating Cover Protects Rear Contacts
• Breakout Tabs Allow Wire Access In Any Direction
• No Supplier Warranty

Blue Sea 6010BSS Installation Instructions

• 6010_web_version.pdf

Blue Sea 6010BSS Technical Bulletins

• M_Switch_Knob.pdf

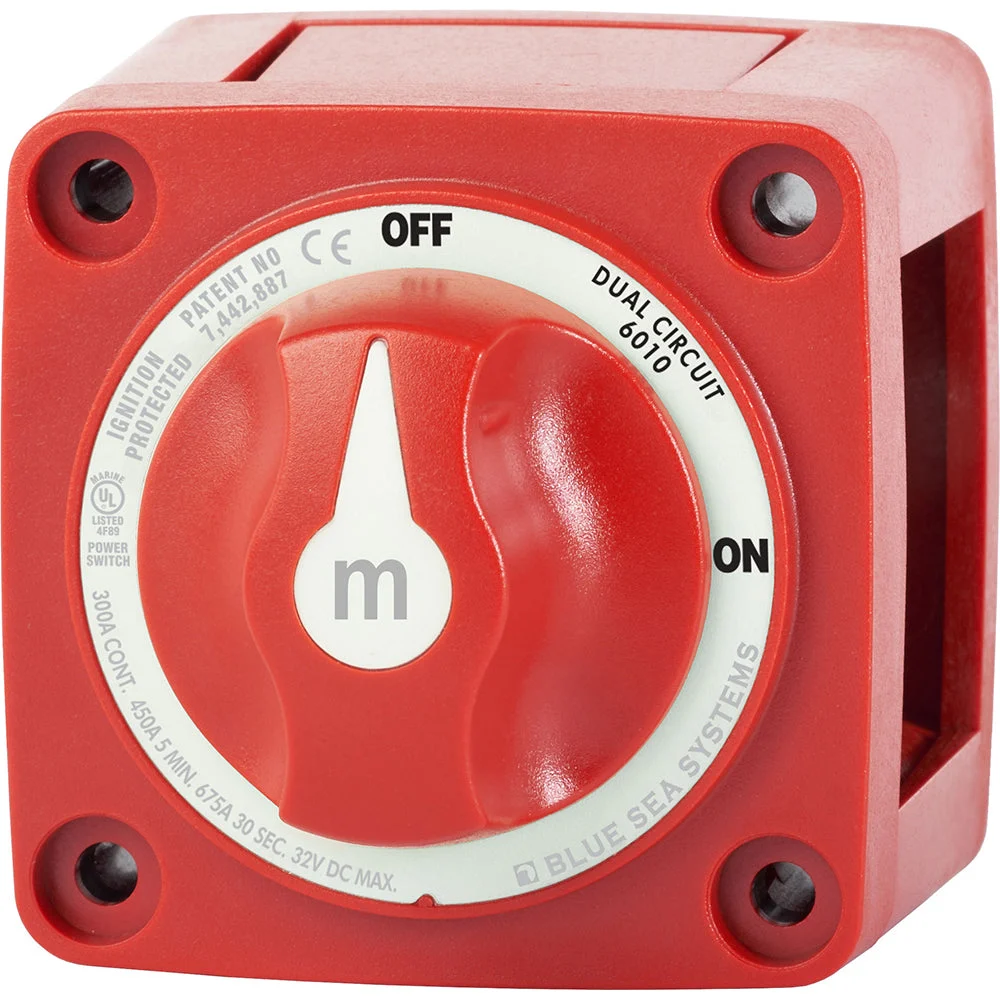

6010
m-Series (Mini) Battery Switch
Dual Circuit™

• Switches both positive and negative lines simultaneously with one simple ON/OFF switch meeting European and metal boat requirements for a double pole switch
• Switches circuits of different voltages, such as 12 volt and 24 volt, simultaneously with one simple ON/OFF switch

Features:

• Ignition protected – Safe for installation aboard gasoline powered boats
• Case design allows surface, front panel, or rear panel mounting
• Isolating cover with snap-on sections protects rear contacts
• 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
• 7/8″ (22.22mm) stud length to accept multiple cable terminals
• Ideal for marine or RV applications
• All non-corrosive marine grade metals
• Molded in durable reinforced polycarbonate
• Tactile textures indicate knob position by feel only
• Label with international ON/OFF legends
• Removable key or knob remains positively retained
• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

“Dual Circuit Switches both positive and negative lines simultaneously with one simple ON/OFF switch meeting European and metal boat requirements for a double pole switch. Switches circuits of different voltages such as 12 volt and 24 volt simultaneously with one simple ON/OFF switch. Features: Ignition protected. Safe for installation aboard gasoline powered boats. Case design allows surface, front panel or rear panel mounting.”
SKU: NVN-20506
MPN: 6010-BSS
UPC: 632085060107
