Description

Circuit Breaker Push Button QC 15A

Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels.

Blue Sea 7056BSS Attributes

• Ampere Rating: 15 Amp
• Voltage Rating: 32 Volt
• Reset Type: Manual
• Terminal Connection: Blade
• Type: Thermal
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7056BSS Features & Benefits

• Compact Design Enables High Density Circuit Protection Configurations
• Push-To-Reset Operation
• “Trip Free” Design Cannot Be Held “ON” During Fault Current Condition
• Ignition Protected – Safe For Installation Aboard Gasoline Powered Boats
• Optional Push Button Waterproof Boot Protects Circuit Breaker In Wet Environments, Replaces Dress Nut Mounting On Circuit Breakers And Resists Discoloration And Cracking
• No Supplier Warranty

Blue Sea 7056BSS Technical Bulletins

• PushButton_CB.pdf

7056

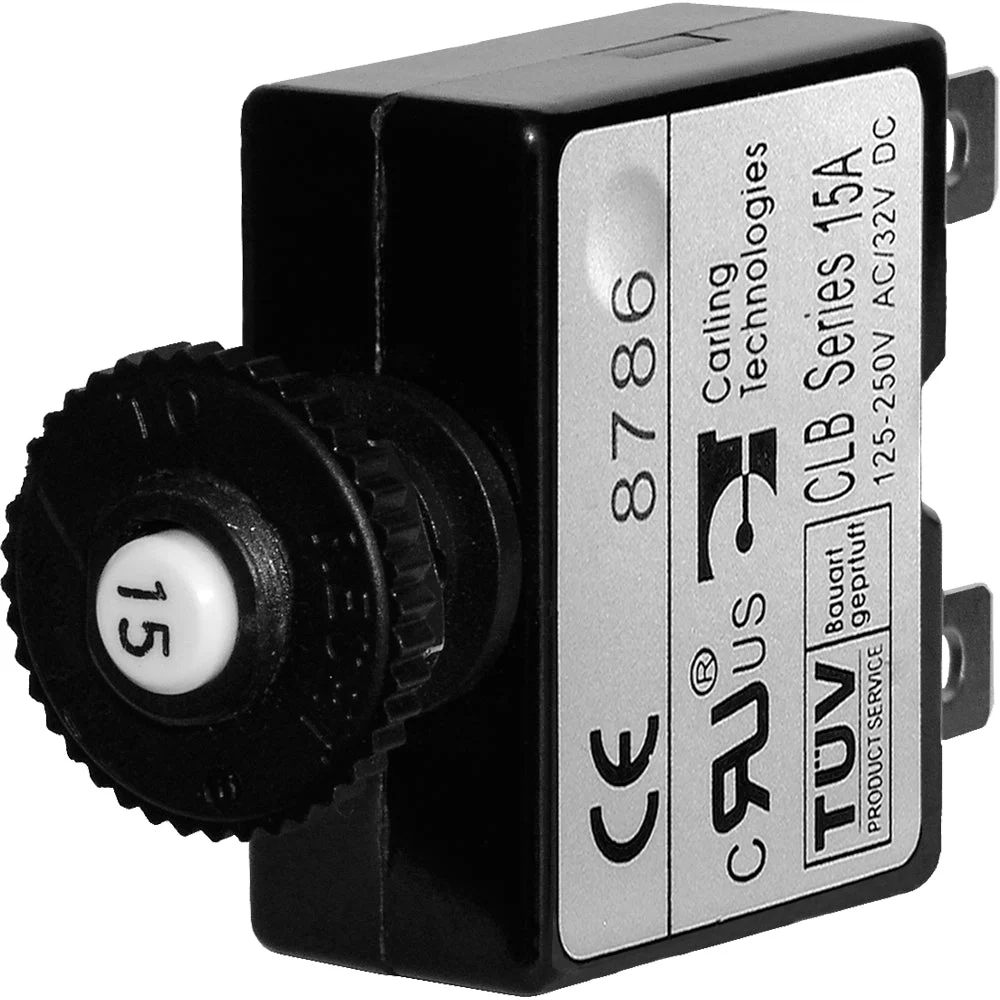

Push Button Thermal with Quick Connect Terminals
15A

• Ideal for 24-hour circuit protection
• Incorporated into Blue Sea Systems’ Waterproof Circuit Breaker panels and main Battery Main Distribution Panels
• Push to reset operation
• “Trip Free” design cannot be held “ON” during fault current condition
• Ignition protected – Safe for installation aboard gasonline powered boats
• With male quick connect terminals

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Circuit breaker, press reset only, panel mount, DC 15 Amp, MFG#7056, non-switchable, thermal, maximum 32 VDC. 3/8″ diameter panel opening. 1.4″ H x .57″ W x 2.3″ D. 1/4″ blade…
SKU: NVN-20540
MPN: 7056-BSS
UPC: 632085070564
