Description

Thermal circuit breakers provides medium duty circuit protection for 25 to 150 Amp loads when switching and circuit protection are both required.

Blue Sea 7186BSS Attributes

• Ampere Rating: 80 Amp
• Voltage Rating: 48 Volt
• Reset Type: Manual
• Terminal Connection: Screw
• Type: Thermal
• Number of Poles: 2
• Quantity: Single
• Estimated Install Time (Hours): 0.25

Blue Sea 7186BSS Features & Benefits

• Visible Reset Lever Shows Open Condition
• Weather Resistant. Combines Switching And Circuit Breaker Function Into One Unit
• Meets SAE J1171 External Ignition Protection Requirements
• Ignition Protected – Safe For Installation Aboard Gasoline Powered Boats
• Trip Free Design
• No Supplier Warranty

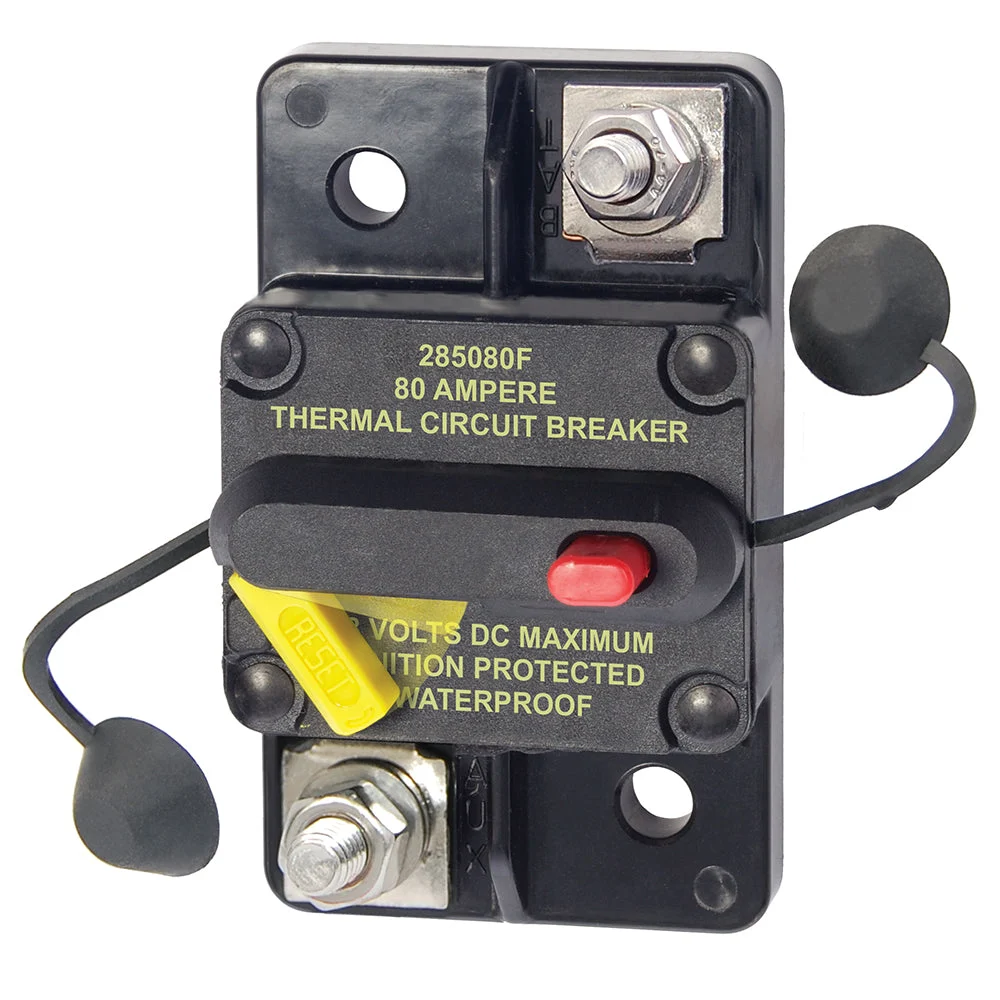

285-Series Thermal Circuit Breaker Surface Mount, 80A

• Drop-in replacement for 185-series Circuit Breakers
• Visible reset lever shows open condition
• “Trip Free” – cannot be held closed after trip

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Product status: New285 series thermal circuit breaker is surface mounted, which can replace the 80A visible reset rod of the 185 series circuit breaker. It displays the disconnected state “tripping…
  SKU: NVN-40637
  MPN: 7186
  UPC: 632085171865
