Description

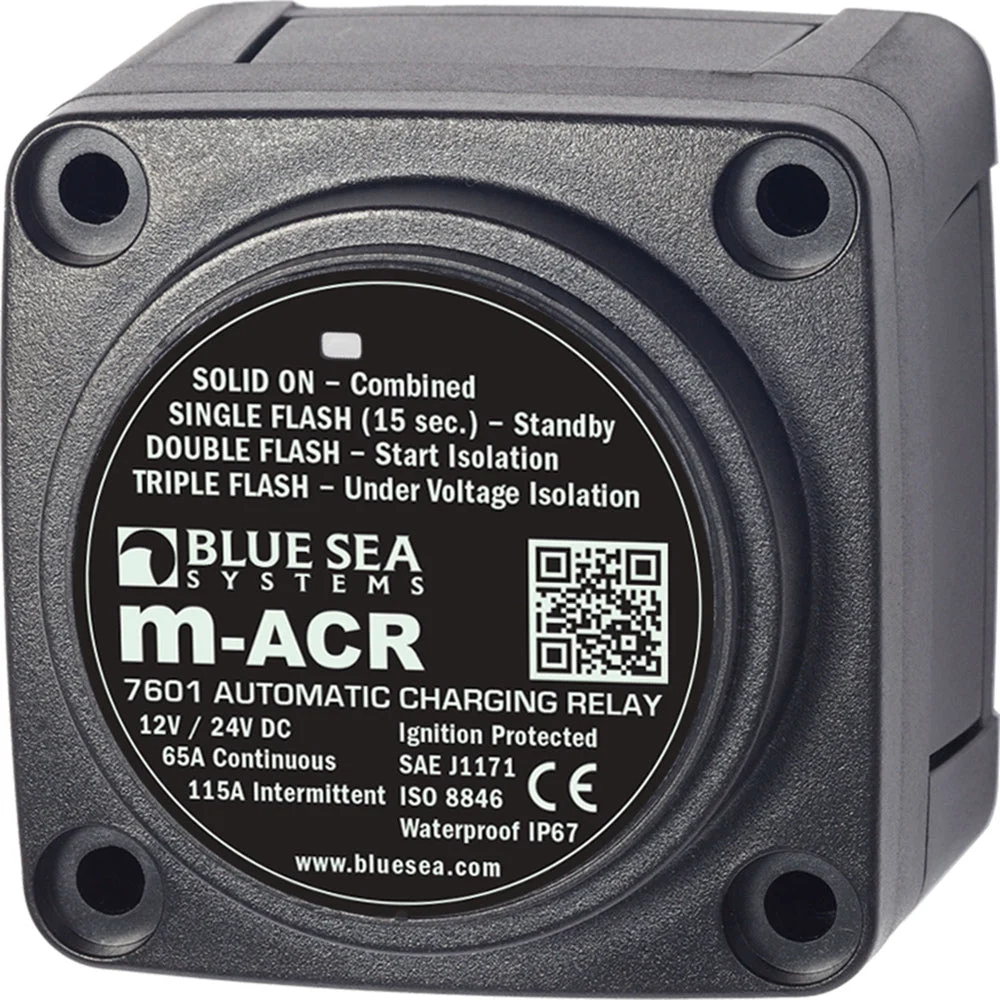

7601 DC Mini ACR Automatic Charging Relay – 65 Amp
Features:

• 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines
• Compact case design allows surface and panel mounting
• Senses charging on two battery banks
• Snap-on cover insulates terminal connections
• LED indicates ACR status
• 1/4″ x .032″ male quick connect terminal for ground
• 5/8″ (16 mm) stud length to accept multiple cable terminals
• 12V DC voltage input

Specifications:

• Intermittent Rating: 5 min.: 115A
• Terminal Stud Size: 1/4″-20
• Relay Contact Position: Open (30 sec.): 12.75V DC
• Continuous Rating: 65A
• Maximum Torque: 75 in-lb (8.5 Nm)
• Relay Contact Position – Open High: 16.0V DC
• Amperage Operating Current: 175mA (Combine)
• Relay Contact Position: Combine (30 sec.): 13.0V DC
• Under Voltage Lockout: 9.5V DC
• Amperage Operating Current: 15mA (Open)
• Relay Contact Position: Combine (2 min.): 13.6V DC
• Maximum Cable Size: 1/0 AWG
• Relay Contact Position: Open (10 sec.): 12.35V DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

M series Acr-12 / 24V DC 65A M series Acr-12 / 24V DC 65A automatically combines two battery packs during charging, and isolates the batteries when discharging or starting to discharge.
SKU: NVN-47525
MPN: 7601-BSS
UPC: 632085076016
