Description

500 Ampere Magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine.

Blue Sea 7622BSS Attributes

• Operating Voltage: 12 Volt
• Ampere Rating: 500 Amp Continuous/ 700 Amp Intermittent

Blue Sea 7622BSS Features & Benefits

• Automatically Manages The Charging Of Two Large Battery Banks
• Allows Paralleling Of Battery Banks For Emergency Starting
• 500 Ampere Continuous Rating To Support High-Output Alternators
• Magnetic Latch (ML) – ACR Draws Very Low Current In The “ON” Or “OFF” States, And Draws Moderate Current For Very Short Time When Changing State
• Dual Sensing- Senses Charge On Both Battery Banks
• Start Isolation (SI)- Can Be Configured For Temporary Isolation Of House Loads From Engine Circuit During Engine Cranking To Protect Sensitive Electronics
• Engine Isolation (EI)- Can Be Configured For Isolation Of Two Engines While Both Are Running To Protect Engine Electronics And Maximize Alternator Output Senses Charging On Two Battery Banks
• LED Output To Remotely Indicate When Batteries Are Combined, Isolated, In Voltage Lockout, Or In Start Or Engine Isolation
• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance/Silver Alloy Contacts Provide High Reliability For Switching Live Load
• No Supplier Warranty

Blue Sea 7622BSS Installation Instructions

• 990180180-005.pdf

7622
Manual Control: Yes
Coil Voltage: 12v
Features:

• Manual control switch provides an added level of safety allowing control with or without power, and offering “Locked Off” capability for servicing
• Includes ML-Series Remote Control Contura Switch PN 2146
• 500 Ampere continuous rating
• Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the “ON” or “OFF” states, and draws moderate current for very short time when changing state
• Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
• Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
• Senses charging on two battery banks
• Supports high-output alternators up to 500 Amps
• LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation
• 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8″ (22mm) stud length accepts multiple cable terminals
• Label recesses for circuit protection
• Silver alloy contacts provide high reliability for switching live loads

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

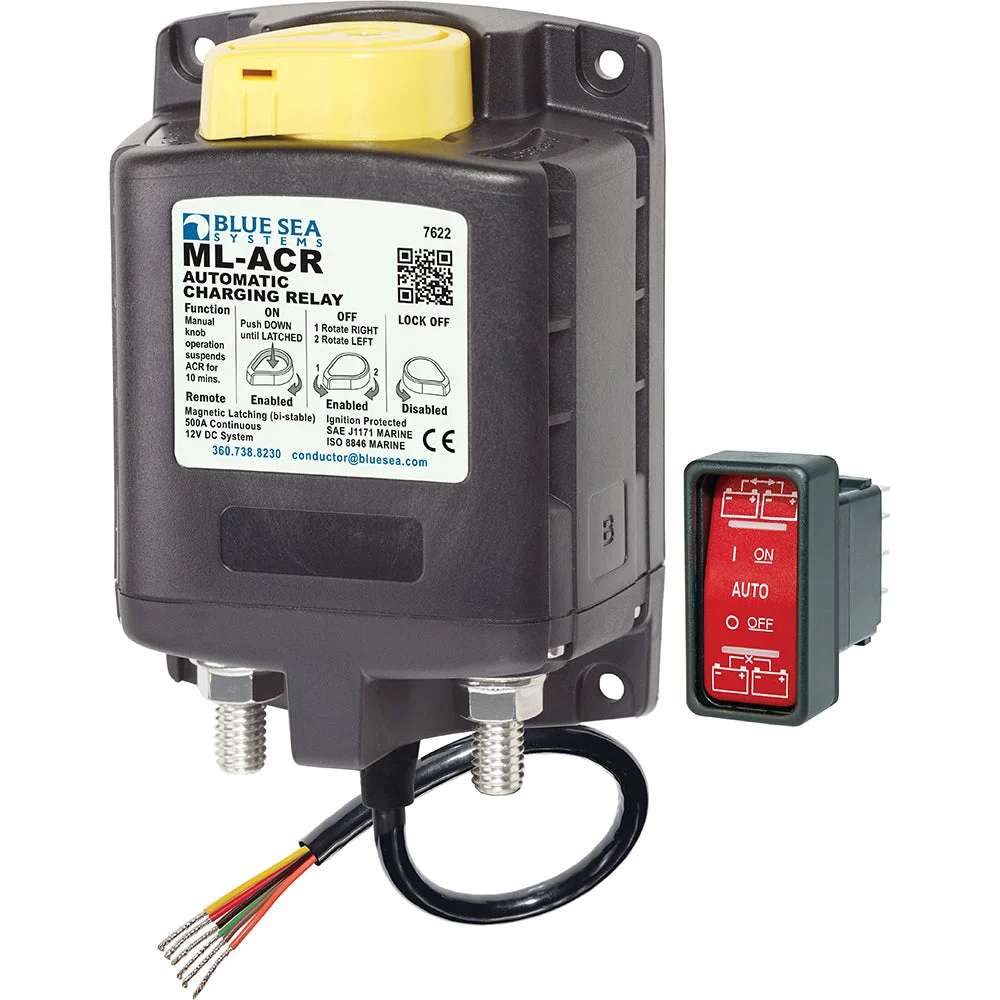

“Blue Sea Systems ML-Series Automatic Charging Relays offer 500A magnetic latching (bi-stable) relays that automatically combine batteries during charging and isolates batteries when discharging and starting engine. A magnetic latching (ML) relay draws very low current in the ON state. Start Isolation (SI) can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics. Engine Isolation (EI) can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output. Manual override knob provides an added level of safety, allowing control with or without power and offering LOCKED OFF capability for servicing. LED output to remotely indicate switch state – requires optional LED or Remote Control Contura Switch with integrated LED. 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance. 7/8″ (22mm) stud length accepts multiple cable terminals. One-piece stainless flange nuts ensure safe and secure connections. Label recesses for circuit identification. Silver alloy contacts provide high reliability for live switching.”
