Description
Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.
Blue Sea 7720BSS Attributes
- Power Rating: 32 Volt
- Type: Installation Aboard Gasoline Or Diesel Powered Boats
- Fuse Type: AMI/ MIDI
- Status Indicator Type: No Status Indicator
- Cover Style: Protective Cover
- Includes Flashers: No
- Includes Fuses: No
- Includes Horn Relay: No
- Includes Mounting Brackets: No
- Includes Terminals: Yes
Blue Sea 7720BSS Features & Benefits
- Ignition Protected For Installation Aboard Gasoline Or Diesel Powered Boats
- Sealed Cover Protects Fuses From The Harsh Marine Environment
- Cover Breakouts Allow Wire Access In Any Direction
- 200 Ampere Maximum With 4/0 Cable
- Accepts Blue Sea Systems Square Format Standard Or Custom Label
- No Supplier Warranty

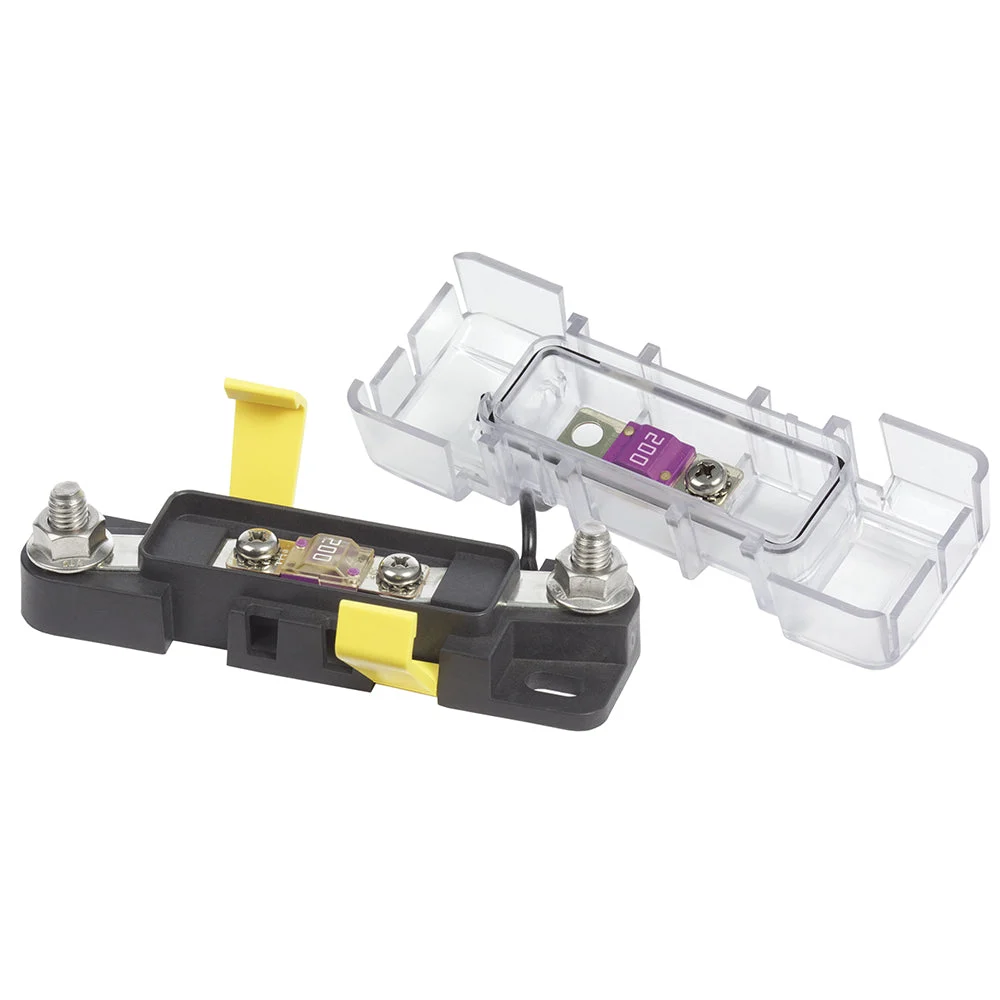

MIDI or AMI Safety Fuse Block
- Ignition protected for installation aboard gasoline or diesel powered boats
- Sealed cover protects fuses from the harsh marine environment
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- 200A maximum with 2/0 cable
- Accepts Blue Sea Systems Square Format standard or custom label
- Fuses sold separately
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Blue Sea Systems safety fuse box, MIDI or AMI fuse, max. 200A, with 2/0 cable. A spark-proof fuse box for high current circuits. The fuse box is effective…
SKU: NVN-40599
MPN: 7720-BSS
UPC: 632085077204
