Description

Fuse blocks loaded with fuses protect the wire in electrical circuits. Blue Sea Systems broad selection of fuse blocks include single and consolidated fuse blocks.

Blue Sea 7721BSS Attributes

• Power Rating: 32 Volt/ 300 Ampere
• Type: Installation Aboard Gasoline Or Diesel Powered Boats
• Circuit Type: 8 Circuit Positions
• Fuse Type: MEGA/ AMG
• Status Indicator Type: No Status Indicator
• Cover Style: Protective Cover
• Includes Flashers: No
• Includes Fuses: No
• Includes Horn Relay: No
• Includes Mounting Brackets: No
• Includes Terminals: No

Blue Sea 7721BSS Features & Benefits

• Ignition Protected For Installation Aboard Gasoline Or Diesel Powered Boats
• Sealed Cover Protects Fuses From The Harsh Marine Environment
• Insulating Cover Satisfies ABYC And USCG Insulation Requirements
• Cover Breakouts Allow Wire Access In Any Direction
• 300 Ampere Maximum With 4/0 Cable
• Accepts Blue Sea Systems Square Format Standard Or Custom Label
• No Supplier Warranty

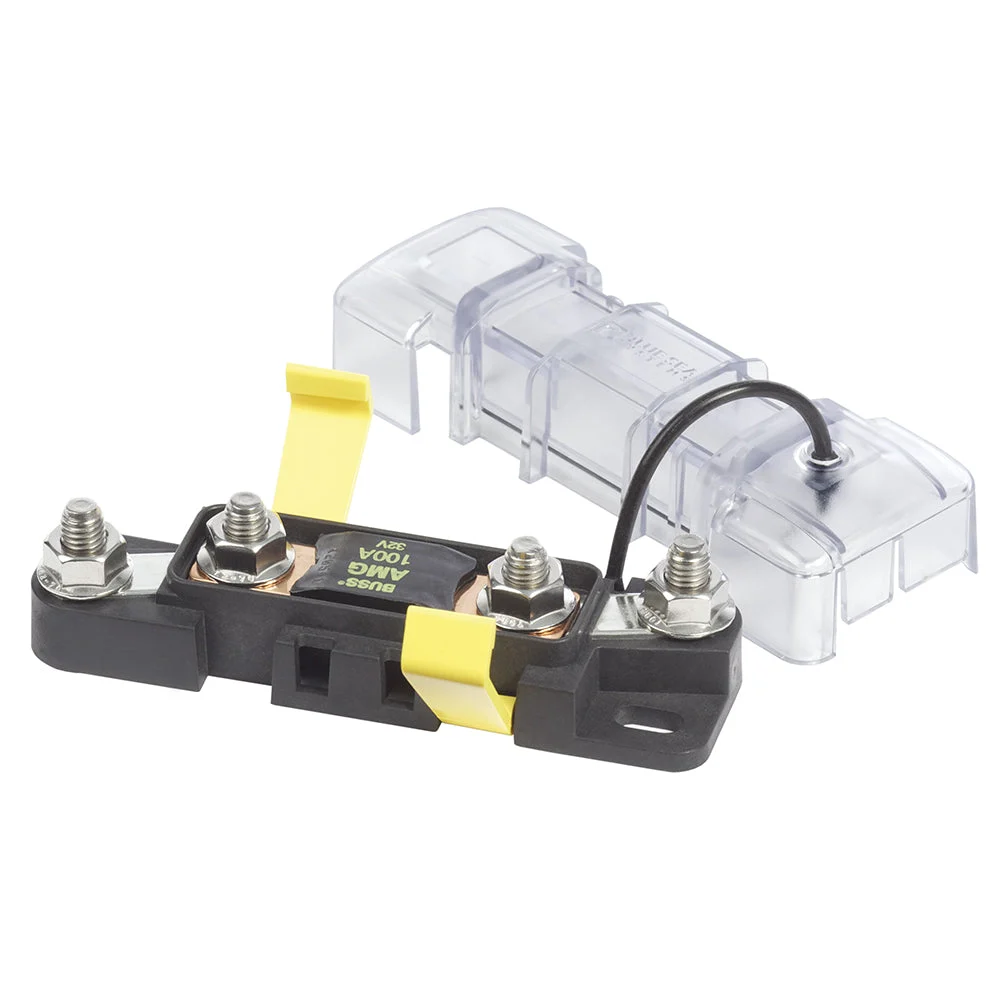

MEGA or AMG Fuse Safety Block

• Ignition protected for installation aboard gasoline or diesel powered boats
• Sealed cover protects fuses from the harsh marine environment
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• 300A maximum with 2/0 cable
• Accepts Blue Sea Systems Square Format standard or custom label
• Fuses sold separately

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Blue Sea Systems safety fuse box MEGA or AMG fuse with 2/0 cable up to 300A. A fuse box with ignition protection for high current circuits is an effective method…
  SKU: NVN-40600
  MPN: 7721-BSS
  UPC: 632085077211
