Description

Main + 20 Positions

(14) 15A Single Pole Circuit Breakers

(1) 100A C-Series Main Circuit Breaker

(1) 8248 DC Digital Multimeter w/ Alarm

White Switches
Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions
• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8″ aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included
• Includes set of 30 common Large Format Panel Labels
• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

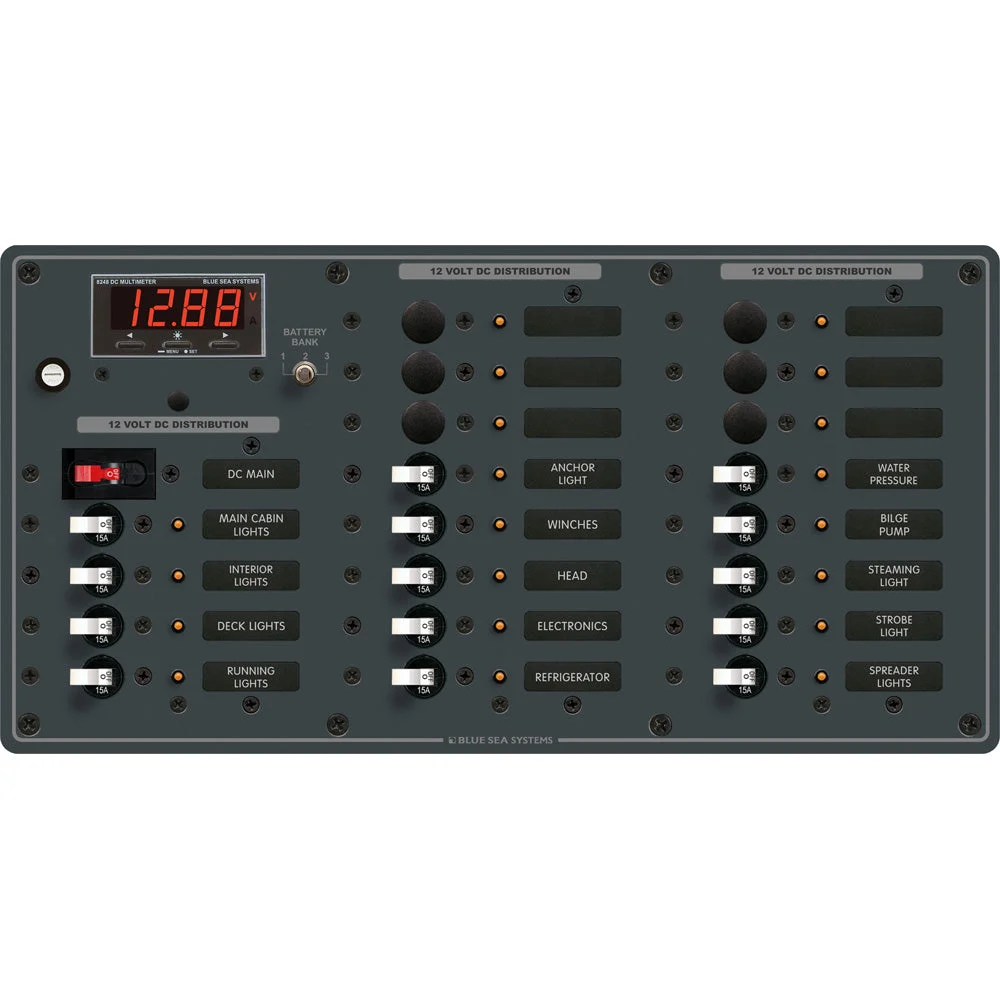

DC switchboard, MFG#8379, white toggle switch circuit breaker and digital volt/ampere meter. 1ea 100 Amp main power supply, 14ea 15 Amp branch circuit, 6ea open slot. 12 or 24 VDC. 14.75 inches (width) x 7.5 inches (height).
SKU: NVN-20818
MPN: 8379
UPC: 632085083793
