Description

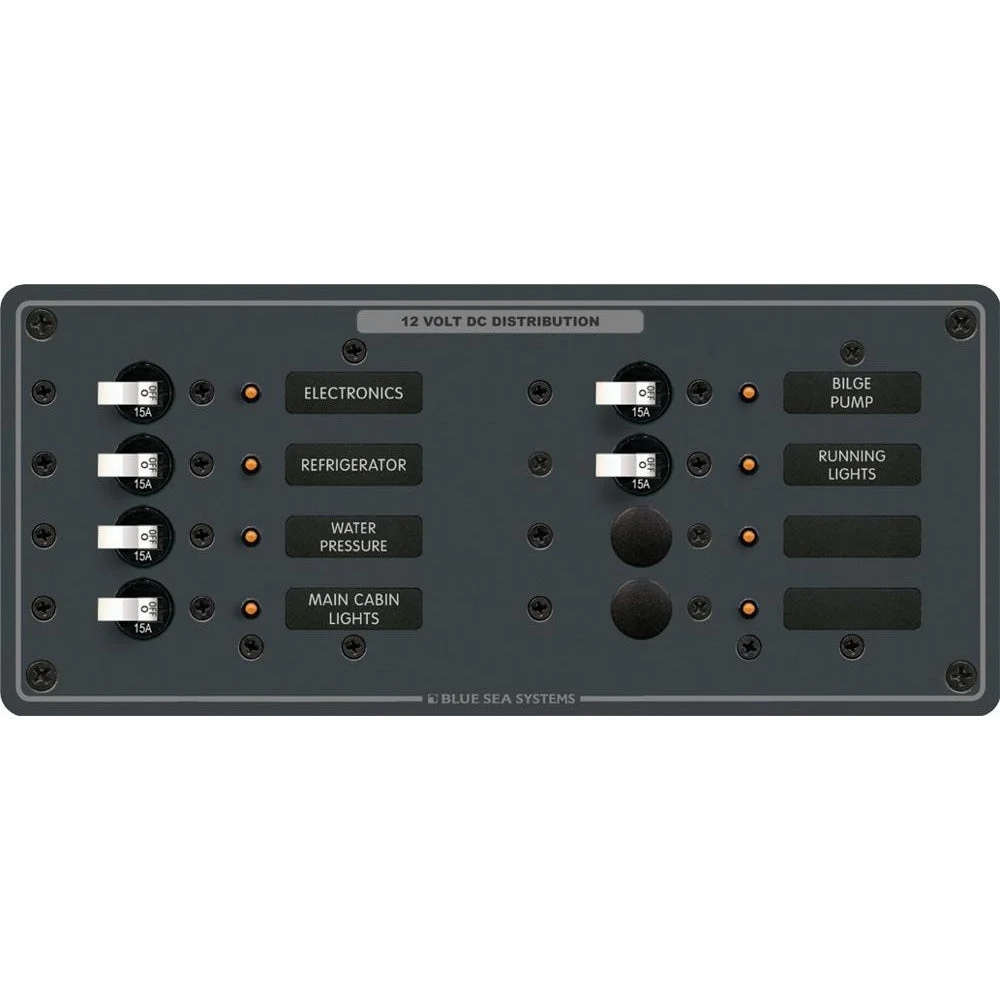

8385 DC 8 Position Horizontal
Features:

• Voltage 12 VDC/24 VDC
• Amperage 100A
• All positive, negative and grounding buses installed, fully pre-wired
• Panels with meters include toggle switch for mounting up to 3 battery banks
• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions
• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8″ aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included
• Includes set of 30 common Large Format Panel Labels
• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

“It provides overcurrent protection for your DC marine equipment. Pre-installed 15A single pole toggle switch circuit breakers. Panel is fully pre-wired with all positive, negative, and grounding buses installed. Circuit labels are backlit and LED indicators are installed in all circuit positions. Heavy, 1/8″ aluminum alloy panel has a two-part polyurethane slate gray finish and anti-corrosive undercoating. Countersunk mounting holes. Includes detailed installation instructions, cutout template, and a set of 30 large format labels. Maximum Panel Amperage: 100A. Installed Single Pole Circuit Breakers: 6 (15A). Dimension: 10.5″W x 7.5″H .”
SKU: NVN-20824
MPN: 8385
UPC: 632085083854
