Description

Switch Battery e Selector

Commonly used on small boats or vehicles where the batteries are located near the operator. Blue Sea create innovative, high quality electrical products to improve the safety, simplicity, and reliability of boating.

Blue Sea 9001EBSS Attributes

• Used To: Switch Isolated Battery Banks To All Loads/ To Combine Battery Banks To All Loads
• Number Of Position: 4
• Battery Input: 2 Batteries
• Voltage Rating: 32 Volt
• Ampere Rating: 600 Amp Intermittent Rating And 350 Amp Continuous Rating
• Color: Red
• With Alternator Field Disconnect: No
• With Ignition Protection: No

Blue Sea 9001EBSS Features & Benefits

• Tin-Plated Copper Studs For Maximum Conductivity And Corrosion Resistance
• One-Piece Terminal Stud Design Never Loosens Over Time
• One Piece Stainless Flange Nut Ensure Safe And Secure Connections
• Fits Most Standard Perko And Guest Battery Switch Hole Patterns
• Tactile Indicator Conveys Knob Position By Feel
• No Supplier Warranty

Blue Sea 9001EBSS Installation Instructions

• 9001e_web_version.pdf

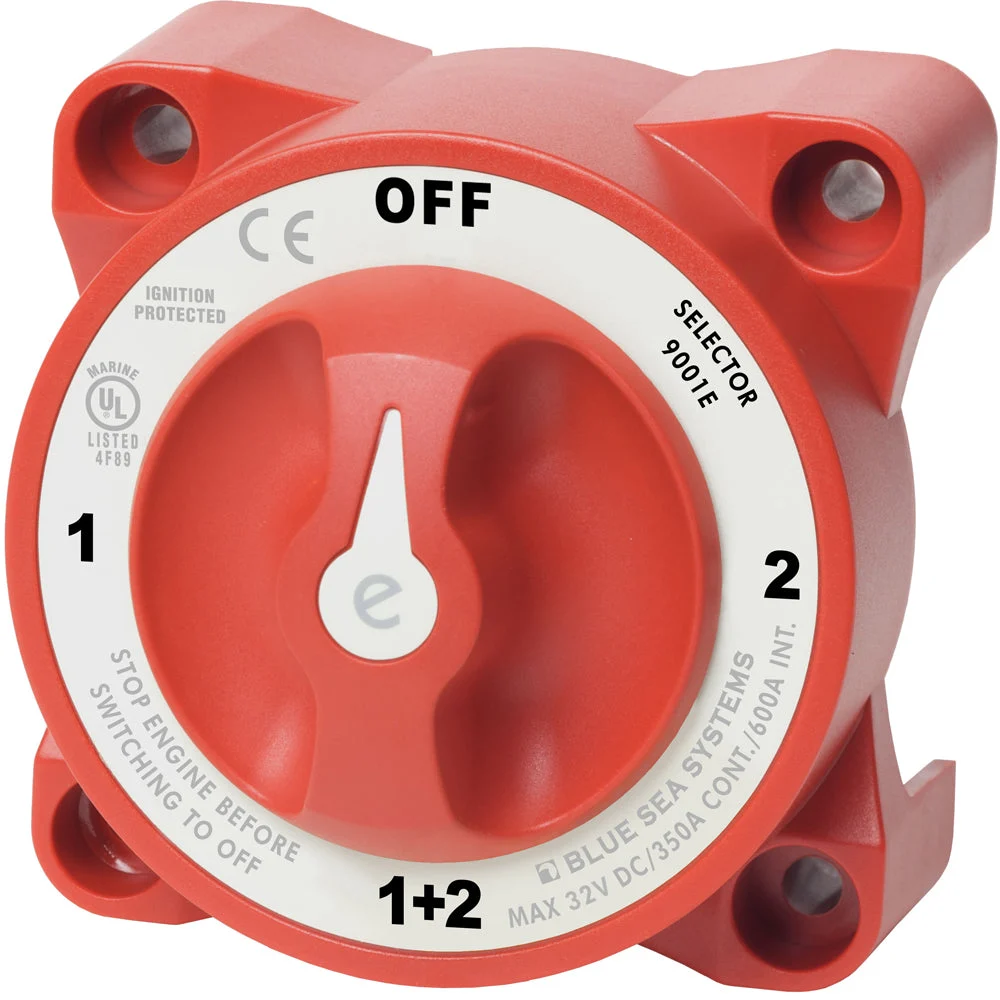

9001e e-Series Battery Switch Selector

Features:

• Make-before-break contact design allows switching between battery banks without power interruption
• CE Marked
• Ignition protected – Safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
• 7/8″ (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The 9001e e series battery switch selector adopts a break-before-make design, which can switch between battery packs without interrupting the power supply. CE marking fire protection-safety…
SKU: NVN-14580
MPN: 9001E
UPC: 632085090012
