Description

Blue Sea Systems designs and manufactures AC and DC electrical products engineered to withstand the demanding applications in Marine and Specialized Vehicle electrical systems.

Blue Sea 9002EBSS Attributes

• Used To: Switch Isolated Battery Banks To All Loads/ To Combine Battery Banks To All Loads
• Number Of Position: 4
• Battery Input: 2 Batteries
• Voltage Rating: 32 Volt
• Ampere Rating: 600 Amp Intermittent Rating And 350 Amp Continuous Rating
• Color: Red
• With Alternator Field Disconnect: No
• With Ignition Protection: No

Blue Sea 9002EBSS Features & Benefits

• Waterproof – Rated IP66 From Water Projected In Powerful Jets
• Case Design Allows Surface, Rear, Or Front Panel Mounting Options
• No Supplier Warranty

Blue Sea 9002EBSS Installation Instructions

• 9002e_web_version.pdf

9002e e-Series Battery Switch Selector with Alternator Field Disconnect

Features:

• Switches isolated battery banks to all loads or combines battery banks to all loads
• Includes AFD (Alternator Field Disconnect)
• Make-before-break contact design allows switching between battery banks without power interruption
• Ignition protected—safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting

Includes:

•  AFD (Alternator Field Disconnect)
• CE Marked
• Ignition protected – Safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
• 7/8″ (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

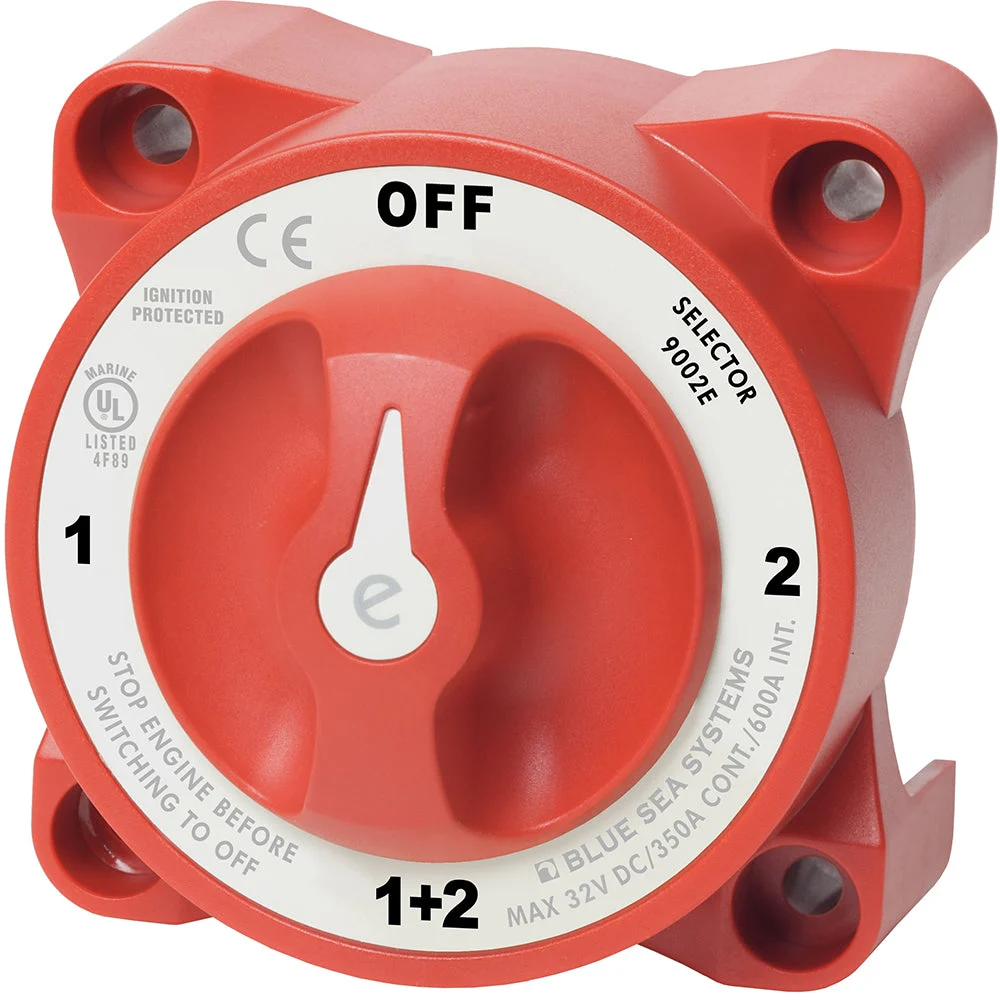

Blue Sea Systems’ E-series four-position selector switch with AFD (9002E) can switch isolated battery packs to all loads or combine battery packs to all loads. What else can…
SKU: NVN-19057
MPN: 9002E-BSS
UPC: 632085900250
