Description

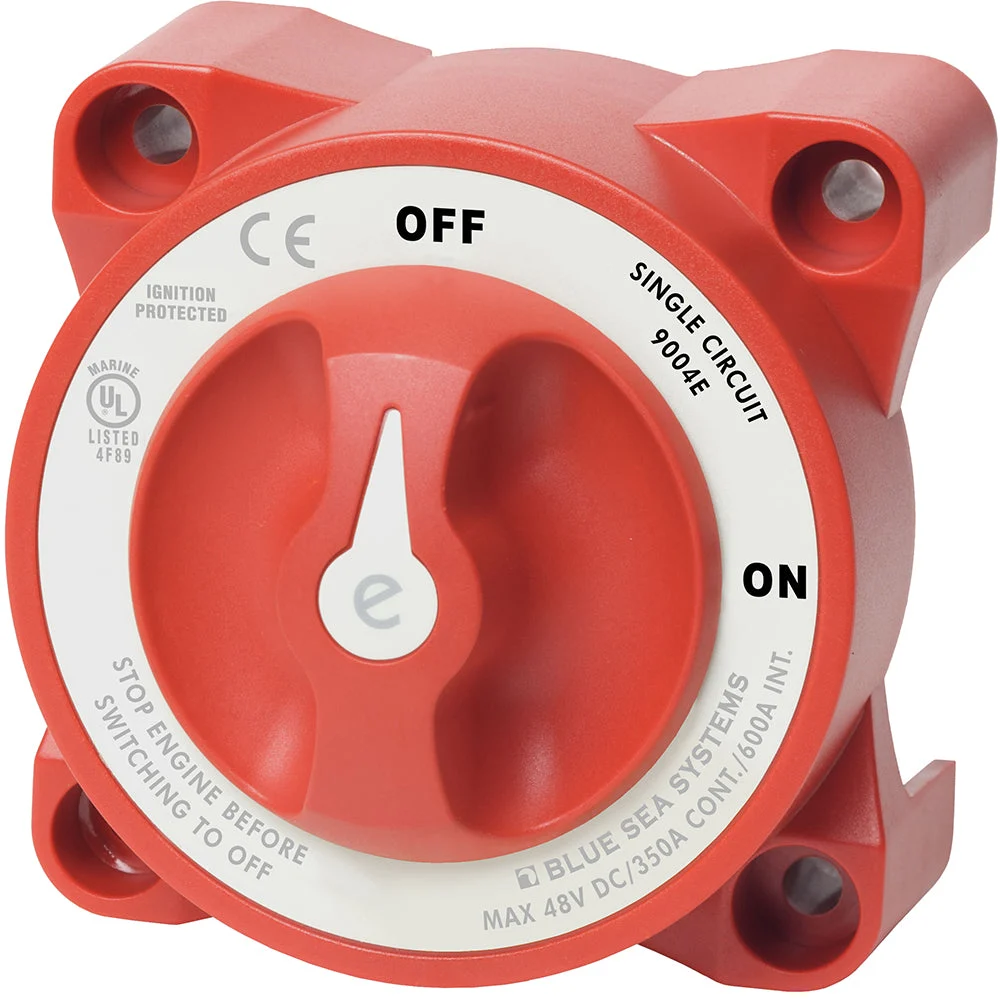

9004e e-Series Battery Switch Single Circuit ON/OFF with Alternator Field Disconnect

Features:

• CE Marked
• Ignition protected – Safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
• 7/8″ (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only
• Includes AFD (Alternator Field Disconnect)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

“These single circuit Blue Sea Systems battery switches offer 350 amps for inboard gasoline or diesel engines. These switches switch a single battery to a single load group and feature tin-plated copper studs for maximum conductivity and corrosion resistance. Accepts up to 4/0 AWG battery cables. The studs accept 3/8″ (M10) ring terminals and have a 7/8″ stud length (22 mm) that can accept multiple cable terminals. Blue Sea Systems one-piece terminal stud design never loosens over time. One-piece stainless flange nuts ensure safe and secure connections. Fits most Perko and Guest low amperage battery switch hole patterns. Case design allows surface or rear panel mounting options. Tactile indicator conveys knob position by feel. 5439 includes Alternator Field Disconnect (AFD) which protects the diodes in the alternator in the event of the switch being switched to the OFF position while the engine is running. If the AFD is not used to protect the alternator, an LED can be connected to the AFD terminals to indicate when the battery switch is in any position but OFF.”
SKU: NVN-13628
MPN: 9004E-BSS
UPC: 632085900458
