Description

Load Sensors For Standing Rigging

smartlink devices are the smallest, lightest, strongest, most versatile load sensors for your boat.

Easily added in-line of any ‘soft’ stay or sheet, from mainsheets, to code sail tack lines, to backstays and runners.

Live Data To Your Phone Or Instruments

Static & dynamic load data to your phone via the smartfittings app, or to your on-board instruments via our gateway.

Safety And Performance

Live and logged load data on any running line mean you can learn and repeat your fastest settings and preserve the integrity of rigging, avoiding any nasty surprises.

<

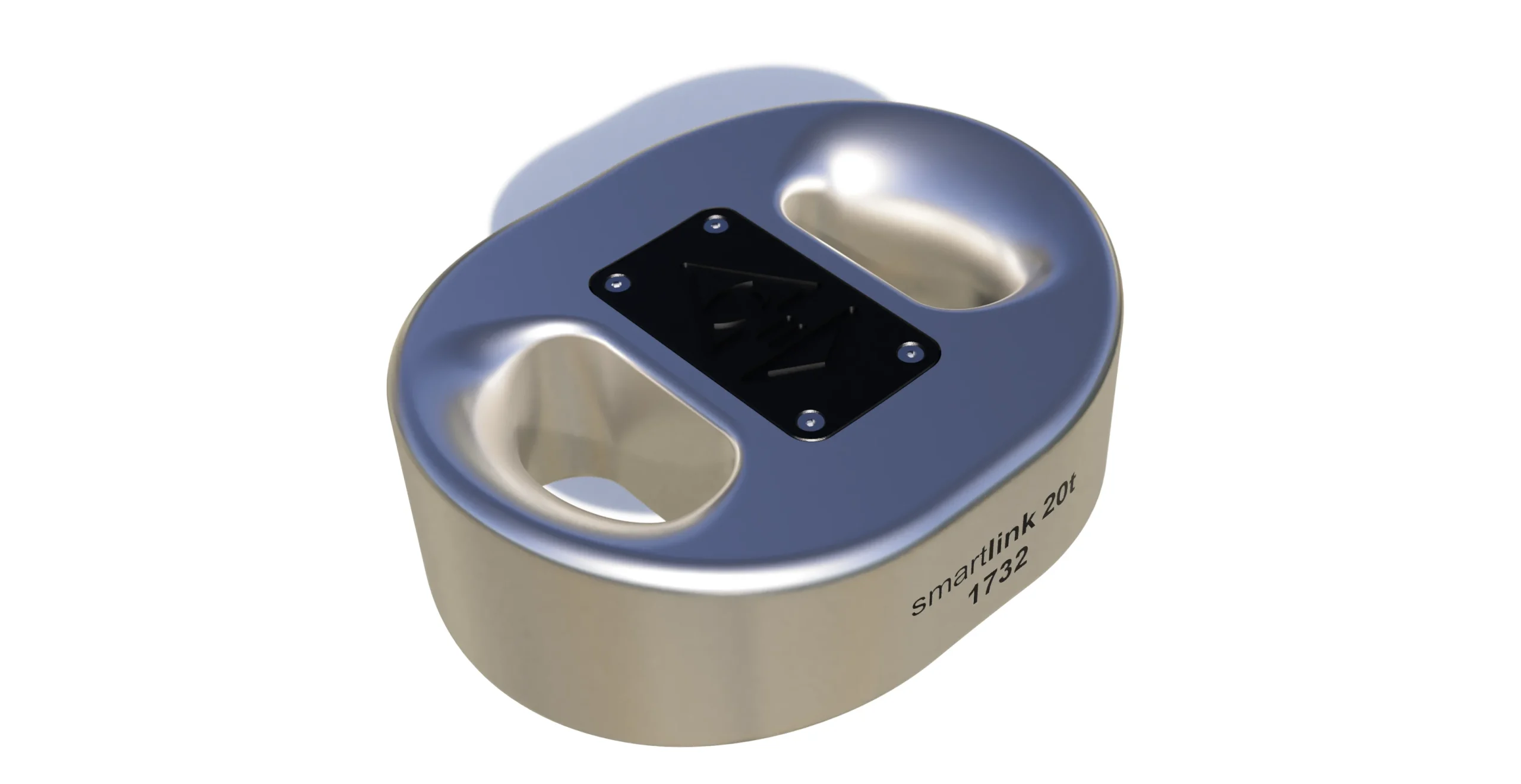

The Smallest & Lightest

smartlink compresses advanced technologies into the most compact package possible. Crafted out of Titanium (2t-20t) or Aluminum (Nano), optimised for low weight and low windage.

Strength & Durability

Built to survive the toughest ocean environment, waterproof beyond IP67 and designed with astonishing working loads, smartlink devices won’t break till far beyond their maximum working loads and are tested to destruction.

Logging

Data logged through the smartfittings manager app, ready for export to sailing analytics software.

Compatibility

Paired with our gateway, smartlink is compatible with most modern marine electronics systems. Find out more about connecting smartlink to your displays.

Accuracy

smartlink is factory calibrated for immediate use out of the box, and accurate to within 1% of maximum working load.

For Vessels From Superyachts To Kiteboards

Now available in five sizes, scaled in size for intended loads, with aperture designed for use with strops on relevant sized vessels, Superyachts to Kiteboards and everything in between.

The Latest Wireless Technology

No need for cables or wires, the device communicates with your phone via over distances of up to 15m while sailing, and with on-board instruments via our gateway over longer ranges.

Battery Life

smartlink runs on CR2032 batteries, featuring smartpower button allowing predetermined switch-off and eliminating unnecessary run-down

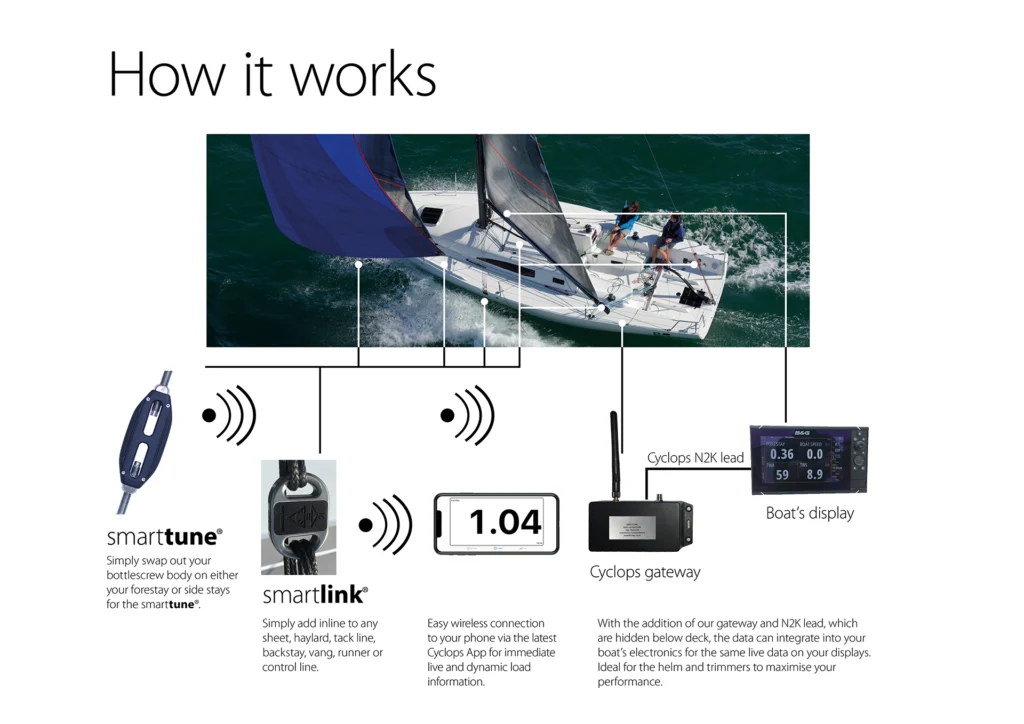

Connectivity

Our sensors feed data to your phone via the smartfittings app straight out the box, but with the addition of a Cyclops Marine Gateway are compatible with most modern marine displays.

We recommend using a gateway and on-board displays for communication over ranges above 15metres.

Cyclops Marine Gateway

Compatible With Most Modern Marine Electronics

Plugging directly into your existing displays or electronics configuration, our Gateway installs below deck (within 8m of load sensors) & communicates with a range of on-board systems.

It receives signals from sensors and converts them into useful second-by-second information at sailor’s fingertips.

• Communicates with NKE, NMEA 0183 and NMEA 2000 devices (currently excludes Raymarine).
• Enables Cyclops devices to display load data on most modern on-board electronics (see below for full compatibility).
• Up to 50 sensors can be connected, you can view sensors from all over the boat in your on-board displays.
• Splash and dustproof to IP54 rating, mounted below deck or on the forward bulkhead.
• Data can be downloaded and exported for use in sailing analytics software.
• For use on yachts with carbon and conventional hull materials.
• Connect to the Gateway’s Wi-Fi from your phone to easily set-up.
• User-friendly interface.

Dome Antenna (With 1m Cable)

We recommend the addition of a Dome Antenna if you are planning to install your Gateway more than 8m from load sensor(s), or if your boat’s hull construction is primarily carbon fibre (as carbon fibre is a very effective blocker of wireless signals).

The cable plugs into your Gateway below deck, allowing the antenna itself to be installed on-deck in line-of-sight of sensors, for unobstructed connection.

Compatibility

Paired With A Gateway The Smart Range Has Proven Compatibility With:

B&G	Sailmon	Garmin	nke	Yacht Devices	Expedition marine
Chartplotters, Displays & Data Loggers	Vulcan, Zeus³, Triton², Nemesis	Element 7, 10, Ink	GPSMAP, GMI20, GNX120, GNX130	Multigraphic	Voyage Recorder YDVR-04	N/A
Processors	H5000	E4	N/A	N/A	N/A	N/A
Software	Deckman	NavDesk	N/A	N/A	N/A	Expedition Navigation & Sailing Software

N/A = No Applicable product from this brand.

If your system is not listed, please contact us and we may be able to provide a solution. We are working hard to add to our list of compatible systems.

Smartfittings Manager App

The Smartfittings App Free on iOS and Android, click below or scan QR code to download

Multiple Sensors Display multiple sensors (up to 16 per page) simultaneously.

Simple, Flexible Displays Custom, easy to read displays with large numbers for in-race convenience.

Logging Logging feature integrates with GPS to take post race/training analysis to new levels.

Loadtalk Load data can be relayed to you via headphones at preset intervals.

Transferable Data Data ready for export to sailing analytics software

The Smartlink Nano In Testing
