Description

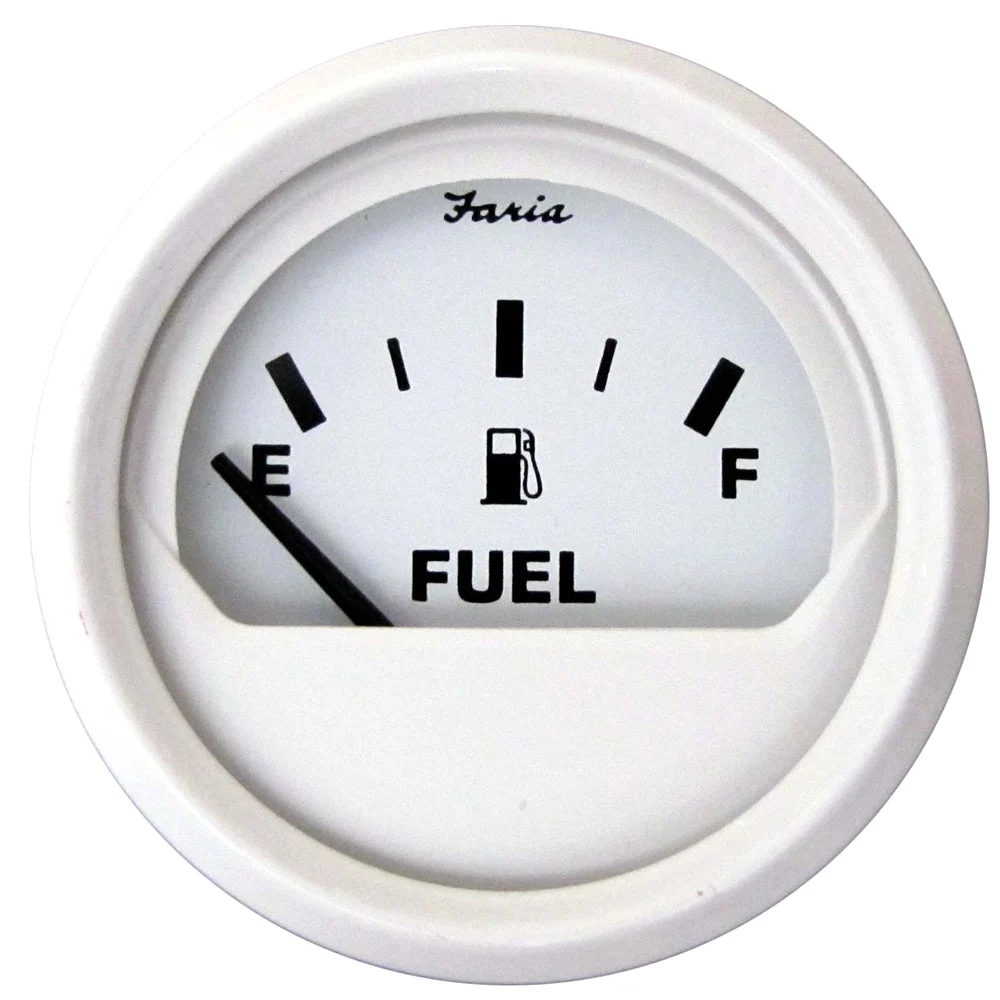

Dress White 2″ Fuel Level Gauge (E-1/2-F)

Perimeter-lighted White dial with bold Black graphics, White aluminum bezel, contoured Black pointer and flat glass lens.

Fuel Level gauge operates by sending a low amperage current through the gauge’s meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc…

As the sender’s resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.

2″ – Hole Size: 2.0625″ (53mm)

Specifications:

• 240 to 33 OHM
• Anti-scratch glass lens
• 12 VDC negative ground
• Can be adapted for 24 VDC systems

Factory P/N GP9389

*Sold as an Individual

**Gauge Cover not Included

Wearing white 2 Fuel level gauge (E-1 / 2-F) 2-hole size: 2.0625 (53mm) The working principle of the fuel level gauge is to send a low amperage current to the ground through the level gauge and pass it through. ..
SKU: NVN-54668
MPN: F13101
UPC: 759266131019
