Description

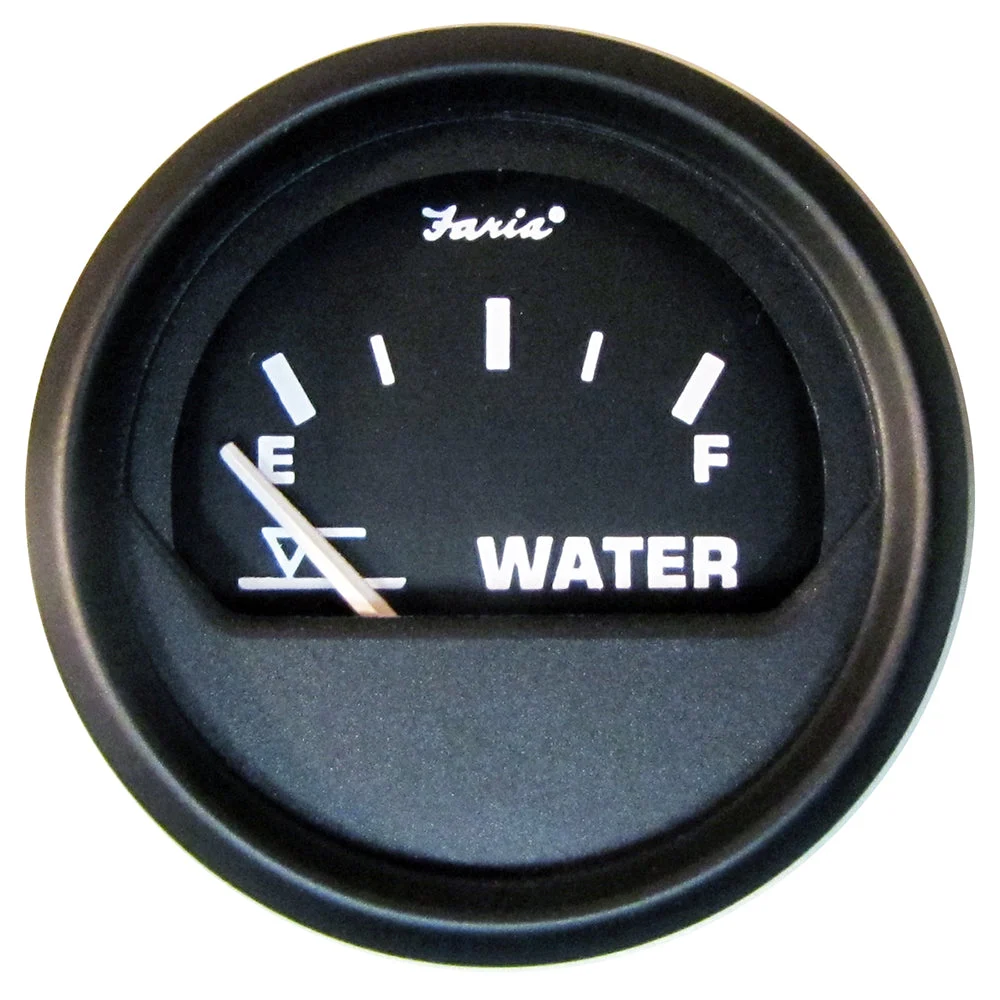

Euro Black 2″ Tank Level Gauge – Potable Water

Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.

Level gauge operates by sending a low amperage current through the gauges meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc…

As the sender’s resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level.

2″ – Hole size: 2.0625″ (53mm)

Specifications:

• Anti-scratch glass lens
• 12 VDC negative ground
• Perimeter-lighted Black dial
• Can be adapted for 24 VDC systems

Factory P/N GP9324

*Sold as an Individual

**Gauge Cover not Included

Euro-Black 2-inch water tank level gauge-black dial with drinking water peripheral lighting, with eye-catching white graphics, black aluminum frame, contoured white pointer and flat glass lens. The level gauge sends a…
SKU: NVN-80157
MPN: 12830
UPC: 759266128309
