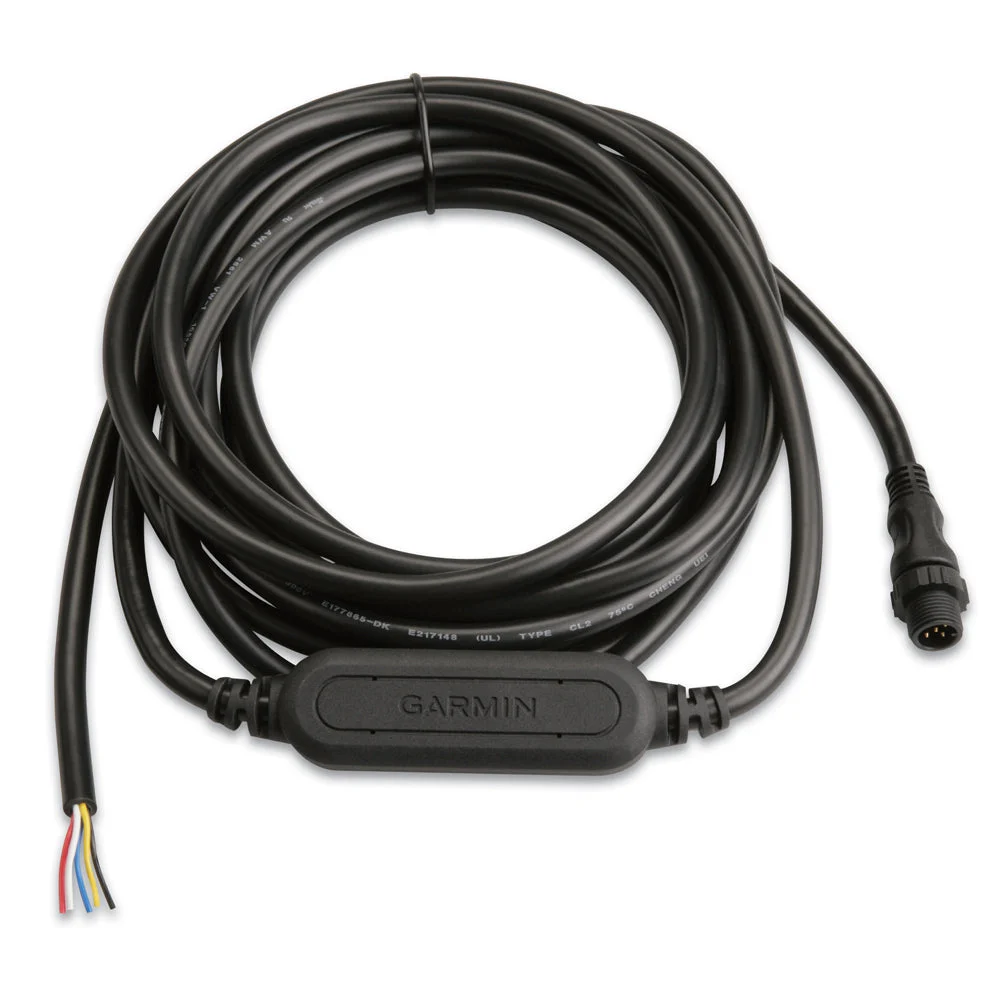

GRA10, Rudder Angle Adapter

Imagine breathing new life into your boat’s aging helm setup without ripping out every gauge or sensor. The Garmin GRA 10 Rudder Angle NMEA 2000 Analog Adapter does just that, bridging the gap between trusty old analog rudder feedback and the crisp, network-driven world of modern marine electronics. Boaters who’ve been sailing with traditional potentiometer-style rudder sensors for years know the frustration of incompatible displays and missed data integration. This compact adapter steps in as the hero, seamlessly converting those analog signals into reliable NMEA 2000 data packets ready for your Garmin chartplotters, multifunction displays, or autopilot systems.

Why Your Vessel Needs the GRA 10 Adapter

In the marine world, rudder position data isn’t just nice to have—it’s essential for precise autopilot control, safety maneuvers, and performance monitoring. Without it on your NMEA 2000 backbone, you’re flying half-blind during long passages or tight docking. The GRA 10 changes that by plugging directly into your existing rudder angle sensor (typically a simple pot wired to your helm). It then broadcasts the info across the network, letting you glance at real-time rudder angles on devices like the Garmin GMI 20, GPSMAP series, or GHC autopilots. No more guesswork; just accurate feedback that enhances every voyage.

Boat owners upgrading from legacy systems rave about the simplicity. One offshore cruiser shared how it revived a 15-year-old setup, syncing rudder data with wind instruments and engine telemetry for a fully unified dashboard. It’s not about replacing gear—it’s about smart evolution that saves time, money, and frustration.

How the Adapter Transforms Analog to Digital

At its core, the GRA 10 is a plug-and-play signal conditioner. Connect your analog rudder sensor’s output wires to the adapter’s terminals, hook it to your NMEA 2000 drop cable (included at 16 feet for flexible routing), and power draws straight from the bus—no extra batteries or fuss. The device samples the varying voltage from the sensor as the rudder turns, digitizes it, and pushes PGN 127245 (Rudder) messages onto the network.

Pro tip for installers: Calibrate during setup by swinging the rudder full port to starboard via your Garmin display’s configuration menu. This ensures zero-point accuracy, critical for autopilot gains. Waterproof pigtails and rugged construction mean it thrives in engine rooms or lazarettes, shrugging off spray and vibration.

Key Technical Specs at a Glance

• Dimensions: Ultra-compact at 31/32″ W x 43/64″ H x 3 3/32″ L (24.7 x 17.0 x 78.6 mm)—fits anywhere.
• Cable Length: 16 ft. (4.9 m) for easy backbone integration.
• Operating Temperature: -15°C to 70°C (5°F to 158°F)—handles extremes from tropics to tundras.
• Compass Safety: Just 2 inches (5 cm) minimum distance.
• Power Draw: 9-16 VDC from NMEA 2000 bus, 1.1W max, LEN 2 (100 mA)—network-friendly.
• Interface: Pure NMEA 2000—no proprietary headaches.

Real-World Benefits for Boaters

Beyond specs, the GRA 10 delivers tangible wins. Autopilot users gain tighter tracking with true rudder feedback, reducing wear on hydraulic rams. Race teams monitor helm response for tactical edges, while cruisers enjoy peace of mind with networked alerts if the rudder hangs up. It’s a low-cost entry to “glass cockpit” bliss, compatible with most analog sensors outputting 0-5V or 0-30V ranges—check your pot’s specs for a perfect match.

For multi-station helms, it shines: One adapter per sensor keeps data consistent across flybridge and salon displays. Pair it with Garmin’s ecosystem, and you’ve got a scalable network that grows with your boat.

Frequently Asked Questions

What types of analog rudder sensors work with the Garmin GRA 10?

It supports most standard marine potentiometer sensors outputting linear voltage (like 0-5VDC or similar). Verify your sensor’s voltage range matches the 9-16V input tolerance for best results.

Do I need to replace my existing rudder feedback pot?

No! The GRA 10 reuses your current analog pot, converting its signal without any mechanical changes.

How do I integrate it with my Garmin autopilot?

Connect to your NMEA 2000 network, then use the autopilot’s setup wizard to detect and calibrate the rudder feedback PGN. It auto-populates on compatible GHC units.

Is the GRA 10 waterproof for open installations?

Yes, with an IPX7-equivalent rating on connectors and housing, it’s built for harsh marine environments but mount it away from constant immersion.

Can it share data with non-Garmin NMEA 2000 devices?

Absolutely—standard NMEA 2000 PGNs mean compatibility with Raymarine, Simrad, Lowrance, and others on the bus.

What’s the power consumption impact on my network?

Minimal at 100mA (LEN 2), it won’t strain even basic 3-amp backbones.

How long is the included cable?

16 feet (4.9 meters), plenty for most routing from sensor to drop.

Ready to digitize your helm? The Garmin GRA 10 isn’t just an adapter—it’s your ticket to smarter sailing.

Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.

Garmin 101132400 Attributes

• Interface: NMEA 2000
• Voltage Rating: 9 To 16 Volt
• With Cable: Yes

Garmin 101132400 Features & Benefits

• With The GRA 10 Rudder Angle Analog Adapter Aboard Your Vessel, You Can Give New Life To Your Old Gauges By Making The Transition From Analog To Digital
• Simple-To-Install Adapter Takes The Data Generated By Traditional Analog Gauges And Converts The Data Into A NMEA 2000® Signal
• With The Garmin GRA 10 Adapter, You Can Convert Analog Information Provided Via The Rudder-Angle Sensor On Your Boat To Your NMEA 2000 Network
• GRA 10 Allows You To Observe Rudder-Angle Information On Compatible Garmin Display Devices Connected To Your NMEA 2000 Network
• Limited 1 Year Warranty

Garmin 101132400 Installation Instructions

• GRA10RudderAngleAdapter_InstallationandConfigurationInsturctions.pdf

Garmin 101132400 Warranties

• garmin-marine-warranty-policy.pdf

The new NMEA 2000 analog adapters are the perfect accessories to bring any helm into the digital age. Simple to install and easy to set up, the NMEA 2000 adapters take signals generated by traditional analog gauges and sensors and convert that data into NMEA 2000 format. The data can then be broadcast over NMEA 2000 protocol to the Garmin GMI 10 multifunction instrument display. The combination of these adapters with a Garmin GMI 10 will transform even the most out-of-date dashboard into a glass, digital helm.
With the help of the ship’s GRA 10 rudder angle analog adapter, you can extend the life of your old instruments by transitioning from analog to digital. This simple…
SKU: NVN-37775
MPN: 010-11324-00
UPC: 753759098469
