Description

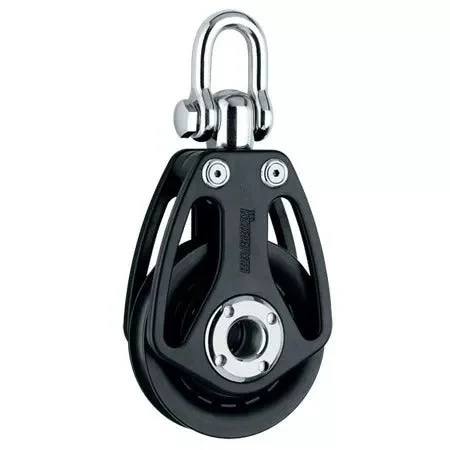

Harken 150mm Aluminum Swivel Block
Sideplates are constructed of hardcoat-anodized 6061-T6 aluminum for strength and corrosion resistance. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Technical Description
| Sheave Ø (mm) | 150 mm |
| Sheave Ø (in) | 5 15/16 in |
| Length (mm) | 327 mm |
| Length (in) | 12 7/8 in |
| Weight (kg) | 3.51 kg |
| Weight (lb) | 7.74 lb |
| Maximum line Ø (mm) | 25 mm |
| Maximum line Ø (in) | 1 in |
| Maximum working load (kg) | 8800 kg |
| Maximum working load (lb) | 19405 lb |
| Breaking load (kg) | 17600 kg |
| Breaking load (lb) | 38810 lb |
